76 (0350009) - Cub Cadet Lawn Tractor Starting-For Recoil Start Parts Diagram

Lawn Tractor

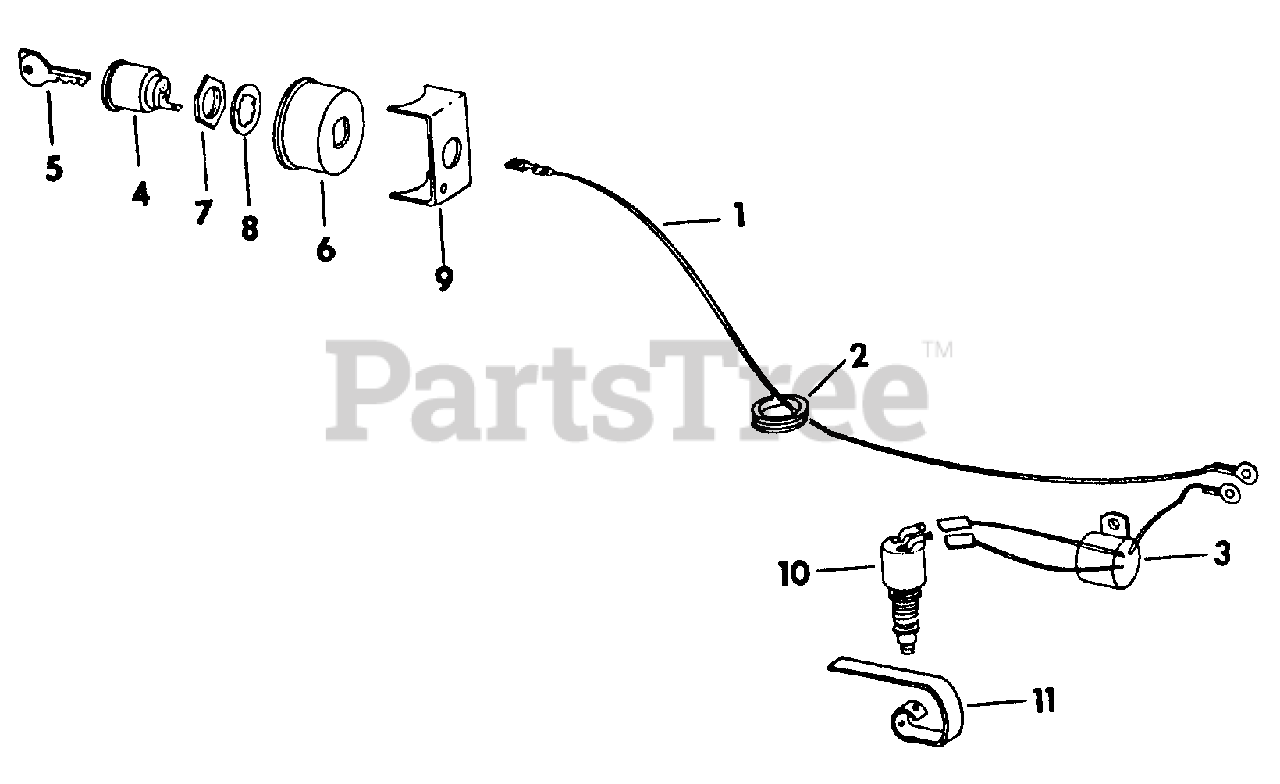

Starting-For Recoil Start Parts Diagram

  • Title

1

~NLA

Cable Assy, Magneto Ground

$

$

Not available

2

Cub Cadet 735-3009

Grommet

$

$

Not available

3

Cub Cadet IH-549945-R1

Module Assy, Control

$

$

Not available

Screw, 8-32 X 1/2 Znd Truss Hd

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Washer, No. 8 Int-Ext Tooth Lock

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 712-0142

Nut, No. 8-32 Znd Hex Mach Screw

$4.99

$

In Stock, only 3 left!

0

4

Cub Cadet IH-379593-R92

Switch, Ignition Key

$

$

Currently unavailable

5

Cub Cadet IH-382458-R2

Key, Ignition Switch
(Superseded to IH-131313-C2)

$12.99

$

In Stock, only 4 left!

0

6

Cub Cadet IH-402238-R1

Socket, Ignition Switch

$

$

Currently unavailable

7

Cub Cadet IH-365502-R1

Nut, Ignition Switch

$12.99

$

Usually ships in 3-6 days

0

8

Cub Cadet IH-375431-R1

Washer, Ignition Switch

$12.99

$

In Stock, only 1 left!

0

9

Cub Cadet IH-402239-R1

Retainer, Ignition Switch

$

$

Not available

10

Cub Cadet 725-3038

Switch Assy, Neutral Starting
(Superseded to 925-3038)

$85.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 732-3024

Spring, Neutral Start

$

$

Not available

Cub Cadet 715-0247

Pin, 3/16 X 1 Med Coiled Spring
(Superseded to 915-0247)

$

$

Not available
