76 (0350010) - Cub Cadet Lawn Tractor Service Engines Parts Diagram

Lawn Tractor

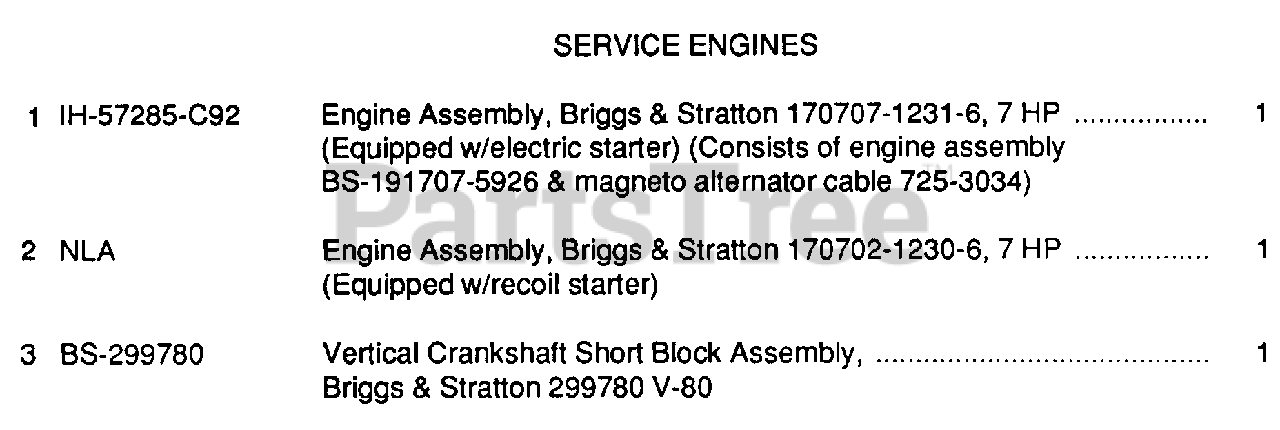

Service Engines Parts Diagram

  • Title

1

Cub Cadet IH-57285-C92

Engine Assembly, Briggs & Stratton 170707-1231-6, 7 HP

Note: (Equipped w/electric starter) (Consists of engine assembly BS-191707-5926 & magneto alternator cable 725-3034)

$

$

Currently unavailable

2

~NLA

Engine Assembly, Briggs & Stratton 170702-1230-6, 7 HP

Note: (Equipped w/recoil starter)

$

$

Not available

3

Cub Cadet BS-299780

Vertical Crankshaft Short Block Assembly

Note: Briggs & Stratton 299780 V-80

$

$

Currently unavailable
