76-42ST01 - Toro 42" Snow Thrower Attachment (1977) Snowthrower (vehicle Identification Number 76-42st01) 2 Parts Diagram

42" Snow Thrower Attachment

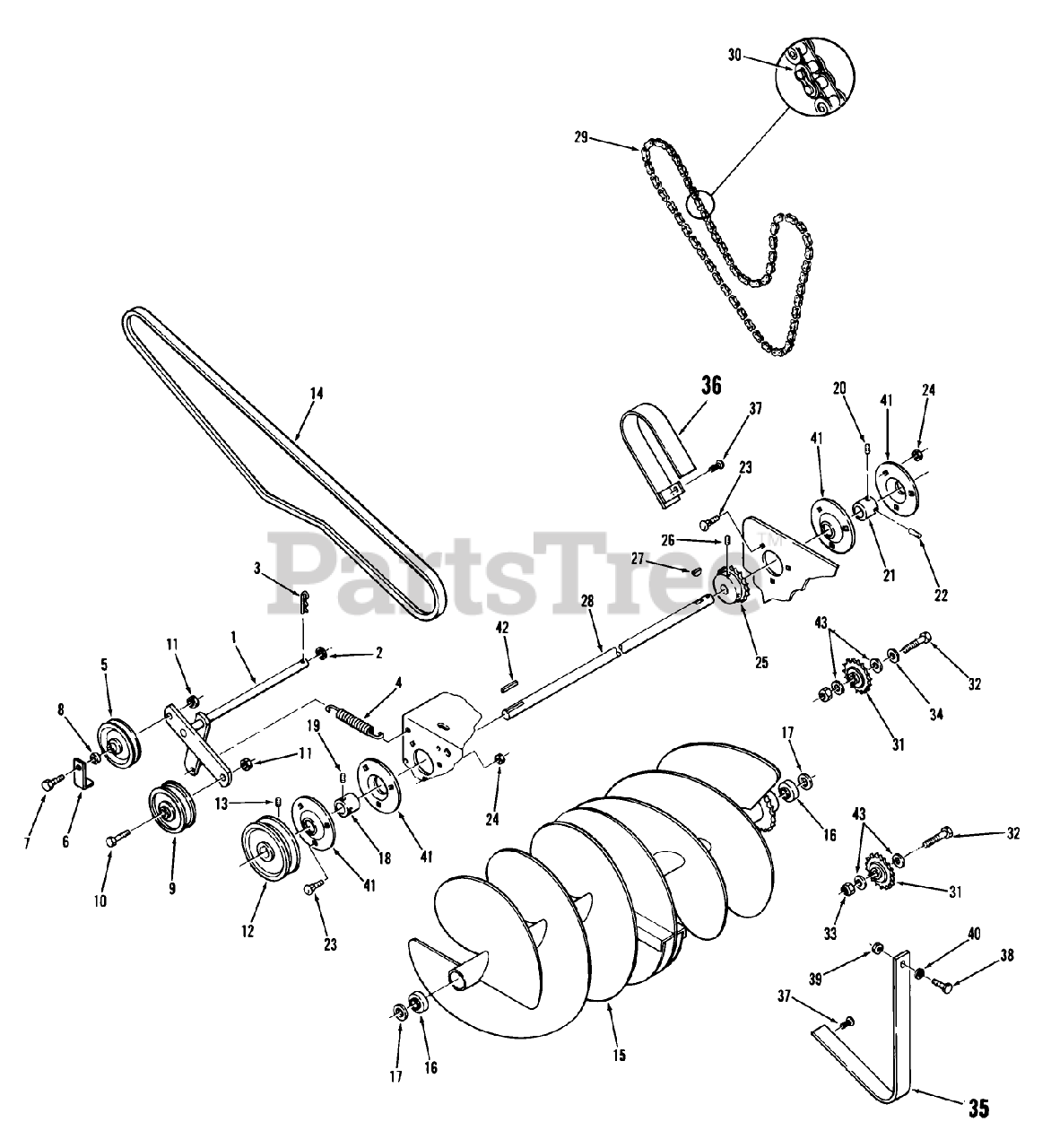

Snowthrower (vehicle Identification Number 76-42st01) 2 Parts Diagram

  • Title

1

Toro 9596

DISCONTINUED

$

$

Not available

2

Toro 920011

See Supercession: 3256-26
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

3

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 5

0

4

Toro 6651

SPRING *R

$28.99

$

In Stock, only 2 left!

0

5

Toro 7451

See Supercession: 95-7668
(Superseded to 95-7668)

$29.99

$

In Stock, only 4 left!

0

6

Toro 7450

See Supercession: 7450-01
(Superseded to 7450-01)

$

$

Not available

7

Toro 908037

See Supercession: 323-9
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

8

Toro 104662

SPACER

$9.49

$

In Stock, Qty 16

0

9

Toro 6719

See Supercession: 92-7101
(Superseded to 92-7101)

$45.99

$

In Stock, only 2 left!

0

10

Toro 908036

See Supercession: 323-8
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

11

Toro 915663

See Supercession: 3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

12

Toro 8158

See Supercession: 88-2190
(Superseded to 88-2190)

$178.99

$

Usually ships in 3-6 days

0

13

Toro 909862

See Supercession: 3246-2
(Superseded to 3246-2)

$0.99

$

In Stock, Qty 10

0

14

Toro 9750

V-BELT

$62.99

$

In Stock, only 2 left!

0

15

Toro 4467

DISCONTINUED
(Superseded to 105-1478)

$

$

Not available

16

Toro 101480

BEARING-BALL

$64.99

$

In Stock, only 3 left!

0

17

Toro 920015

See Supercession: 3256-28
(Superseded to 3256-28)

$3.99

$

In Stock, Qty 20+

0

18

Toro 101702

See Supercession: 107743
(Superseded to 107743)

$201.99

$

Usually ships in 3-6 days

0

19

Toro 909862

See Supercession: 3246-2
(Superseded to 3246-2)

$0.99

$

In Stock, Qty 10

0

20

Toro 909963

DISCONTINUED

$

$

Not available

21

Toro 101782

See Supercession: 107744
(Superseded to 107744)

$

$

Not available

22

Toro 933216

PIN-ROLL, SPIROL

$3.99

$

In Stock, only 1 left!

0

23

Toro 900037

See Supercession: 3230-1
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

24

Toro 915112

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 20+

0

25

Toro 6415

SPROCKET

$149.99

$

Usually ships in 3-6 days

0

26

Toro 909848

See Supercession: 3245-32
(Superseded to 3245-32)

$5.99

$

In Stock, only 2 left!

0

27

Toro 937014

Key
(Superseded to 3257-5)

$6.49

$

In Stock, Qty 19

0

28

Toro 103526

SHAFT

$

$

Not available

29

Toro 6416

CHAIN

$245.99

$

In Stock, only 1 left!

0

30

Toro 6392

See Supercession: 2710-11
(Superseded to 2710-11)

$6.99

$

Usually ships in 3-6 days

0

31

Toro 2174

See Supercession: 93-1614
(Superseded to 93-1614)

$

$

Not available

32

Toro 908060

See Supercession: 325-7
(Superseded to 325-7)

$2.49

$

In Stock, Qty 11

0

33

Toro 915115

See Supercession: 3296-23
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

34

Toro 6417

SPACER

$

$

Not available

35

Toro 6418

DISCONTINUE

$

$

Not available

36

Toro 2162

DISCONTINUED

$

$

Not available

37

Toro 1391

DISCONTINUED

$

$

Not available

38

Toro 908002

See Supercession: 321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

39

Toro 915968

See Supercession: 32149-2
(Superseded to 32149-2)

$2.99

$

In Stock, Qty 20+

0

40

Toro 920037

DISCONTINUED

$

$

Not available

41

Toro 100906

FLANGE

$28.99

$

Usually ships in 3-6 days

0

42

Toro 1005

See Supercession: 5-1077
(Superseded to 5-1077)

$7.49

$

In Stock, only 2 left!

0

43

Toro 920011

See Supercession: 3256-26
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0
