76-48SX01 - Toro 48" Snow Thrower Attachment (1977) 48" SNOWTHROWER (VEHICLE IDENTIFICATION NUMBER 76-48SX01) Parts Diagram

48" Snow Thrower Attachment

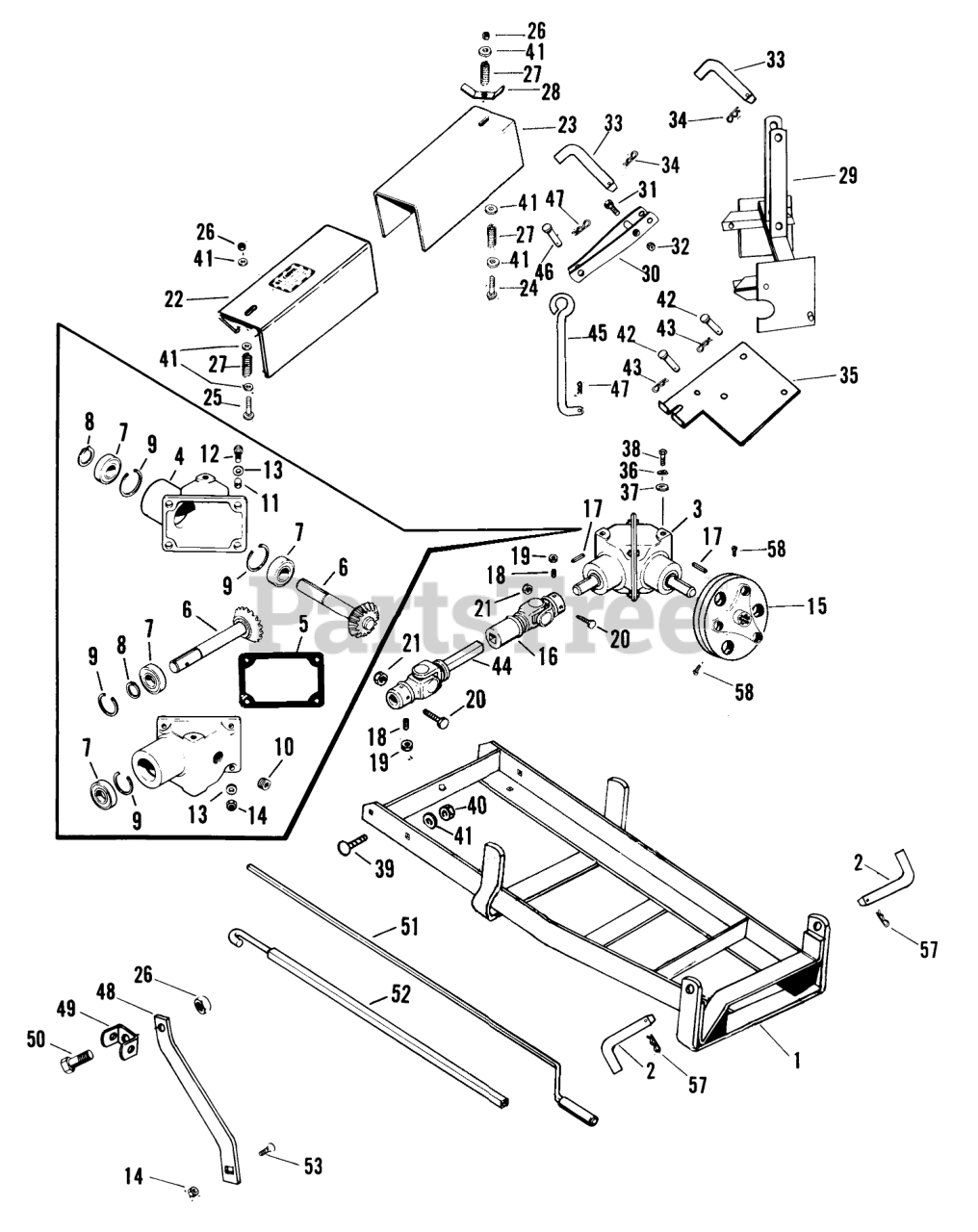

48" SNOWTHROWER (VEHICLE IDENTIFICATION NUMBER 76-48SX01) Parts Diagram

  • Title

1

Kohler 200407

Mounting Frame

$

$

Not available

2

Kohler 200408

Pin
(Superseded to 25 757 03)

$

$

Not available

3

Kohler 200144

Assembly-Gearbox

$

$

Not available

4

Toro 200145

Gearbox Case Half

$

$

Not available

5

Toro 200146

Gasket

$

$

Not available

6

Kohler 200147

Assembly-Shaft & Gear

$

$

Not available

7

Kohler 200119

BEARING-GEAR BOX

$

$

Not available

8

Toro 200148

RING-SNAP

$

$

Not available

9

Kohler 200118

Ring-Snap

$

$

Not available

10

Kohler 200149

PLUG PIPE

$

$

Not available

11

Toro 200150

BUSHING

$

$

Not available

12

Toro 908020

Bolt
(Superseded to 322-6)

$3.99

$

In Stock, Qty 20+

0

13

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

14

Toro 915972

Keps Nut 5/16-18

$

$

Not available

15

Kohler 200419

Flex Coupling

$

$

Not available

16

Toro 200152

Slip Assembly-Female End

$

$

Not available

17

Toro 200122

Key

$

$

Not available

18

Toro 909879

Set Screw 3/8-16 x 5/8

$

$

Not available

19

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

20

Toro 908010

HEX HD CAP SCREW -4

$0.99

$

In Stock, Qty 7

0

20

Toro 908058

Bolt
(Superseded to 325-5)

$1.49

$

In Stock, Qty 6

0

21

Toro 200133

NUT

$

$

Not available

22

Kohler 200409

PTO Cover (Top)

$

$

Not available

23

Kohler 200410

PTO Cover (Bottom)
(Superseded to 200410-S)

$

$

Not available

24

Toro 908041

Bolt
(Superseded to 323-13)

$1.99

$

In Stock, Qty 12

0

25

Toro 180124

Bolt-3/8-16 x 1 1/4

$

$

Currently unavailable

26

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

27

Kohler 200411

SPRING

$

$

Not available

28

Kohler 200412

Wing Bracket

$

$

Not available

29

Kohler 200413

Gearbox MountingBracket

$

$

Not available

30

Toro 200414

Bell Crank Assembly

$

$

Not available

31

Toro 908067

Bolt 1/2-13 x 3 1/2

$

$

Not available

32

Toro 915115

Eslok Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

33

Kohler 200415

Pin

$

$

Not available

34

Kohler 200160

Pin

$

$

Not available

35

Kohler 200416

Gearbox Mounting Plate
(Superseded to 41 100 01-S)

$

$

Not available

36

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 14

0

37

Toro 200134

WASHER

$

$

Not available

38

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

39

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 20+

0

40

Toro 915974

NUT

$

$

Not available

41

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

42

Kohler 200417

Pin

$

$

Not available

43

Kohler 200418

Pin
(Superseded to 200418-S)

$33.99

$

Usually ships in 2-5 days

0

44

Kohler 200163

Slip Assy.-Male End

$

$

Not available

45

Kohler 200420

Pin
(Superseded to 41 100 01-S)

$

$

Not available

46

Toro 200421

Pin

$

$

Not available

46

Toro 915435

Lock Nut 5/16-18

$

$

Currently unavailable

47

Kohler 200160

Pin

$

$

Not available

48

Kohler 200422

Crank Rod Support

$

$

Not available

49

Kohler 200423

Crank Rod Guide
(Superseded to 200423-S)

$

$

Not available

50

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

51

Toro 200425

Crank Rod

$

$

Not available

52

Toro 200169

Crank Rod Extension

$

$

Not available

53

Toro 200424

Carriage Bolt 5/16-18 x 3/4

$

$

Not available

54

Kohler 200426

Decal
(Superseded to 220376)

$

$

Not available

55

Toro 200427

Decal
(Superseded to 742806)

$

$

Not available

56

Kohler 200428

Decal

$

$

Not available

57

Kohler 200160

Pin

$

$

Not available

58

Toro 200430

Set Screw

$

$

Currently unavailable
