7600028 - Snapper 61" NZM Large Clamshell Grass Catcher BLOWER MOUNT GROUP Parts Diagram

61" NZM Large Clamshell Grass Catcher

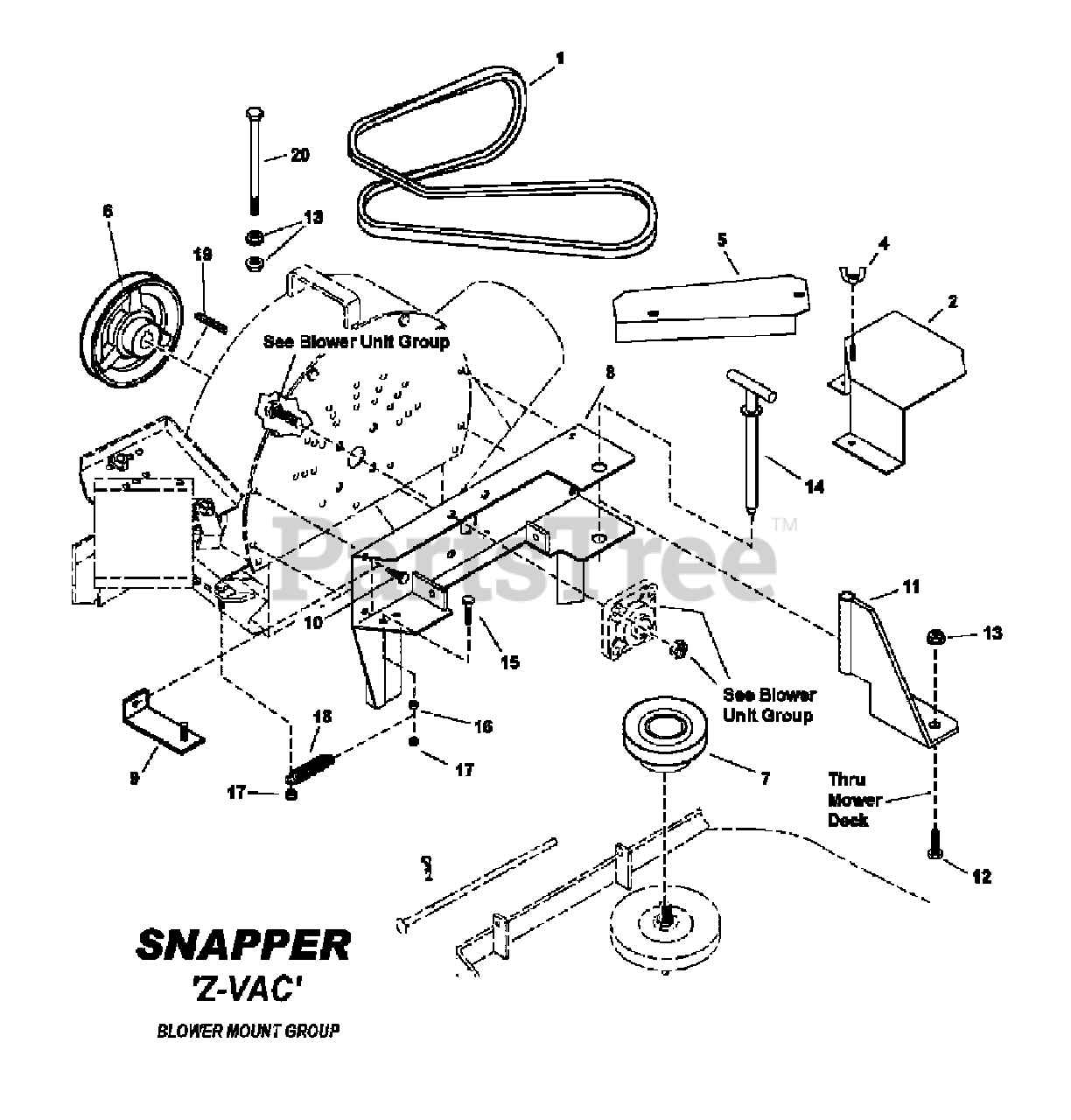

BLOWER MOUNT GROUP Parts Diagram

  • Title

1

Snapper 3022844

BELT, A-92.0
(Superseded to 5022844SM)

$62.99

$

Usually ships in 2-12 days

0

2

Snapper 7033867

GUARD, Pulley
(Superseded to 7033867YP)

$74.99

$

Usually ships in 2-12 days

0

4

Snapper 7091537

LOCKNUT, Wing 5/16 - 18 - YZ
(Superseded to 7091537YP)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7033847

BELT GUARD, Deck Belt (61")
(Superseded to 7033847YP)

$34.99

$

Usually ships in 2-12 days

0

6

Snapper 3046809

PULLEY, Blower Input (61")
(Superseded to 3046809YP)

$145.99

$

Usually ships in 2-12 days

0

7

Snapper 3036324

PULLEY, Spindle
(Superseded to 3036324YP)

$75.99

$

Usually ships in 2-12 days

0

8

Snapper 7033873

WELDMENT, Blower Mount (61")
(Superseded to 7033873A)

$

$

Not available

9

Snapper 3027507

BRACKET, Guard Support

$35.99

$

Usually ships in 2-12 days

0

10

Snapper 7091541

SCREW, Hex Washer Self-Tap 5/16-18 X 3/4-YZ
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 3027508

BRKT, Deck Mount Weldment
(Superseded to 3027508YP)

$68.99

$

Usually ships in 2-12 days

0

12

Snapper 7091304

SCREW, Hex Head Cap 3/8-16 X 1 YZ
(Superseded to 703407)

$11.99

$

Usually ships in 2-12 days

0

13

Snapper 7091619

NUT, Flange Lock, 3/8-16 YZ
(Superseded to 703333)

$4.99

$

In Stock, Qty 16

0

14

Snapper 3032118

PIN, T-Handle
(Superseded to 3032118YP)

$49.99

$

Usually ships in 2-12 days

0

15

Snapper 7091527

SCREW, Hex Head Cap 5/16-18 X 1.25 GR 5 YZ
(Superseded to 7091527YP)

$4.49

$

In Stock, only 4 left!

0

16

Snapper 7091601

NUT, Flange Lock,, 5/16-18 YZ
(Superseded to 703409)

$5.99

$

In Stock, Qty 12

0

17

Snapper 7090951

NUT, Hex Cap Lock Large, 5/16C BZ
(Superseded to 704001)

$4.49

$

In Stock, only 4 left!

0

18

Snapper 3020807

SPRING, Idler
(Superseded to 3020807SM)

$20.99

$

Usually ships in 2-12 days

0

19

Snapper 7012315

KEY, 1/4X1/4X1.44
(Superseded to 7012315YP)

$2.99

$

Usually ships in 2-12 days

0

20

Snapper 7091617

SCREW, Hex Head Cap 3/8-16 X 6 YZ
(Superseded to 7091617YP)

$6.99

$

Usually ships in 2-12 days

0

--

Snapper 7033740

BRACKET, Spring (not shown)

$

$

Currently unavailable

--

Snapper 7033868

SPRING, Brake (Not Shown; used on 61 Models)

$

$

Not available
