7600082 - Snapper Twin Bag Grass Catcher Catcher Group Parts Diagram

Twin Bag Grass Catcher

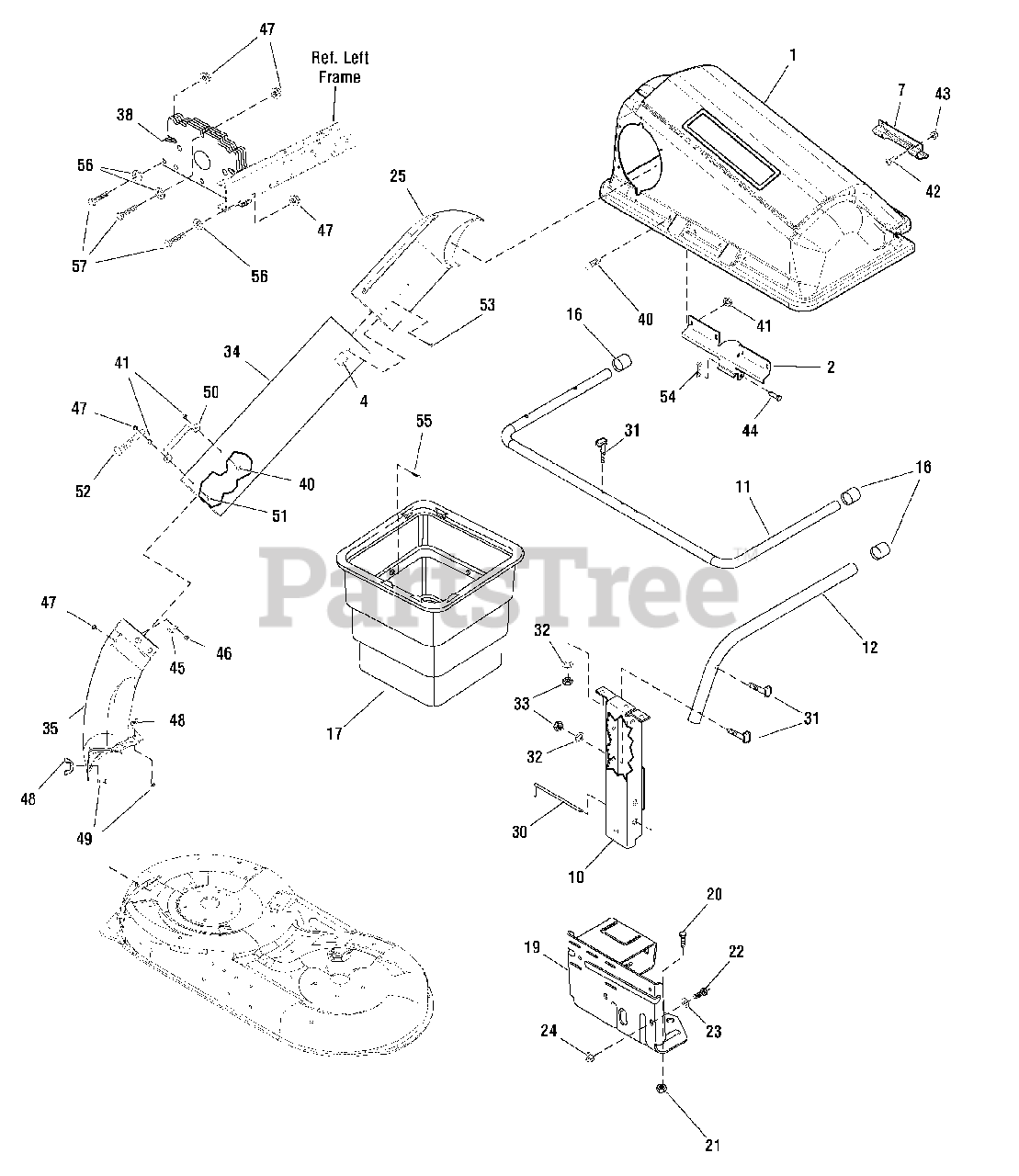

Catcher Group Parts Diagram

  • Title

1

Snapper 054572SEMA

COVER, 38" / 40

$410.99

$

Usually ships in 2-12 days

0

2

Snapper 054398E701MA

HINGE COVER

$41.99

$

Usually ships in 2-12 days

0

4

Snapper 7103195YP

DECAL, Instruction / Caution, Grass Catcher

$14.99

$

Usually ships in 2-12 days

0

7

Snapper 054537MA

HANDLE, Plastic

$19.99

$

In Stock, only 2 left!

0

10

Snapper 1732867SM

CHANNEL & PLATE ASSEMBLY

$139.99

$

Usually ships in 2-12 days

0

11

Snapper 054410E701MA

TUBE, U

$

$

Not available

12

Snapper 054412E701MA

TUBE, Center

$48.99

$

Usually ships in 2-12 days

0

16

Snapper 024862MA

PLUG, End

$4.49

$

Usually ships in 2-12 days

0

17

Snapper 054727SEMA

ASSEMBLY, Nestable Container

$483.99

$

Usually ships in 2-12 days

0

19

Snapper 7400298BMYP

BAGGER MOUNT

$229.99

$

Usually ships in 2-12 days

0

20

Snapper 01X125MA

BOLT, Hex, 1/2-13 x 1-1/4

$3.49

$

Usually ships in 2-12 days

0

21

Snapper 015X41MA

NUT, Lock, 1/2-13

$5.49

$

Usually ships in 2-12 days

0

22

Snapper 01X141MA

BOLT, Hex, 5/16-18 x 1

$3.49

$

Usually ships in 2-12 days

0

23

Snapper 010851ZMA

WASHER

$5.99

$

Usually ships in 2-12 days

0

24

Snapper 15X108MA

NUT, Flange, 5/16-18

$3.99

$

Usually ships in 2-12 days

0

25

Snapper 1733885SM

ELBOW, Upper Tube

$109.99

$

Usually ships in 2-12 days

0

30

Snapper 054408ZMA

PIN, Channel Mount
(Superseded to 1732565SM)

$37.99

$

Usually ships in 2-12 days

0

31

Snapper 006X93MA

BOLT, Special, 5/16-24

$4.49

$

In Stock, Qty 5

0

32

Snapper 018X15MA

WASHER, Splitlock, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 3 left!

0

33

Snapper 015X32MA

NUT, 5/16-24

$3.99

$

In Stock, only 3 left!

0

34

Snapper 094954MA

TUBE, Connecting

$98.99

$

Usually ships in 2-12 days

0

35

Snapper 054564SEMA

EXTENSION, Tube

$200.99

$

Usually ships in 2-12 days

0

38

Snapper 690370E701MA

WEIGHT, Front

$29.99

$

Usually ships in 2-12 days

0

40

Snapper 004X24MA

SCREW, Machine, 1/4-20

$4.49

$

Usually ships in 2-12 days

0

41

Snapper 015X66MA

NUT, Lock, KEPS, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, only 2 left!

0

42

Snapper 004X21MA

SCREW, Machine, 10-24 X 5/8

$3.99

$

Usually ships in 2-12 days

0

43

Snapper 015X81MA

NUT, Lock, 10-24

$4.99

$

Usually ships in 2-12 days

0

44

Snapper 054407ZMA

PIN, Cover Hinge

$14.99

$

In Stock, only 2 left!

0

45

Snapper 054563MA

PIN, Latch

$23.99

$

In Stock, only 1 left!

0

46

Snapper 002X39MA

BOLT, Carriage, 1/4-20 x 5/8

$3.49

$

In Stock, only 1 left!

0

47

Snapper 015X89MA

NUT, Flangelock, 1/4-20

$4.49

$

Usually ships in 2-12 days

0

48

Snapper 014X86MA

WINGNUT, 5/16-18
(Superseded to 703141)

$3.99

$

In Stock, only 2 left!

0

49

Snapper 002X64MA

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

50

Snapper 054416ZMA

HANDLE, Connect Tube

$20.99

$

In Stock, only 2 left!

0

51

Snapper 004X71MA

SCREW, Machine, 1/4-20 x 1

$4.99

$

In Stock, only 4 left!

0

52

Snapper 054695MA

LATCH, Rubber

$11.99

$

Usually ships in 2-12 days

0

53

Snapper 26X239MA

SCREW, 1/4

$4.49

$

Usually ships in 2-12 days

0

54

Snapper 0031X6MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 19

0

55

Snapper 0193X1MA

FASTENER, Panel

$4.49

$

In Stock, only 1 left!

0

56

Snapper 017X38MA

WASHER, Flat, 1/4

$3.99

$

Usually ships in 2-12 days

0

57

Snapper 01X106MA

BOLT, Hex, 1/4-20 x 2
(Superseded to 5025010X16FS)

$3.99

$

Usually ships in 2-12 days

0

60

Snapper 094913E701MA

BLADE, 38, Export

$27.99

$

Usually ships in 2-12 days

0

61

Snapper 092002E701MA

BLADE, Hi Lift, 40

$21.99

$

Usually ships in 2-12 days

0

62

Snapper 690205E701MA

BLADE, Low Lift, 42

$27.99

$

Usually ships in 2-12 days

0
