7600106 - Simplicity Clean Sweep Triple Grass Catcher for 46" & 52" Mowers Triple Catcher Assembly Parts Diagram

Clean Sweep Triple Grass Catcher for 46" & 52" Mowers

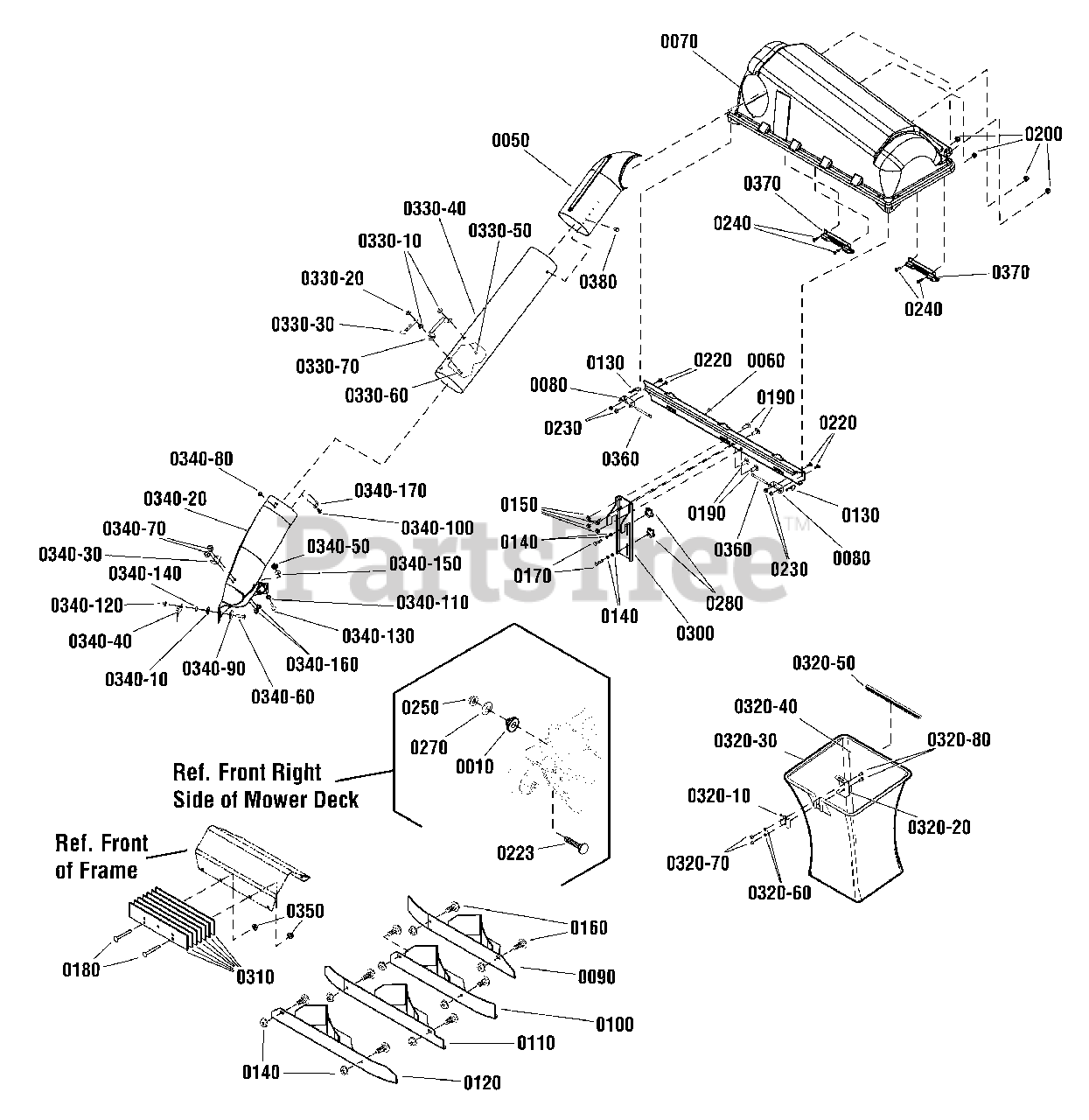

Triple Catcher Assembly Parts Diagram

  • Title

0010

Simplicity 1723244

SPACER, Hydraulic Lift Pivot
(Superseded to 1723244SM)

$7.99

$

Usually ships in 2-12 days

0

0050

Simplicity 1733885

ELBOW, Upper Tube
(Superseded to 1733885SM)

$103.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1736080A

CROSS SUPPORT
(Superseded to 1736080AYP)

$186.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1736101

ASSEMBLY, Cover and Screen
(Superseded to 1736101YP)

$695.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1736886A

PIVOT, Hinge
(Superseded to 1736886BMYP)

$34.99

$

In Stock, only 1 left!

0

0090

Simplicity 1737316A

ASSEMBLY, Baffle, 46" Mulching, LH
(Superseded to 1737316BZYP)

$140.99

$

Usually ships in 2-12 days

0

0100

Simplicity 1737317A

ASSEMBLY, Baffle, 46" Mulching, RH
(Superseded to 1737317BZYP)

$79.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1737318A

ASSEMBLY, Baffle, 52" Mulching, LH
(Superseded to 1737318BZYP)

$101.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1737319A

ASSEMBLY, Baffle, 52" Mulching, RH

$

$

Not available

0130

Simplicity 1918196

PIN, Quick, 1-7/8 Lg
(Superseded to 5025210YP)

$3.99

$

In Stock, only 3 left!

0

0140

Simplicity 1927557

NUT, Hex, Flange Lock, 5/16-18
(Superseded to 703330)

$4.99

$

In Stock, Qty 9

0

0150

Simplicity 1928352

NUT, Hex Flange 3/8-16 Whiz Lock Large
(Superseded to 703793)

$4.49

$

In Stock, Qty 9

0

0160

Simplicity 703447

BOLT, 5/16-18 x 5/8, G5

$4.49

$

In Stock, Qty 20+

0

0170

Simplicity 1931338

CARRIAGE BOLT, Short Neck, 5/16-18 x 1-3/4
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

0180

Simplicity 1931342

CARRIAGE BOLT, 5/16-18 x 2-3/4
(Superseded to 703857)

$6.49

$

Usually ships in 2-12 days

0

0190

Simplicity 1931350

CARRIAGE BOLT, 3/8-16 x 1 G5
(Superseded to 703815)

$4.49

$

In Stock, Qty 5

0

0200

Simplicity 1933896

NUT, Hex Lock 10-24 w/Nylon Insert
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

0220

Simplicity 1960252

CARRIAGE BOLT, 1/4-20 x 5/8 G5
(Superseded to 1960252SM)

$3.99

$

In Stock, only 2 left!

0

0223

Simplicity 1960223

CARRIAGE BOLT, 5/16-18 x 1-1/4, G5
(Superseded to 703446)

$4.49

$

In Stock, only 1 left!

0

0230

Simplicity 1960294

NUT, Hex Flange Whiz Lock Small, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, only 2 left!

0

0240

Simplicity 1960404

SCREW, Truss Head Phillips, #10-24 x 3/4
(Superseded to 1960404SM)

$3.99

$

In Stock, only 4 left!

0

0250

Simplicity 1960686

NUT, Hex Flange ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 17

0

0270

Simplicity 7092063

WASHER, Bellville, .32 x 1.40 x.1 YZ
(Superseded to 703939)

$7.99

$

Usually ships in 2-12 days

0

0280

Simplicity 7102990

KNOB, Handle, 5 Prong
(Superseded to 7105085YP)

$6.99

$

In Stock, Qty 20+

0

0300

Simplicity 7301143BM

BRACKET, Triple Bagger, Rear Bumper
(Superseded to 7301143BMYP)

$168.99

$

Usually ships in 2-12 days

0

0310

Simplicity 7301153BM

BALLAST, Weight
(Superseded to 7301153BMYP)

$51.99

$

Usually ships in 2-12 days

0

0320-10

Simplicity 1672023A

CLAMP, 1/2" Diameter Rod
(Superseded to 1672023ASM)

$11.99

$

Usually ships in 2-12 days

0

0320-20

Simplicity 1703807A

HANGER, Grass Bag
(Superseded to 1703807ASM)

$21.99

$

In Stock, only 3 left!

0

0320-30

Simplicity 1733517

HOOP, Bag
(Superseded to 1733517SM)

$76.99

$

Usually ships in 2-12 days

0

0320-40

Simplicity 1733695

BAG, Grass Catcher, Cloth
(Superseded to 1733695SM)

$140.99

$

In Stock, only 4 left!

0

0320-50

Simplicity 1733709

EDGING, 12 Long PVC
(Superseded to 1733709SM)

$16.99

$

In Stock, only 2 left!

0

0320-60

Simplicity 1917356

LOCKWASHER, Spring 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0320-70

Simplicity 1917372

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

0320-80

Simplicity 1931333

CARRIAGE BOLT, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0330-10

Simplicity 1928372

NUT, Hex, KEPS, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 18

0

0330-20

Simplicity 1930642

NUT, Hex Flange, 1/4-20 Top Lock, Small
(Superseded to 703916)

$4.99

$

In Stock, only 4 left!

0

0330-30

Simplicity 2171600

STRAP, Hood
(Superseded to 2171600FS)

$7.49

$

Usually ships in 2-12 days

0

0330-40

Simplicity 7104383

TUBE, Clear, 34"
(Superseded to 7104383YP)

$158.99

$

Usually ships in 2-12 days

0

0330-50

Simplicity 720074

SCREW, Slotted, 1/4-20 x 1/2
(Superseded to 004X24MA)

$4.49

$

Usually ships in 2-12 days

0

0330-60

Simplicity 720076

SCREW, Machine, 1/4-20 x 1
(Superseded to 004X71MA)

$4.99

$

In Stock, only 4 left!

0

0330-70

Simplicity 720533

HANDLE, Connect Tube
(Superseded to 720533FS)

$17.99

$

Usually ships in 2-12 days

0

0340-10

Simplicity 1708511

SPACER, 5/16 ID x 1 OD x 1/4
(Superseded to 1708511SM)

$7.49

$

Usually ships in 2-12 days

0

0340-20

Simplicity 1734776

BOOT, Bagging, 52 Mower
(Superseded to 1734776YP)

$268.99

$

In Stock, only 1 left!

0

0340-30

Simplicity 1737764A

UPSTOP, Deflector
(Superseded to 1737764AYP)

$33.99

$

Usually ships in 2-12 days

0

0340-40

Simplicity 1737765A

LATCH, Boot
(Superseded to 1737765AYP)

$32.99

$

In Stock, only 1 left!

0

0340-50

Simplicity 1738295

KNOB, ESNA, 1/4-20
(Superseded to 1738295YP)

$7.49

$

In Stock, only 1 left!

0

0340-60

Simplicity 1921333

CAPSCREW, Hex Head 5/16-18 x 1 G5
(Superseded to 703585)

$4.99

$

In Stock, only 3 left!

0

0340-70

Simplicity 1928372

NUT, Hex, KEPS, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 18

0

0340-80

Simplicity 1930642

NUT, Hex Flange, 1/4-20 Top Lock, Small
(Superseded to 703916)

$4.99

$

In Stock, only 4 left!

0

0340-90

Simplicity 1960044

WASHER, Plain, 21/64 x 1-1/4
(Superseded to 1960044SM)

$4.49

$

In Stock, Qty 16

0

0340-100

Simplicity 1960252

CARRIAGE BOLT, 1/4-20 x 5/8 G5
(Superseded to 1960252SM)

$3.99

$

In Stock, only 2 left!

0

0340-110

Simplicity 1960685

NUT, Hex KEPS, 1/4-20 Conical Washer
(Superseded to 703061)

$3.49

$

In Stock, only 3 left!

0

0340-120

Simplicity 1960686

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 17

0

0340-130

Simplicity 1960698

CARRIAGE BOLT, 1/4-20 X 1, G5
(Superseded to 1960698SM)

$3.99

$

In Stock, only 3 left!

0

0340-140

Simplicity 7026257

WASHER, .531 x .781 3-Wave
(Superseded to 7026257MA)

$4.49

$

In Stock, only 2 left!

0

0340-150

Simplicity 7091627

WASHER, Flat, 9/32 X 1
(Superseded to 7091627YP)

$4.99

$

In Stock, Qty 11

0

0340-160

Simplicity 720074

SCREW, Slotted, 1/4-20 x 1/2
(Superseded to 004X24MA)

$4.49

$

Usually ships in 2-12 days

0

0340-170

Simplicity 720543

PIN, Latch
(Superseded to 054563MA)

$23.99

$

In Stock, only 2 left!

0

0350

Simplicity 720145

NUT, Hex Flange Centerlock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0360

Simplicity 720525

PIN, Cover Hinge, 3/8 Dia.x 3-3/4
(Superseded to 054407ZMA)

$14.99

$

In Stock, only 2 left!

0

0370

Simplicity 720537

HANDLE, Plastic
(Superseded to 054537MA)

$18.99

$

Usually ships in 2-12 days

0

0380

Simplicity 722855

SCREW, 1/4 x 3/4
(Superseded to 26X239MA)

$4.49

$

In Stock, only 2 left!

0
