7600199 - Simplicity Single Grass Catcher Single Catcher Parts Diagram

Single Grass Catcher

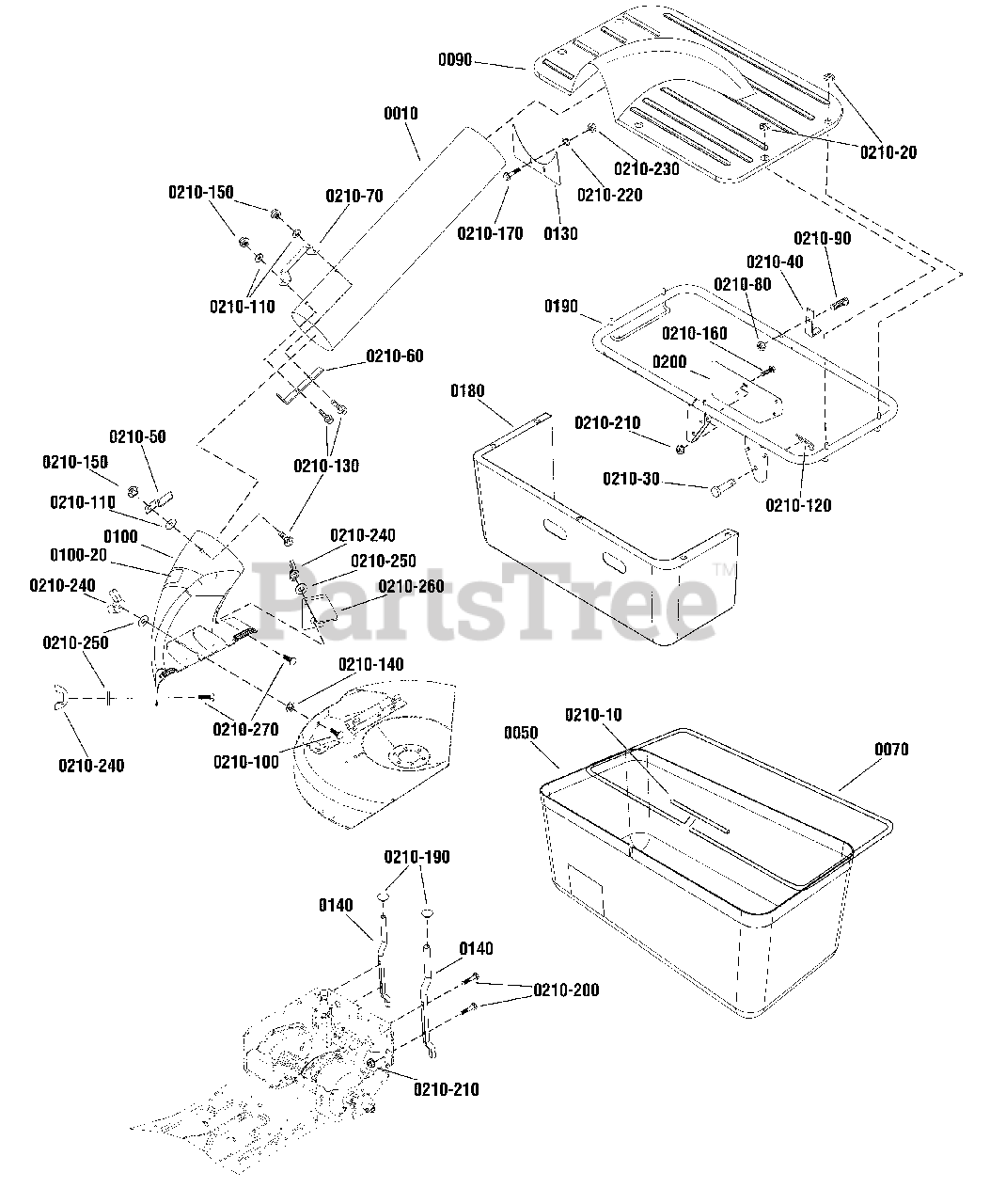

Single Catcher Parts Diagram

  • Title

0010

Simplicity 7027915YP

Tube, Grass

$137.99

$

Usually ships in 2-12 days

0

0050

Simplicity 7019251YP

Bag, Grass
(Superseded to 7024819YP)

$

$

Not available

0070

Simplicity 7057248YP

ROD, Bag

$103.99

$

Usually ships in 2-12 days

0

0090

Simplicity 7104012YP

TOP, Grass Container

$296.99

$

Usually ships in 2-12 days

0

0100

Simplicity 7503112YP

DECK ADAPTER ASSEMBLY

Note: (Incl Ref. Nos. 0100-20)

$271.99

$

Usually ships in 2-12 days

0

0100-20

Simplicity 7046720SM

DECAL, Warning

$7.49

$

Usually ships in 2-12 days

0

0130

Simplicity 7063287BMYP

SHIELD, Grass Catcher

$

$

Not available

0140

Simplicity 7030798BMYP

BUMPER

$32.99

$

In Stock, Qty 6

0

0180

Simplicity 7106050YP

SKIRT, Bagger Dust

$30.99

$

Usually ships in 2-12 days

0

0190

Simplicity 7400336BMYP

FRAME, Bagger

$330.99

$

Usually ships in 2-12 days

0

0200

Simplicity 7301376YP

SHIELD, Heat

$53.99

$

Usually ships in 2-12 days

0

--

Simplicity 7503113

HARDWARE BAG

Note: (Not a serviceable part)

$

$

Not available

0210-10

Simplicity 7012556YP

CONNECTOR, 1/2 X 3

$7.49

$

Usually ships in 2-12 days

0

0210-20

Simplicity 7029840YP

PALNUT, 5/16
(Superseded to 704315)

$4.49

$

Usually ships in 2-12 days

0

0210-30

Simplicity 704029

PIN, Clevis, 5/16 X 1.68

$4.49

$

In Stock, Qty 6

0

0210-40

Simplicity 7031725YP

LATCH

$5.49

$

Usually ships in 2-12 days

0

0210-50

Simplicity 7031951YP

LATCH, Chute

$5.99

$

In Stock, Qty 5

0

0210-60

Simplicity 7031952YP

BASE, Handle Tube

$7.49

$

In Stock, only 2 left!

0

0210-70

Simplicity 7037745YP

HANDLE, Tube

$10.99

$

Usually ships in 2-12 days

0

0210-80

Simplicity 703937

NUT, Ny Lock, #10-32

$3.49

$

Usually ships in 2-12 days

0

0210-90

Simplicity 7090532YP

SCREW, Machined 10F X 1 3/8 GR2
(Superseded to 704316)

$4.99

$

In Stock, only 1 left!

0

0210-100

Simplicity 703185

BOLT, Carriage, Short Neck, 5/16-18 X 3/4 GR5

$3.49

$

In Stock, Qty 20+

0

0210-110

Simplicity 703462

WASHER, Internal Tooth, 1/4

$4.49

$

In Stock, Qty 13

0

0210-120

Simplicity 703300

PIN, Hair, 3/32 X 1.6

$3.99

$

In Stock, Qty 20+

0

0210-130

Simplicity 703576

BOLT, Carriage, Short Neck, 1/4-20 X 3/4 GR5
(Superseded to 703101)

$3.99

$

In Stock, Qty 5

0

0210-140

Simplicity 703297

RETAINER, Pushnut, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0210-150

Simplicity 703127

NUT, Hex,1/4-20, GR5

$3.49

$

In Stock, only 4 left!

0

0210-160

Simplicity 7090534YP

CAPSCREW, HexHead, 5/16 X 1/2, GR5
(Superseded to 704317)

$4.49

$

Usually ships in 2-12 days

0

0210-170

Simplicity 7090909YP

CAPSCREW, HexHead, 1/4-20 X 1 1/2, GR5
(Superseded to 703234)

$4.49

$

In Stock, only 3 left!

0

0210-190

Simplicity 7010153YP

CAP, BUMPER

$4.49

$

In Stock, Qty 13

0

0210-200

Simplicity 7091506YP

BOLT, Self Tapping, 5/16 X 1 1/2
(Superseded to 704318)

$4.49

$

In Stock, only 3 left!

0

0210-210

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0

0210-220

Simplicity 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 12

0

0210-230

Simplicity 7091705SM

NUT, Lock, 1/4
(Superseded to 704319)

$3.49

$

Usually ships in 2-12 days

0

0210-240

Simplicity 7024085YP

WINGNUT, 5/16
(Superseded to 704320)

$4.99

$

In Stock, Qty 19

0

0210-250

Simplicity 703298

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 12

0

0210-260

Simplicity 7301385BMYP

BRACKET, Mounting

$24.99

$

Usually ships in 2-12 days

0

0210-270

Simplicity 703800

BOLT, Carriage, Short Neck,5/16-18 x 1

$3.99

$

In Stock, Qty 16

0
