765r (41ADL02G734) - Ryobi String Trimmer Trimmer Parts Diagram

String Trimmer

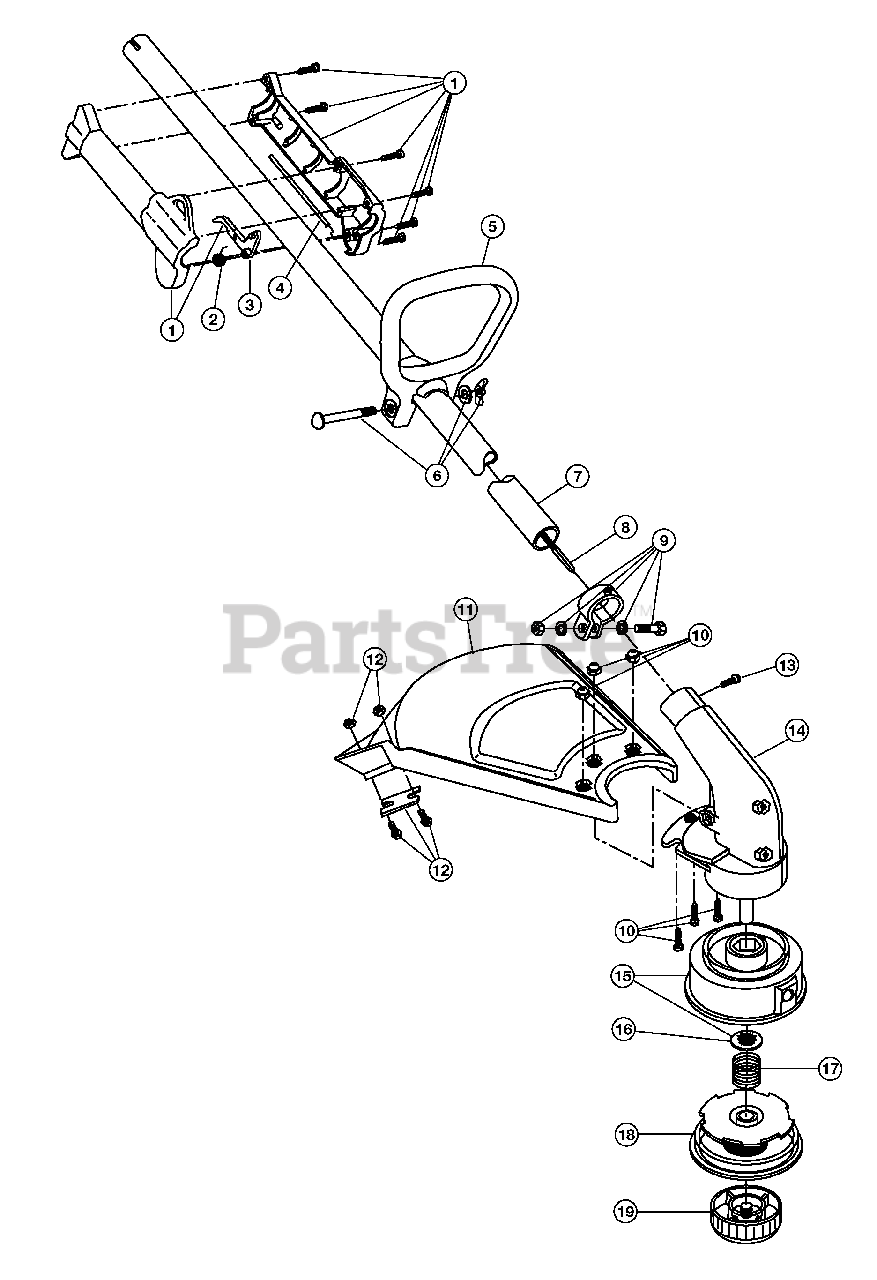

Trimmer Parts Diagram

  • Title

1

MTD 791-182069

Throttle Housing and Trigger Assembly
(Superseded to 753-04927)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$10.99

$

Usually ships in 3-6 days

0

3

MTD 791-181556

Throttle Trigger
(Superseded to 791-181807)

$10.99

$

In Stock, only 4 left!

0

4

MTD 791-182068

Throttle Cable Housing Assembly

$21.99

$

Usually ships in 3-6 days

0

5

MTD 791-153064

D-Handle

Note: (includes 6)

$

$

Not available

6

MTD 791-153317

D-Handle Hardware Assembly
(Superseded to 791-181587)

$20.99

$

In Stock, only 1 left!

0

7

MTD 753-04250

Drive Shaft Housing Assembly

$

$

Not available

8

MTD 753-04251

Flexible Drive Shaft

$71.99

$

Usually ships in 3-6 days

0

9

MTD 791-153597

Lower Clamp Assembly

$

$

Not available

10

MTD 791-180547

Guard Mounting Screw Assembly

$

$

Not available

11

MTD 753-1213

Guard and Blade Assembly
(Superseded to 1A6902)

$

$

Not available

12

MTD 791-181823

Blade Assembly

$12.99

$

Usually ships in 3-6 days

0

13

MTD 791-145569

Anti-Rotation Screw

$10.99

$

In Stock, Qty 7

0

14

MTD 791-180549

Gearbox Assembly

$

$

Not available

15

MTD 791-153619

Outer Spool Assembly

$29.99

$

Usually ships in 3-6 days

0

16

MTD 791-610660

Retainer

$5.49

$

In Stock, Qty 20+

0

17

MTD 791-610317

Spring
(Superseded to 791-610317B)

$11.99

$

In Stock, Qty 20+

0

18

MTD 794-610318

Inner Reel

$

$

Currently unavailable

19

MTD 791-153066

Bump Head Knob Assembly
(Superseded to 791-153066B)

$14.99

$

In Stock, Qty 20+

0

MTD 791-610375

Monoflail Cutting Line (50 ft.)

Note: Optional Accessory; Not Shown

$

$

Not available

MTD 791-153577

Spool and Line (25 ft.) Assembly
(Superseded to 791-153577B)

Note: Optional Accessory; Not Shown

$29.99

$

In Stock, only 1 left!

0
