Toro 76601 - Toro 60" Titan MAX Zero-Turn Mower (SN: 415267000 - 999999999) Deck Assembly Parts Lookup with Diagrams

1

Toro 1-413088

BUSHING-LEVER, LIFT

$11.99

$

In Stock, only 3 left!

2

Toro 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

3

Toro 51-4060

SCREW-BLADE

$8.49

$

In Stock, Qty 12

4

Toro 80-6990

WASHER-HARDENED

$5.99

$

In Stock, only 3 left!

5

Toro 92-5836

WASHER

$6.49

$

In Stock, Qty 9

6

Toro 98-7912

TUBE-SPANNER

$15.99

$

In Stock, Qty 7

7

Toro 135-0363

SHEAVE-DRIVE, BLADE

$92.99

$

In Stock, only 2 left!

8

Toro 104-0892

SPACER-AXLE, REAR

$5.49

$

In Stock, Qty 6

9

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 7

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

11

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

12

Toro 110-9981

WASHER-PLAIN

$16.99

$

In Stock, Qty 7

13

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.99

$

In Stock, Qty 20+

14

Toro 114-1648-03

BRACKET-DEFLECTOR, UPPER

$63.99

$

In Stock, only 2 left!

15

Toro 115-2642

SHAFT-SPINDLE

$58.99

$

In Stock, Qty 5

16

Toro 115-5048-03

PLATE-DEFLECTOR

$47.99

$

In Stock, only 1 left!

17

Toro 115-5054

ARM-IDLER

$77.99

$

In Stock, only 2 left!

18

Toro 115-9649-03

BLADE-HI FLOW, 20.5 INCH

$26.99

$

In Stock, Qty 19

19

Toro 116-4669

IDLER-PULLEY, FLAT

$84.99

$

In Stock, Qty 5

20

Toro 117-1270

DEFLECTOR

$85.99

$

In Stock, only 2 left!

21

Toro 117-7210

SHIELD-BEARING

$

Not available 

22

Toro 119-3388-03

BAFFLE-CUTOFF

$28.99

$

Usually ships in 3-6 days

23

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

24

Toro 125-1736

WASHER-BELLEVILLE

$4.49

$

In Stock, only 2 left!

25

Toro 126-4781-03

STEP-DECK

$31.99

$

In Stock, only 2 left!

26

Toro 126-7684

BUSHING-IDLER

$3.49

$

In Stock, only 3 left!

27

Toro 132-4718

PULLEY-IDLER, FLAT

$35.99

$

In Stock, Qty 12

28

Toro 133-9282

COVER-BELT, LH

$25.99

$

In Stock, only 2 left!

29

Toro 133-9283

COVER-BELT, RH

$21.99

$

In Stock, only 2 left!

30

Toro 139-2357

SPINDLE ASM

$113.99

$

In Stock, Qty 13

30:2

Toro 116-0720

BEARING-BALL

$25.99

$

In Stock, Qty 12

30:3

Toro 138-7220

SPACER-BEARING

$8.49

$

In Stock, only 2 left!

31

Toro 135-1873

BELT-DECK DRIVE

$157.99

$

In Stock, only 3 left!

32

Toro 138-7227

BUSHING-IDLER

$3.49

$

In Stock, Qty 19

33

Toro 138-7231

PIN-CHUTE

$9.49

$

In Stock, only 2 left!

34

Toro 138-7232

SPRING-TORSION

$2.99

$

In Stock, only 1 left!

35

Toro 139-3616

SPRING - EXTENSION

$12.99

$

In Stock, only 2 left!

36

Toro 144-1895

DECK ASM - 60

$2500.99

$

Usually ships in 3-6 days

37

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

38

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

39

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 3 left!

40

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 9

41

Toro 144-1980

BELT GUIDE - IDLER

$5.99

$

In Stock, Qty 6

42

Toro 3256-68

WASHER-FLAT

$3.49

$

In Stock, only 4 left!

43

Toro 3296-67

NUT-LOCK, NI

$5.99

$

In Stock, Qty 20+

44

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

45

Toro 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

46

Toro 1-603401

SPACER

$7.49

$

In Stock, only 2 left!

47

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

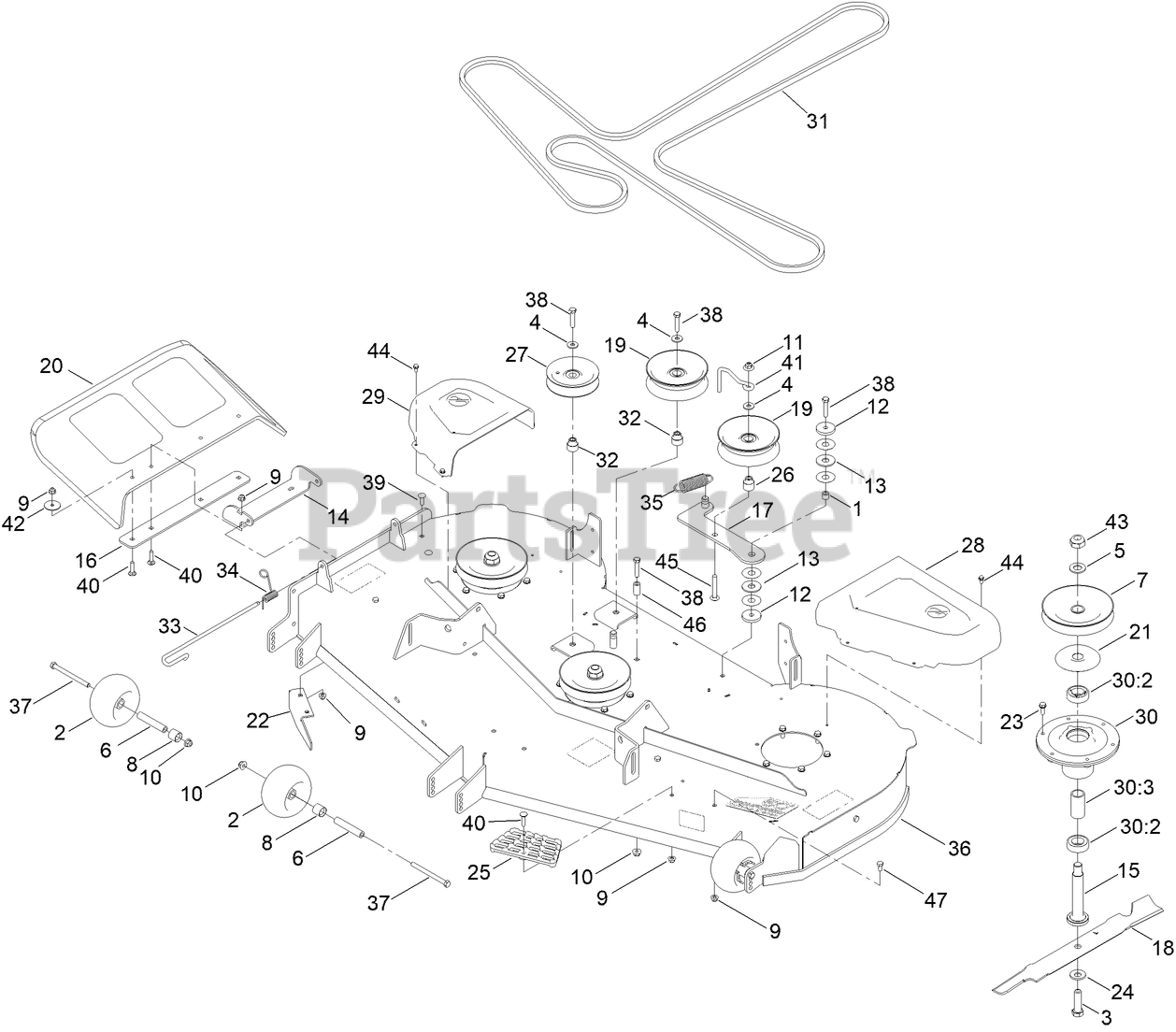

76601 - Toro 60" Titan MAX Zero-Turn Mower (SN: 415267000 - 999999999) Deck Assembly Parts Diagram

Deck Assembly Parts Diagram
