76606 - Toro 60" Titan MAX Zero-Turn Mower (SN: 400000000 - 417419999) Seat Assembly Parts Diagram

60" Titan MAX Zero-Turn Mower

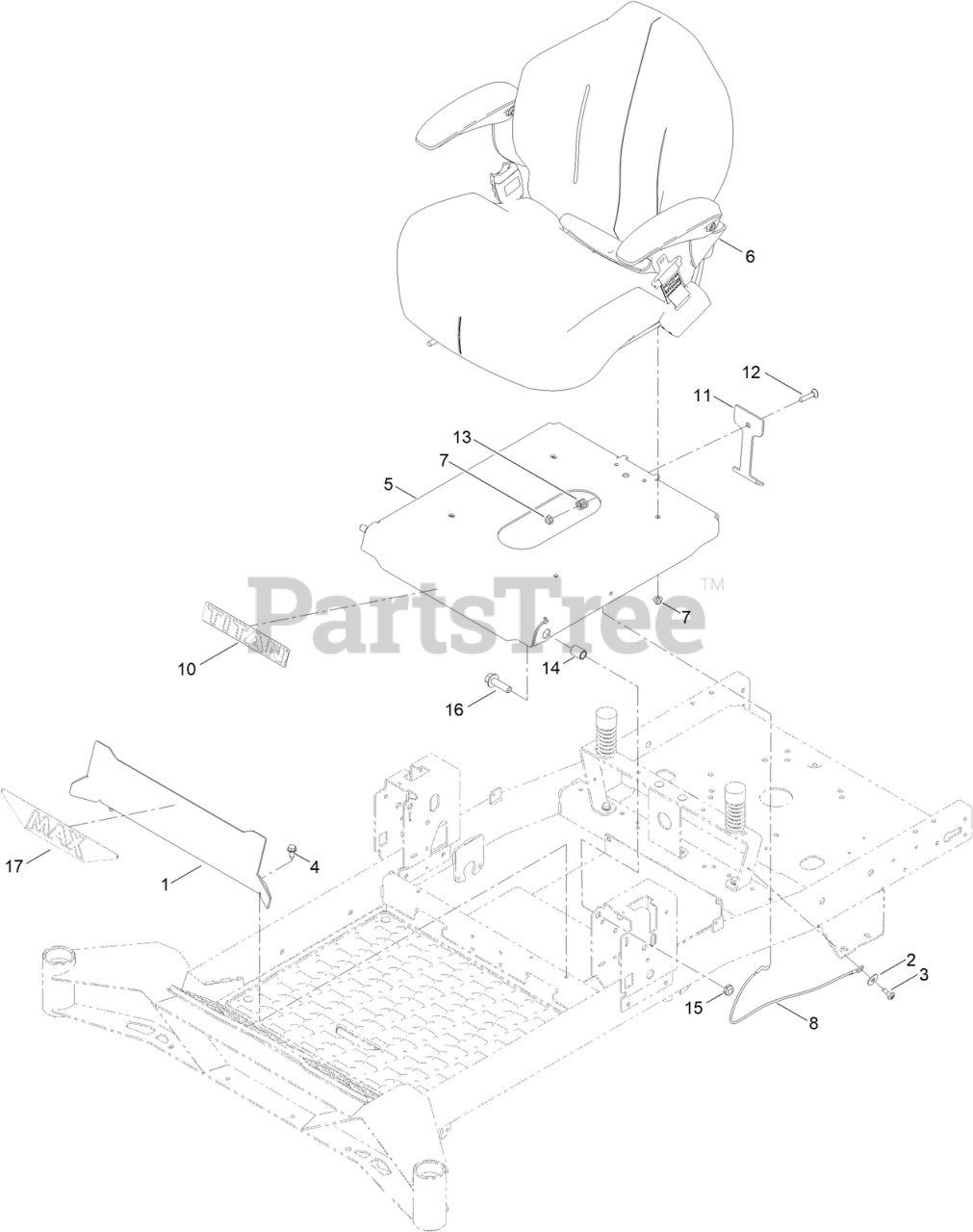

Seat Assembly Parts Diagram

  • Title

1

Toro 147-5170-05

PLATE-KICK

$37.99

$

Usually ships in 3-6 days

0

2

Toro 147-5287

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

3

Toro 135-2015

SCREW-SHOULDER

$3.99

$

Usually ships in 3-6 days

0

4

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

5

Toro 161-9730-05

PAN-SEAT

$

$

Currently unavailable

6

Toro 163-6014

SEAT ASM

$624.99

$

Usually ships in 3-6 days

0

7

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 139-2398

CABLE-LANYARD

$11.99

$

Usually ships in 3-6 days

0

10

Toro 161-6624

DECAL-TITAN

$

$

Currently unavailable

11

Toro 161-9731

BRACKET-LATCH, SEAT

$

$

Currently unavailable

12

Toro 3230-4

BOLT-CARR

$4.49

$

In Stock, Qty 11

0

13

Toro 107-3017

SPRING-COMPRESSION

$3.49

$

Usually ships in 3-6 days

0

14

Toro 161-9735

BUSHING-PIVOT, SEAT

$

$

Currently unavailable

15

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

16

Toro 130-6481

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

17

Toro 161-6284

DECAL- TC HAVOC

$15.99

$

Usually ships in 3-6 days

0
