76606 - Toro 60" Titan MAX Zero-Turn Mower (SN: 417515889 - 999999999) Fuel Tank Assembly Parts Diagram

60" Titan MAX Zero-Turn Mower

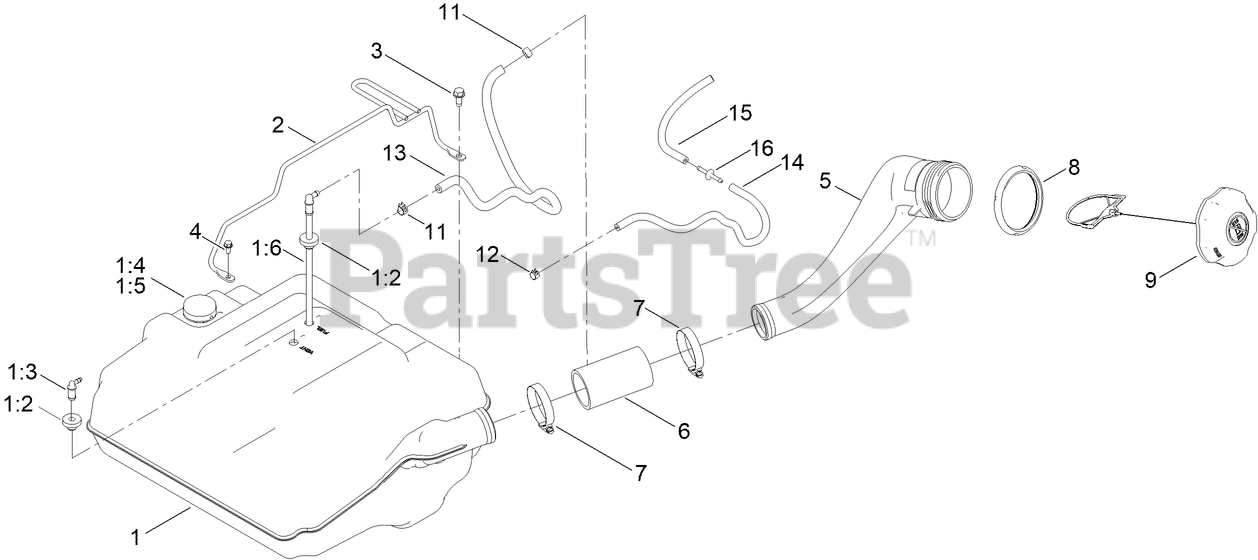

Fuel Tank Assembly Parts Diagram

  • Title

1

Toro 161-6234

TANK ASM-FUEL

$314.99

$

Usually ships in 3-6 days

0

1:2

Toro 46-6560

BUSHING

$6.49

$

In Stock, Qty 20+

0

1:3

Toro 161-6609

FITTING-ELBOW 90

$

$

Currently unavailable

1:4

Toro 133-9269

GROMMET-FUEL

$5.49

$

In Stock, Qty 5

0

1:5

Toro 161-6415

REMOTE GAUGE ASM

$52.99

$

Usually ships in 3-6 days

0

1:6

Toro 161-6317

FITTING - PICKUP, FUEL

$

$

Currently unavailable

2

Toro 161-6494

HOLD DOWN ASM

$12.99

$

Usually ships in 3-6 days

0

3

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

5

Toro 161-6235

NECK-FILLER, FUEL

$17.99

$

Usually ships in 3-6 days

0

6

Toro 145-4698

HOSE-FILLER, FUEL

$31.99

$

Usually ships in 3-6 days

0

7

Toro 2412-130

CLAMP-HOSE

$4.99

$

Usually ships in 3-6 days

0

8

Toro 147-7712

RING-RETAINING

$2.49

$

Usually ships in 3-6 days

0

9

Toro 137-4119

CAP-FUEL, RATCHETING

$29.99

$

In Stock, Qty 8

0

11

Toro 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

12

Toro 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 2 left!

0

13

Toro 110-1872

HOSE-FUEL

$36.99

$

Usually ships in 3-6 days

0

14

Toro 143-2545

HOSE-FUEL

$

$

Currently unavailable

15

Toro 121-3003

HOSE-FUEL

$9.49

$

Usually ships in 3-6 days

0

16

Toro 144-1983

ADAPTER ORIFICE

$1.49

$

Usually ships in 3-6 days

0
