76606 - Toro 60" Titan MAX Zero-Turn Mower (SN: 417515889 - 999999999) Motion Control Assembly Parts Diagram

60" Titan MAX Zero-Turn Mower

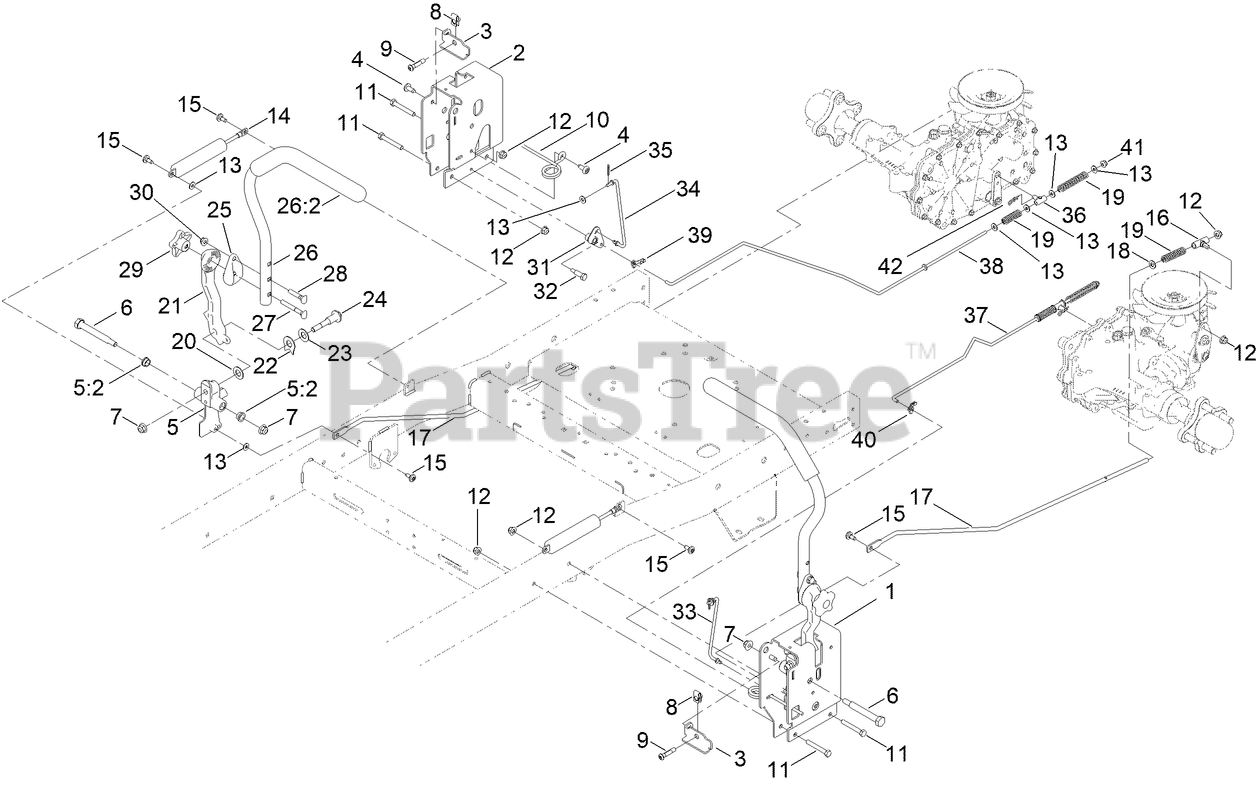

Motion Control Assembly Parts Diagram

  • Title

1

Toro 145-4615-03

CONTROL BOX - LH G7

$39.99

$

Usually ships in 3-6 days

0

2

Toro 145-4647-03

CONTROL BOX - RH G7

$39.99

$

Usually ships in 3-6 days

0

3

Toro 147-7580-03

ADJUSTMENT PLATE-CONTROL BOX

$9.49

$

Usually ships in 3-6 days

0

4

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 20+

0

5

Toro 145-4648

PIVOT ARM ASM

$25.99

$

In Stock, Qty 6

0

5:2

Toro 256-156

BUSHING-FLANGE

$14.99

$

In Stock, only 2 left!

0

6

Toro 115-5099

BOLT-PIVOT

$5.49

$

In Stock, only 2 left!

0

7

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 112-3306

NUT

$3.99

$

Usually ships in 3-6 days

0

9

Toro 126-4299

SCREW-HSBH

$2.99

$

Usually ships in 3-6 days

0

10

Toro 145-6253

SPRING-TORSION

$2.99

$

Usually ships in 3-6 days

0

11

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 20+

0

12

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

14

Toro 161-6514

DAMPER - NON CAVITATING

$

$

Currently unavailable

15

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

16

Toro 138-7218

MOUNT-ROD, HYDRO

$13.99

$

In Stock, only 4 left!

0

17

Toro 161-9725

ROD-HYDRO

$17.99

$

Usually ships in 3-6 days

0

18

Toro 120-9683

WASHER-PLAIN

$3.49

$

In Stock, only 1 left!

0

19

Toro 138-7252

SPRING-COMPRESSION

$2.99

$

In Stock, only 1 left!

0

20

Toro 120-2273

WASHER-NYLON

$2.99

$

In Stock, only 2 left!

0

21

Toro 147-5191-05

ARM-CONTROL, 32 TEETH

$27.99

$

Usually ships in 3-6 days

0

22

Toro 142-8478

SPACER, ANTI-ROTATION

$1.99

$

Usually ships in 3-6 days

0

23

Toro 119-8925

WASHER-BELLEVILLE

$1.49

$

In Stock, Qty 14

0

24

Toro 117-1198

BOLT-PIVOT

$3.49

$

In Stock, Qty 14

0

25

Toro 147-5192-05

DISC-ADJUSTMENT HANDLE, 32 TEETH

$14.99

$

In Stock, only 4 left!

0

26

Toro 145-6327

HANDLE-CONTROL,

$69.99

$

In Stock, only 2 left!

0

26:2

Toro 147-3029

GRIP

$15.99

$

In Stock, only 2 left!

0

27

Toro 145-6366

SCREW-HANDLE

$1.49

$

In Stock, only 3 left!

0

28

Toro 137-3008

SCREW-HANDLE

$1.49

$

In Stock, only 3 left!

0

29

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 20+

0

30

Toro 138-8401

NUT-HF

$1.49

$

In Stock, Qty 5

0

31

Toro 161-6420

BELLCRANK

$2.49

$

In Stock, Qty 12

0

32

Toro 145-6364

BOLT - SHOULDER

$1.49

$

Usually ships in 3-6 days

0

33

Toro 145-4607

LINK-BRAKE, LH

$11.99

$

Usually ships in 3-6 days

0

34

Toro 145-6238

LINK-BRAKE, RH

$11.99

$

Usually ships in 3-6 days

0

35

Toro 120-9716

PIN-COTTER

$

$

Currently unavailable

36

Toro 119-8857

MOUNT-PIVOT

$18.99

$

In Stock, only 3 left!

0

37

Toro 145-0408

ROD-BRAKE LH

$14.99

$

Usually ships in 3-6 days

0

38

Toro 145-0407

ROD-BRAKE, RH

$14.99

$

Usually ships in 3-6 days

0

39

Toro 144-1815

CLIP, ROD, RH, 7R, 1/4IN

$1.49

$

In Stock, Qty 6

0

40

Toro 144-1816

CLIP, ROD, LH, 7L, 1/4IN

$1.49

$

In Stock, Qty 5

0

41

Toro 119-4040

NUT-FLANGE, NI

$0.99

$

In Stock, Qty 8

0

42

Toro 137-3083

PIN-HAIR

$1.49

$

In Stock, Qty 7

0
