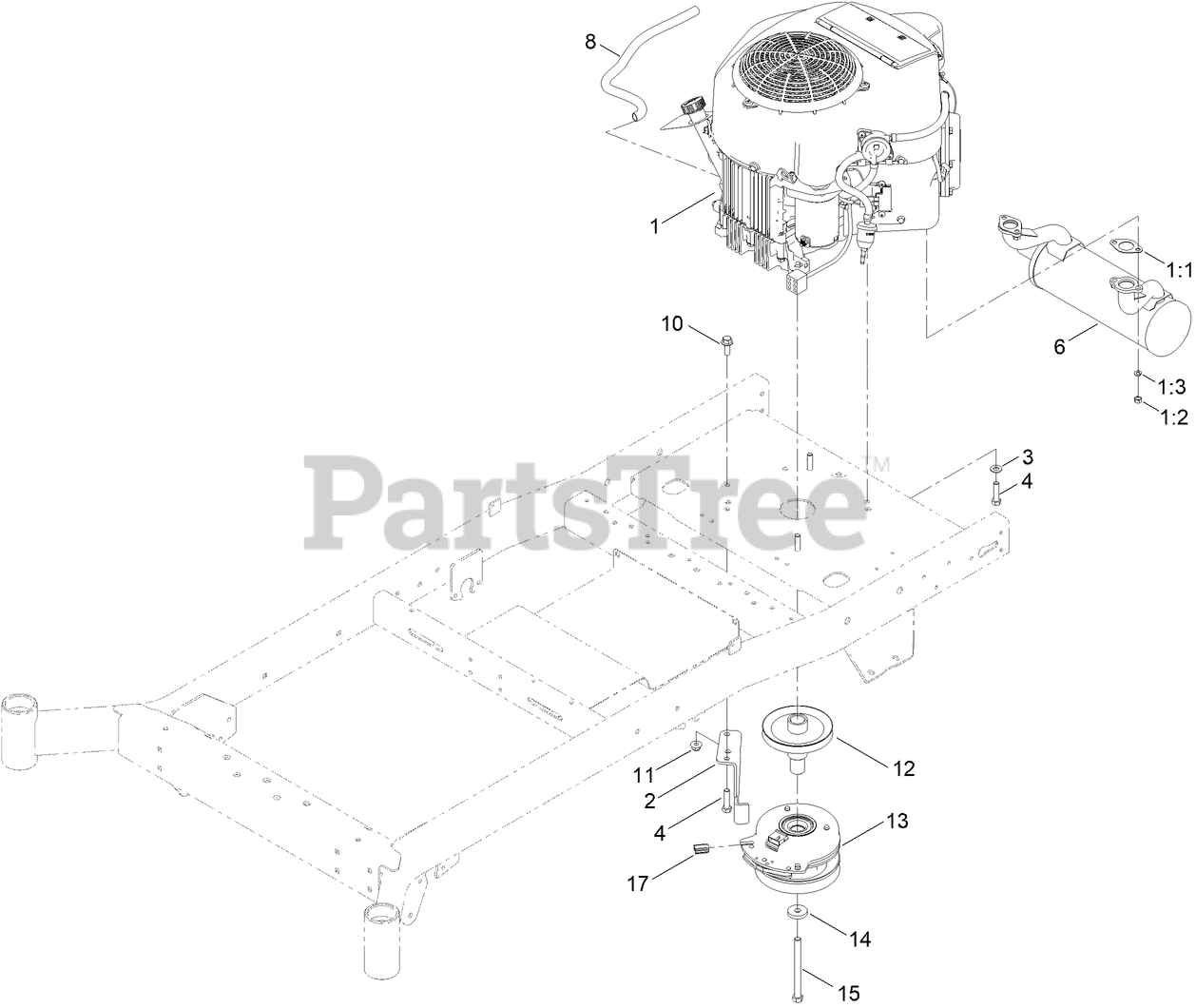

76608 - Toro 60" Titan MAX Zero-Turn Mower (SN: 400000000 - 417419999) Engine and Muffler Assembly Parts Diagram

60" Titan MAX Zero-Turn Mower

Engine and Muffler Assembly Parts Diagram

  • Title

1

ENGINE-KAWASAKI, FR730V-S09-R

Note: Not serviced separately

$

$

Not available

1

ENGINE-KAWASAKI, FR730V-S09-R

Note: This is a Kawasaki part. Please use the Kawasaki Engine catalog.

$

$

Not available

1:1

Toro 1-653313

GASKET-EXHAUST

$5.49

$

Usually ships in 3-6 days

0

1:2

Toro 114-3549

NUT

$3.49

$

In Stock, Qty 20+

0

1:3

Toro 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 10

0

2

Toro 137-7000

STOP-CLUTCH (WIDE)

$13.99

$

In Stock, only 3 left!

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 323-50

BOLT-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 126-4360

MUFFLER

$164.99

$

Usually ships in 3-6 days

0

8

Toro 106-7022

TUBE-DRAIN, OIL

$10.99

$

In Stock, Qty 6

0

10

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

11

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 138-9831

PULLEY-ENGINE

$44.99

$

Usually ships in 3-6 days

0

13

Toro 127-3410

CLUTCH-PTO

$410.99

$

In Stock, only 3 left!

0

14

Toro 112843

WASHER

$3.99

$

In Stock, Qty 5

0

15

Toro 3212-19

SCREW-HH

$8.99

$

In Stock, only 2 left!

0

17

Toro 120-2217

ISOLATOR-CLUTCH

$2.99

$

In Stock, Qty 11

0
