76610 - Toro 60" Titan MAX Zero-Turn Mower (SN: 400000000 - 417419999) Fuel Pod Assembly Parts Diagram

60" Titan MAX Zero-Turn Mower

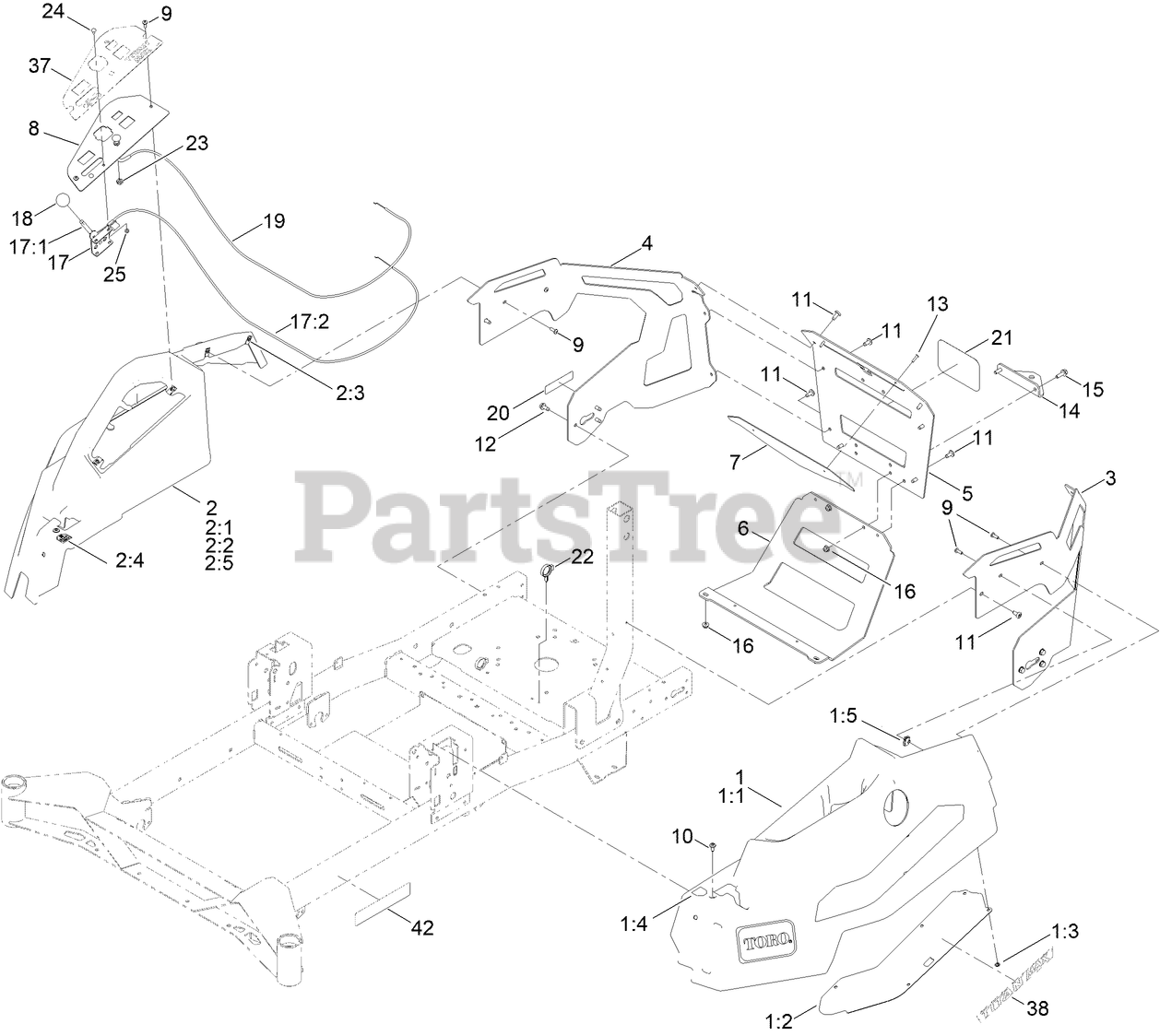

Fuel Pod Assembly Parts Diagram

  • Title

1

Toro 163-2321

TITAN MAX LH POD ASM

$

$

Currently unavailable

1:1

Toro 161-6201

POD-LH

$

$

Currently unavailable

1:2

Toro 161-6293-03

PLATE-POD, LH

$

$

Currently unavailable

1:3

Toro 32112-6

NUT-PUSH

$6.99

$

In Stock, only 4 left!

0

1:4

Toro 139-2395

DECAL-CONTROL LEVER, LH

$1.99

$

Usually ships in 3-6 days

0

1:5

Toro 107069

CLIP

$2.99

$

In Stock, only 3 left!

0

2

Toro 163-2322

TITAN MAX RH POD ASM

$

$

Currently unavailable

2:1

Toro 161-6202

POD-RH

$

$

Currently unavailable

2:2

Toro 161-6294-03

PLATE-POD, RH

$

$

Currently unavailable

2:3

Toro 107069

CLIP

$2.99

$

In Stock, only 3 left!

0

2:4

Toro 139-2394

DECAL-CONTROL LEVER, RH

$1.99

$

Usually ships in 3-6 days

0

2:5

Toro 32112-6

NUT-PUSH

$6.99

$

In Stock, only 4 left!

0

3

Toro 161-6315-05

GUARD-ENGINE, LH

$

$

Currently unavailable

4

Toro 161-6316-05

GUARD-ENGINE, RH

$

$

Currently unavailable

5

Toro 147-2998-05

GUARD-ENGINE

$

$

Currently unavailable

6

Toro 147-3000-03

GUARD-MUFFLER

$101.99

$

Usually ships in 3-6 days

0

7

Toro 147-2999-01

PLATE-BACKER

$17.99

$

Usually ships in 3-6 days

0

8

Toro 161-6203-03

PANEL-CONTROL

$22.99

$

Usually ships in 3-6 days

0

9

Toro 138-0689

SCREW-PH

$1.49

$

Usually ships in 3-6 days

0

10

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

11

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 20+

0

12

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

13

Toro 130-8451

RIVET-TRIFOLD

$1.49

$

Usually ships in 3-6 days

0

14

Toro 117-1232-03

BRACKET-HITCH

$31.99

$

In Stock, only 2 left!

0

15

Toro 139-2596

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

16

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

17

Toro 110-5727

THROTTLE CONTROL ASM

$94.99

$

In Stock, only 1 left!

0

17:1

Toro 112-2334

LEVER-THROTTLE

$86.99

$

Usually ships in 3-6 days

0

17:2

Toro 110-5728

See Supercession: 110-5727
(Superseded to 110-5727)

$94.99

$

In Stock, only 1 left!

0

18

Toro 1-603175

KNOB-BALL

$12.99

$

Usually ships in 3-6 days

0

19

Toro 144-2647

CABLE-CHOKE CONTROL

$43.99

$

In Stock, only 1 left!

0

20

Toro 142-5864

DECAL-SPARK ARRESTER

$1.99

$

Usually ships in 3-6 days

0

21

Toro 127-7590

DECAL

$6.99

$

Usually ships in 3-6 days

0

22

Toro 104-2490

CLAMP-HOSE

$5.49

$

In Stock, only 2 left!

0

23

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

24

Toro 135-1929

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

25

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

37

Toro 161-9793

DECAL-PANEL, CONTROL

$20.99

$

Usually ships in 3-6 days

0

38

Toro 161-6640

DECAL-TITAN MAX

$

$

Currently unavailable

42

Toro 161-6641

DECAL-HAVOC

$6.99

$

Usually ships in 3-6 days

0
