76660 (ZXM 6075) - Toro 60" Titan MyRide Zero-Turn Mower (SN: 400000000 - 999999999) Engine and Muffler Assembly Parts Diagram

60" Titan MyRide Zero-Turn Mower

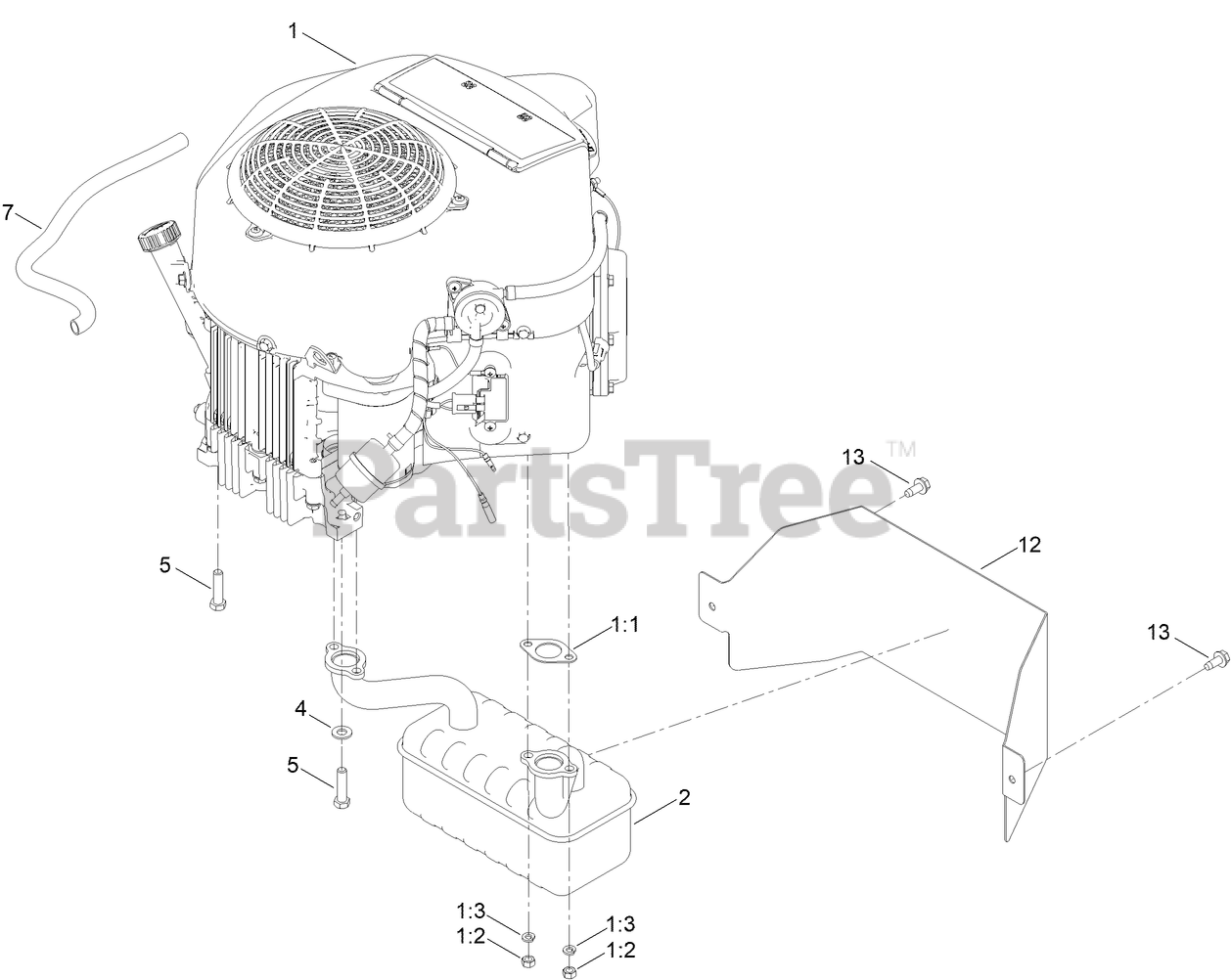

Engine and Muffler Assembly Parts Diagram

  • Title

1

ENGINE-KAWASAKI, FR691

Note: This is a Kawasaki part. Please use the Kawasaki Engine catalog.

$

$

Not available

1

ENGINE-KAWASAKI, FR691

Note: Not serviced separately

$

$

Not available

1:1

Toro 1-653313

GASKET-EXHAUST

$5.49

$

Usually ships in 3-6 days

0

1:2

Toro 114-3549

NUT

$3.49

$

In Stock, Qty 20+

0

1:3

Toro 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 10

0

2

Toro 139-5867

MUFFLER

$153.99

$

Usually ships in 3-6 days

0

4

Toro 115-1166

WASHER-FLAT

$4.99

$

In Stock, only 2 left!

0

5

Toro 137-3070

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

7

Toro 106-7022

TUBE-DRAIN, OIL

$10.99

$

In Stock, Qty 6

0

12

Toro 161-6221-03

HEAT SHIELD - MUFFLER
(Superseded to 161-6649-03)

$37.99

$

Usually ships in 3-6 days

0

13

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0
