766r (41CD766G034) - Ryobi String Trimmer Boom And Trimmer Parts Parts Diagram

String Trimmer

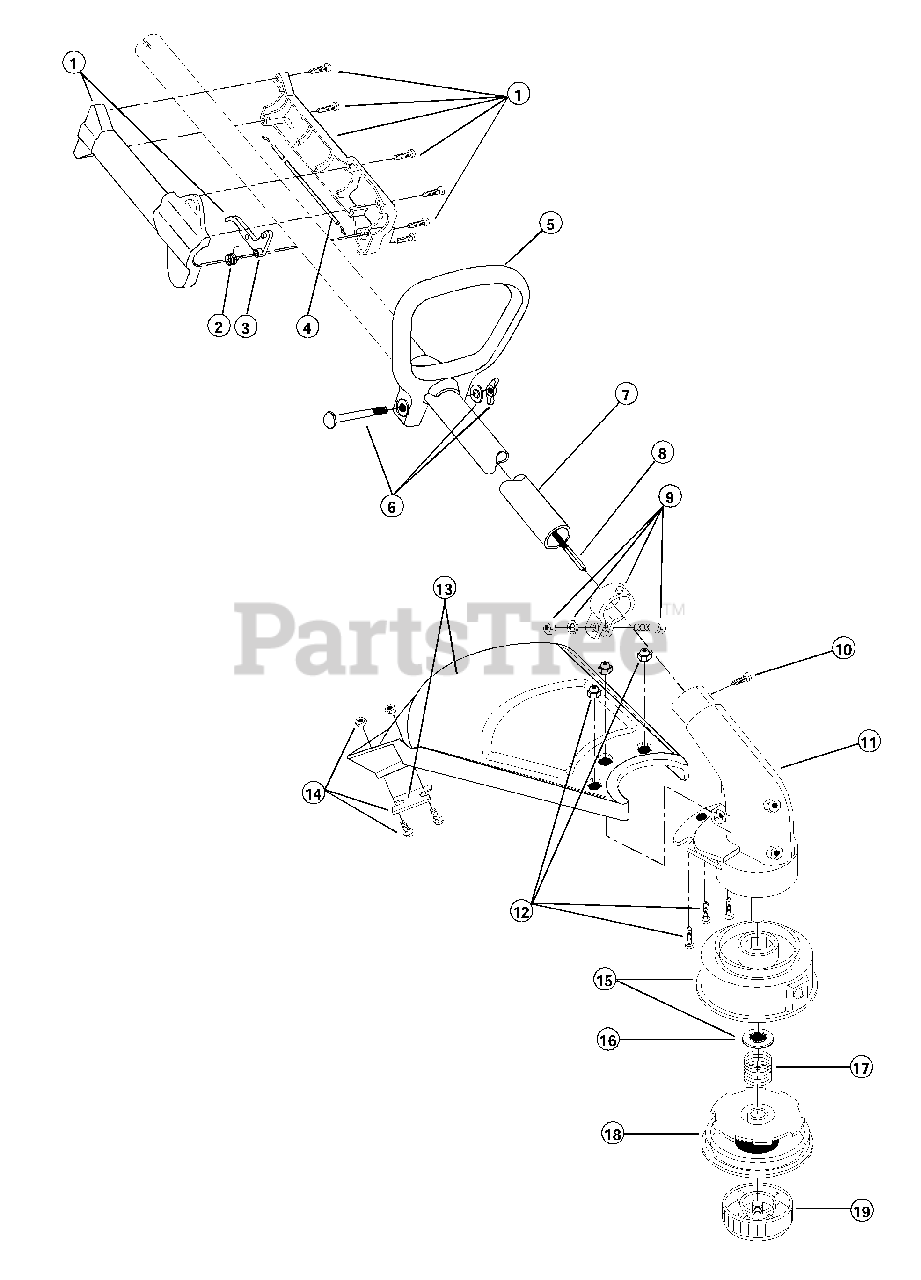

Boom And Trimmer Parts Parts Diagram

  • Title

1

MTD 791-182808

Throttle Housing & Trigger Assembly

Note: (includes 2 & 3)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$9.49

$

Usually ships in 3-6 days

0

3

MTD 791-182385

Throttle Trigger
(Superseded to 753-04295)

$

$

Not available

4

MTD 791-182068

Throttle Cable Assembly

$19.99

$

In Stock, only 2 left!

0

5

MTD 791-153064

D-Handle

$

$

Not available

6

MTD 791-181587

D-Handle Hardware Assembly

$18.99

$

In Stock, only 1 left!

0

7

MTD 791-181590

Drive Shaft Housing Assembly

$

$

Not available

8

MTD 791-182839

Flexible Drive Shaft
(Superseded to 753-04280)

$75.99

$

Usually ships in 3-6 days

0

9

MTD 791-153597

Lower Clamp Assembly

Note: (includes 10)

$15.99

$

Usually ships in 3-6 days

0

10

MTD 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 10

0

11

MTD 791-180549

Gear Box Assembly

Note: (includes 15)

$

$

Not available

12

MTD 791-180547

Shield Mounting Hardware

$

$

Not available

13

MTD 791-180548

Shield and Blade Assembly

Note: (includes 14)

$

$

Not available

14

MTD 791-180553

Blade Assembly

$14.99

$

In Stock, only 2 left!

0

15

MTD 791-153619

Outer Spool Assembly

Note: (includes 16)

$26.99

$

In Stock, only 1 left!

0

16

MTD 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

17

MTD 791-610317

Spring
(Superseded to 791-610317B)

$10.99

$

In Stock, Qty 20+

0

18

MTD 791-610318

Inner Reel
(Superseded to 753-1155)

$21.99

$

In Stock, Qty 20+

0

19

MTD 791-153066

Bump Head Knob Assembly
(Superseded to 791-153066B)

$13.99

$

In Stock, Qty 20+

0

MTD 791-610375

Replacement Line, 0.80 Diameter

Note: Optional Accessory; Not Shown

$

$

Not available

MTD 791-153577

Spool & Line Assembly
(Superseded to 791-153577B)

Note: Optional Accessory; Not Shown

$26.99

$

In Stock, only 4 left!

0

MTD 791-682075

Shoulder Strap Assembly
(Superseded to 791-682075B)

Note: Optional Accessory; Not Shown

$36.99

$

Usually ships in 3-6 days

0

MTD 791-147543

Ryobi 2-Cycle Oil

Note: Optional Accessory; Not Shown

$

$

Not available
