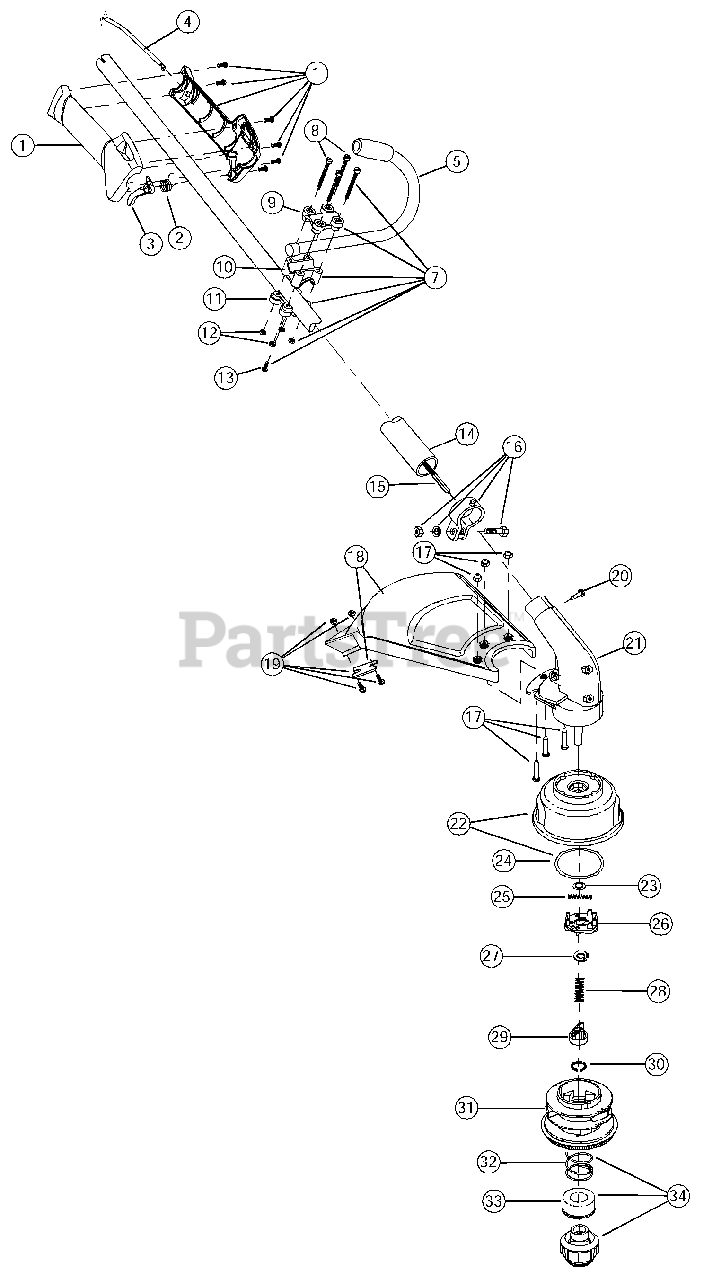

767r J (41ED76JG034) - Ryobi String Trimmer Boom & Trimmer Parts Parts Diagram

String Trimmer

Boom & Trimmer Parts Parts Diagram

  • Title

1

MTD 791-182808

Throttle Housing and Trigger Assembly

Note: (includes 2 & 3)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$9.49

$

Usually ships in 3-6 days

0

3

MTD 791-182385

Throttle Trigger
(Superseded to 753-04295)

$

$

Not available

4

MTD 753-04278

Throttle Cable
(Superseded to 746-04085A)

$9.99

$

In Stock, only 3 left!

0

5

MTD 791-683815

J-Handle Assembly

$

$

Not available

7

MTD 791-683295

Handle Bracket Assembly

Note: (includes 8-13)

$42.99

$

Usually ships in 3-6 days

0

8

MTD 791-181811

Screw

$4.49

$

Usually ships in 3-6 days

0

9

MTD 791-181812

Upper Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

10

MTD 791-181813

Middle Handle Clamp

$11.99

$

Usually ships in 3-6 days

0

11

MTD 791-181814

Lower Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

12

MTD 791-181815

Nut

$3.99

$

Usually ships in 3-6 days

0

13

MTD 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 10

0

14

MTD 753-04368

Drive Shaft Housing Assembly

$

$

Not available

15

MTD 753-04117

Flexible Drive Shaft

$59.99

$

Usually ships in 3-6 days

0

16

MTD 791-153597

Lower Clamp Assembly

Note: (includes 20)

$15.99

$

Usually ships in 3-6 days

0

17

MTD 791-180547

Guard Mounting Screw Assembly

$

$

Not available

18

MTD 791-180548

Guard & Blade Assembly

Note: (includes 19)

$

$

Not available

19

MTD 791-180553

Blade Assembly

$14.99

$

In Stock, only 2 left!

0

20

MTD 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 10

0

21

MTD 791-181566

Gearbox Assembly

Note: (includes 22)

$

$

Not available

22

MTD 791-181457

Outer Spool & Eyelet Assembly

$37.99

$

In Stock, only 3 left!

0

23

MTD 791-181458

Retainer

$4.49

$

In Stock, only 2 left!

0

24

MTD 791-181561

Thrust Washer

$4.49

$

In Stock, Qty 8

0

25

MTD 791-181459

Small Spring

$4.49

$

In Stock, Qty 19

0

26

MTD 753-04257

Slider

$6.99

$

In Stock, Qty 8

0

27

MTD 791-181532

E-Clip

$4.49

$

In Stock, Qty 16

0

28

MTD 791-181531

Spring

$4.49

$

In Stock, Qty 11

0

29

MTD 791-181462

Plunger

$

$

Not available

30

MTD 791-181463

C-Clip

$3.99

$

In Stock, Qty 5

0

31

MTD 791-181464

Inner Reel
(Superseded to 791-181460B)

$30.99

$

In Stock, Qty 7

0

32

MTD 791-181465

Large Spring

$

$

Currently unavailable

33

MTD 791-181467

Foam Seal & Washer

$

$

Not available

34

MTD 791-181468

Bumb Head Knob Assembly
(Superseded to 791-181468B)

Note: (includes 32 & 33)

$15.99

$

Usually ships in 3-6 days

0

MTD 791-181472

Replacement Line, 0.080 Diameter
(Superseded to 791-181460B)

Note: Optional Accessory; Item not shown

$30.99

$

In Stock, Qty 7

0

MTD 791-181470

Complete Cutting Head Assembly

Note: (includes 17 & 21-34); Optional Accessory; Item not shown

$

$

Not available

MTD 791-181460

Reel and Line Assembly
(Superseded to 791-181460B)

Note: Optional Accessory; Item not shown

$30.99

$

In Stock, Qty 7

0

MTD 791-682075

Shoulder Strap Assembly
(Superseded to 791-682075B)

Note: Optional Accessory; Item not shown

$36.99

$

Usually ships in 3-6 days

0
