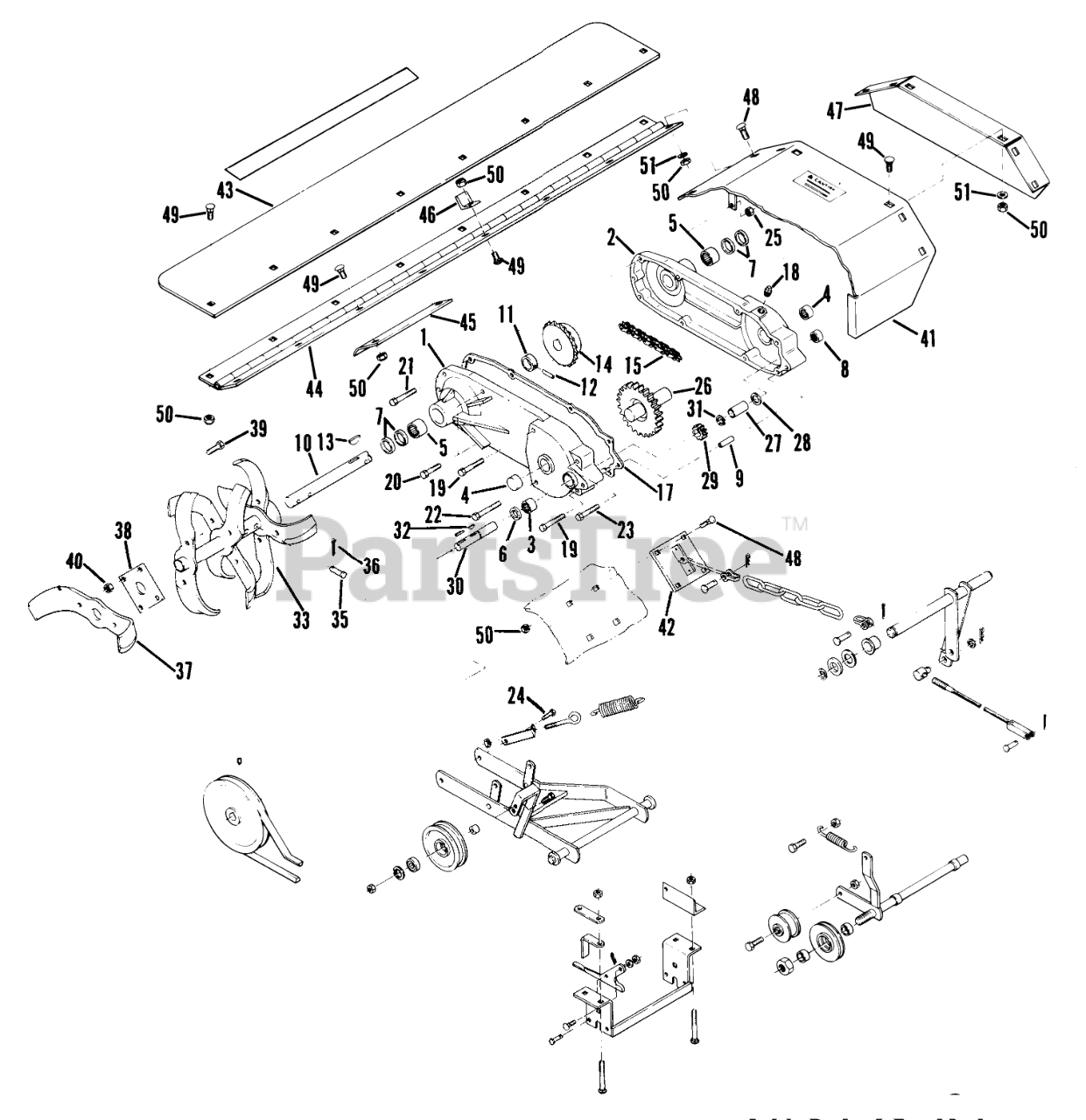

77-36TL01 - Toro 36" Tiller Attachment (1977) PARTS LIST FOR 36" TILLER FACTORY ORDER NUMBER 77-36TL01 Parts Diagram

36" Tiller Attachment

PARTS LIST FOR 36" TILLER FACTORY ORDER NUMBER 77-36TL01 Parts Diagram

  • Title

1

Toro 6836

R.H. Case (w/Bearings)

$

$

Not available

2

Toro 6839

L.H. Case (w/Bearings)

$

$

Not available

3

Toro 1540

BEARING-NEEDLE

$34.99

$

Usually ships in 3-6 days

0

4

Toro 1532

BEARING-NEEDLE

$50.99

$

In Stock, only 4 left!

0

5

Toro 6838

BEARING-NEEDLE

$54.99

$

In Stock, only 2 left!

0

6

Toro 100441

SEAL-OIL

$8.49

$

In Stock, only 3 left!

0

7

Toro 103118

SEAL

$21.99

$

In Stock, Qty 10

0

8

Toro 1529

BEARING-NEEDLE

$43.99

$

Usually ships in 3-6 days

0

9

Toro 933242

ROLL PIN 3/8 X 1

$

$

Not available

10

Toro 6842

Shaft-Tine

$

$

Not available

11

Toro 6843

Spacer

$

$

Not available

12

Toro 933232

ROLL PIN 5/16 X 2

$

$

Not available

13

Toro 937058

#128 Woodruff Key

$

$

Not available

14

Toro 6845

Sprocket 20T

$

$

Not available

15

Toro 6848

CHAIN

$274.99

$

Usually ships in 3-6 days

0

17

Toro 6851

Gasket

$

$

Not available

18

Toro 943421

SOLID PIPE PLUG

$

$

Not available

19

Toro 908143

H H C S
(Superseded to 323-39)

$11.99

$

In Stock, Qty 20+

0

20

Toro 908041

Bolt
(Superseded to 323-13)

$1.99

$

In Stock, Qty 16

0

21

Toro 908043

HHCS
(Superseded to 323-15)

$1.99

$

In Stock, Qty 19

0

22

Toro 908144

BOLT
(Superseded to 323-23)

$5.49

$

In Stock, Qty 20+

0

23

Toro 908149

Hex Bolt
(Superseded to 323-25)

$14.99

$

Usually ships in 3-6 days

0

24

Toro 908044

Bolt 3/8-16 x 4
(Superseded to 323-16)

$3.49

$

In Stock, Qty 20+

0

25

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

26

Toro 6894

Gear-Reduction
(Superseded to 106007)

$

$

Not available

26

Toro 6895

Reduction Gear

$

$

Not available

26

Toro 6898

Shaft

$

$

Not available

27

Toro 6963

Spacer
(Superseded to 704086)

$

$

Not available

28

Toro 1535

WASHER-THRUST

$10.99

$

In Stock, only 2 left!

0

29

Toro 3528

GEAR-PINION

$

$

Not available

30

Toro 104387

SHAFT-INPUT

$313.99

$

Usually ships in 3-6 days

0

31

Toro 936125

RING-SNAP, EXTERNAL
(Superseded to 32120-72)

$2.49

$

In Stock, Qty 20+

0

32

Toro 937014

Key
(Superseded to 3257-5)

$5.49

$

In Stock, Qty 20+

0

33

Toro 9204

Tine R.H.
(Superseded to 93-1602-03)

$797.99

$

Usually ships in 3-6 days

0

33

Toro 9205

Tine L.H.
(Superseded to 93-1603-03)

$

$

Not available

35

Toro 9208

PIN-CLEVIS

$

$

Not available

36

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

37

Toro 9206

R.H. Tine
(Superseded to 92-1653-03)

$

$

Not available

37

Toro 9207

L.H. Tine
(Superseded to 93-1604-03)

$

$

Not available

38

Toro 9203

Plate-Tine Mounting
(Superseded to 93-1601-03)

$

$

Not available

39

Toro 908046

H H C S
(Superseded to 324-4)

$3.99

$

Usually ships in 3-6 days

0

40

Toro 915114

Nut
(Superseded to 3296-48)

$0.99

$

In Stock, Qty 20+

0

41

Toro 105546

Tiller Tine Shield

$

$

Not available

42

Toro 105549

Lift Plate

$

$

Not available

43

Toro 104437

Rear Shield

$

$

Not available

44

Toro 104438

Hinge

$

$

Not available

45

Toro 104436

Lower Tine Guard Stop

$

$

Not available

46

Toro 2595

Stop Bracket

$

$

Currently unavailable

47

Toro 104434

Cover-End
(Superseded to 93-1605-01)

$

$

Not available

48

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

49

Toro 900036

CARRIAGE BOLT -4

$1.99

$

Usually ships in 3-6 days

0

50

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

51

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 10

0
