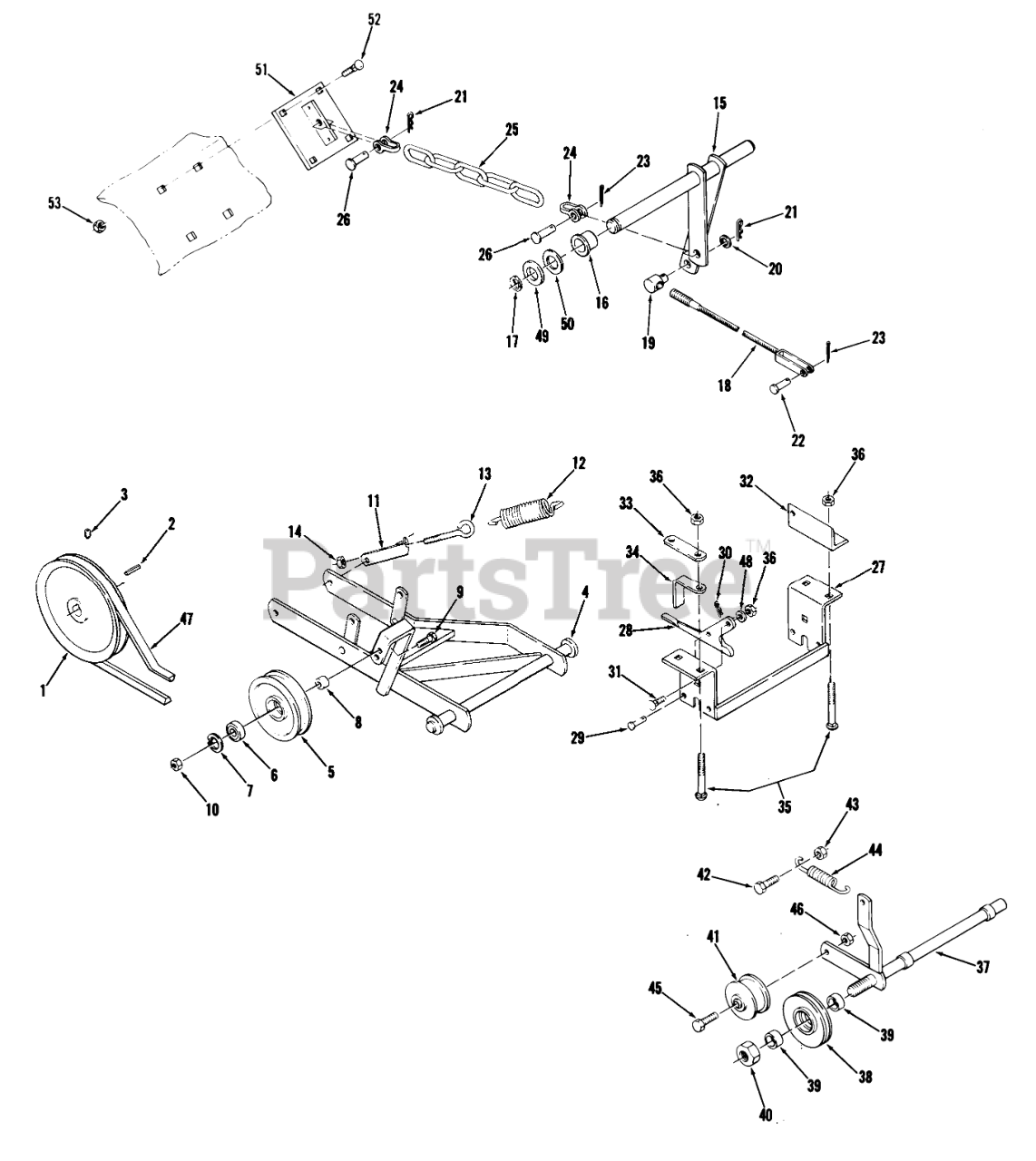

77-36TL02 - Toro 36" Tiller Attachment (1977) PARTS LIST FOR 36" TILLER FACTORY ORDER NUMBER 77-36TL02 Parts Diagram

36" Tiller Attachment

PARTS LIST FOR 36" TILLER FACTORY ORDER NUMBER 77-36TL02 Parts Diagram

  • Title

1

Toro 6844

Pulley
(Superseded to 93-0345)

$164.99

$

Usually ships in 3-6 days

0

2

Toro 1005

KEY-STRAIGHT
(Superseded to 5-1077)

$6.49

$

In Stock, only 2 left!

0

3

Toro 7977

Setscrew-Square Head

$

$

Not available

4

Toro 105543

Hitch
(Superseded to 93-1607-01)

$398.99

$

Usually ships in 3-6 days

0

5

Toro 6740

PULLEY IDLER

$

$

Not available

6

Toro 4567

BEARING

$99.99

$

Usually ships in 3-6 days

0

7

Toro 936024

INTERNAL SNAPRING

$3.49

$

Usually ships in 3-6 days

0

8

Toro 2138

SPACER

$

$

Not available

9

Toro 911404

HEX HD CAP SCREW

$0.99

$

In Stock, Qty 8

0

10

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

11

Toro 104448

Bracket-Spring
(Superseded to 93-1606-03)

$42.99

$

Usually ships in 3-6 days

0

12

Toro 4629

SPRING

$70.99

$

In Stock, only 2 left!

0

13

Toro 100653

EYEBOLT

$22.99

$

Usually ships in 3-6 days

0

14

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

15

Toro 105539

Lever Assy.

$

$

Not available

16

Toro 6254

BUSHING

$18.99

$

Usually ships in 3-6 days

0

17

Toro 5618

E-RING

$0.99

$

In Stock, Qty 15

0

18

Toro 105542

ASSY-LIFT CABLE

$171.99

$

Usually ships in 3-6 days

0

19

Toro 104524

TRUNNION-CLUTCH ROD

$43.99

$

Usually ships in 3-6 days

0

20

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

21

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 14

0

22

Toro 932120

Pin
(Superseded to 9321204)

$4.99

$

Usually ships in 3-6 days

0

23

Toro 932000

Cotter Pin
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 10

0

24

Toro 105820

Clevis
(Superseded to 79-2280)

$19.99

$

Usually ships in 3-6 days

0

25

Toro 105550

CHAIN-LIFT

$

$

Not available

26

Toro 105821

Clevis Pin
(Superseded to 9329584)

$

$

Not available

27

Toro 104659

Bracket
(Superseded to 104659-01)

$171.99

$

Usually ships in 3-6 days

0

28

Toro 104657

PLATE-LATCHING

$36.99

$

Usually ships in 3-6 days

0

29

Toro 932120

Pin
(Superseded to 9321204)

$4.99

$

Usually ships in 3-6 days

0

30

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 14

0

31

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 20+

0

32

Toro 104845

Link
(Superseded to 108485-01)

$

$

Not available

33

Toro 3697

BRACKET-REAR LINK MOUNTING

$33.99

$

Usually ships in 3-6 days

0

34

Toro 7713

SPACER-BRACKET

$

$

Not available

35

Toro 900073

Bolt-Carriage
(Superseded to 3231-11)

$5.49

$

In Stock, only 4 left!

0

36

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

37

Toro 104089

Front Idler
(Superseded to 108609)

$

$

Not available

38

Toro 104974

Pulley-V
(Superseded to 92-7103)

$53.99

$

In Stock, only 4 left!

0

39

Toro 7038

Spacer

$9.99

$

Usually ships in 3-6 days

0

40

Toro 915640

Nut
(Superseded to 3296-15)

$2.99

$

In Stock, Qty 9

0

41

Toro MW8821

IDLER PULLEY

$22.99

$

In Stock, only 1 left!

0

42

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

43

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

44

Toro 6135

SPRING-BRAKE

$10.99

$

In Stock, only 4 left!

0

45

Toro 960179

BOLT

$0.99

$

Usually ships in 3-6 days

0

46

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

47

Toro 1599

V BELT

$68.99

$

Usually ships in 3-6 days

0

48

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

49

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

50

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

51

Toro 105549

Lift Plate

$

$

Not available

52

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0
