77-42VX01 - Toro 42" Lawn Vacuum Attachment (1977) PARTS LIST FOR LAWN VACUUM VEHICLE IDENTIFICATION NUMBER 77-42VX01 Parts Diagram

42" Lawn Vacuum Attachment

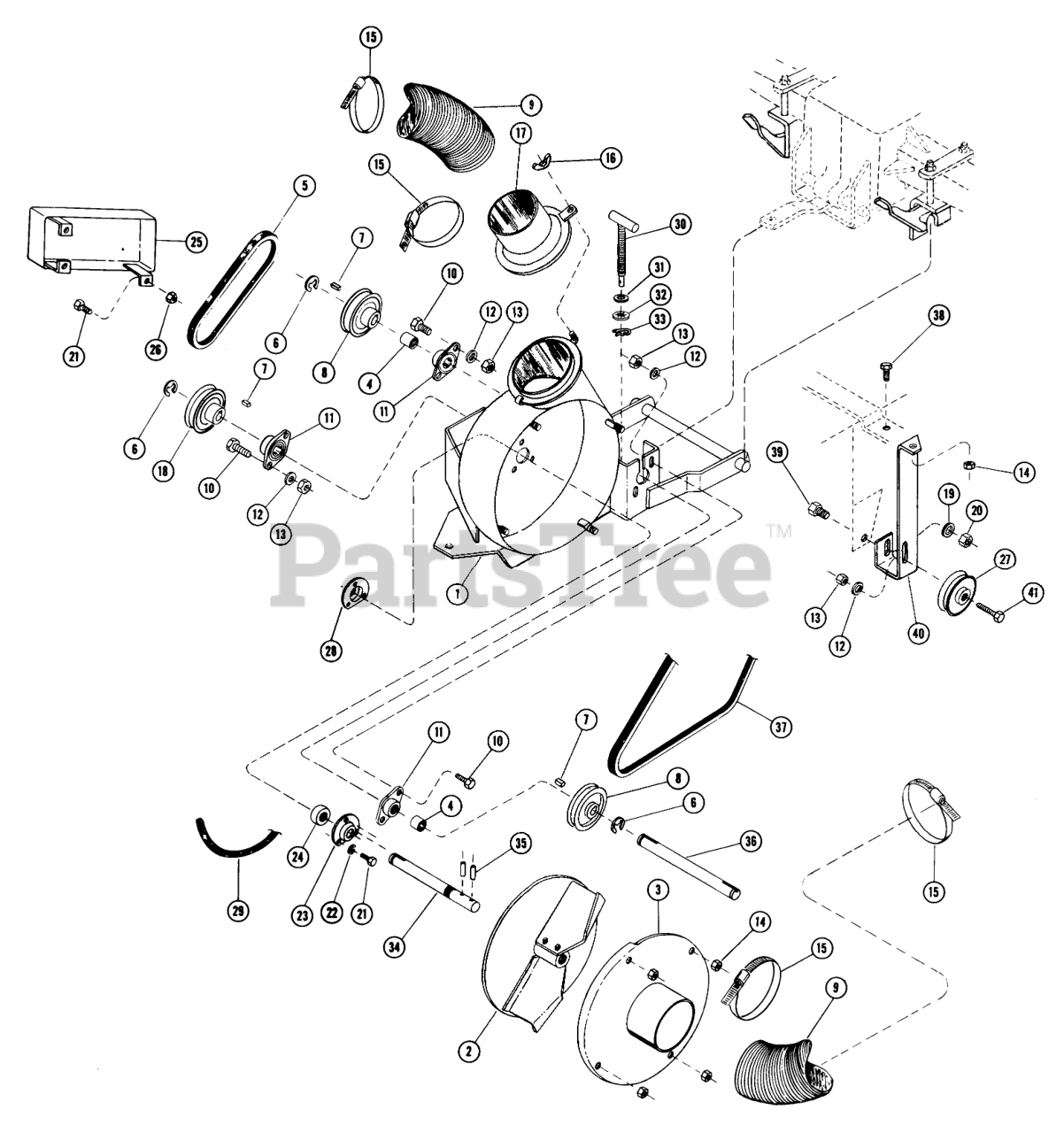

PARTS LIST FOR LAWN VACUUM VEHICLE IDENTIFICATION NUMBER 77-42VX01 Parts Diagram

  • Title

1

Toro 106178

Impeller Housing Assembly

$

$

Currently unavailable

2

Toro 102519

Impeller

$

$

Not available

3

Toro 102520

Front Plate

$

$

Not available

4

Toro 102521

SPACER

$

$

Not available

5

Toro 1580

V BELT

$

$

Not available

6

Toro 102522

E-Ring 3/4

$

$

Not available

7

Toro 6366

KEY

$5.49

$

Usually ships in 3-6 days

0

8

Toro 102524

PULLEY

$

$

Not available

8

Toro 909862

Set Screw
(Superseded to 3246-2)

$0.99

$

Usually ships in 3-6 days

0

9

Toro 102525

6" Dia. Hose x 51"

$

$

Not available

10

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, Qty 19

0

11

Toro 102526

Jackshaft Bearing
(Superseded to 107791)

$

$

Not available

12

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

13

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

14

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

15

Toro 102528

CLAMP

$12.99

$

Usually ships in 3-6 days

0

16

Toro 915585

WING NUT

$0.99

$

Usually ships in 3-6 days

0

17

Toro 102529

TRANSITION HOSE

$

$

Not available

18

Toro 102530

Impeller Pulley

$

$

Not available

19

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

20

Toro 915115

Eslok Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

21

Toro 908001

Bolt
(Superseded to 321-2)

$3.49

$

In Stock, only 3 left!

0

22

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, Qty 5

0

23

Toro 102533

BEARING-CUP

$38.99

$

Usually ships in 3-6 days

0

24

Toro 102534

BEARING-BALL

$

$

Not available

25

Toro 106179

Belt Cover Assembly

$

$

Currently unavailable

25

Toro 103174

DECAL-WHEEL HORSE

$

$

Not available

26

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 10

0

27

Toro 102545

IDLER

$

$

Not available

28

Toro 102536

BEARING-CUP W/NUTS

$

$

Not available

29

Toro 102537

Seal

$

$

Not available

30

Toro 102538

Adjustment Screw

$

$

Not available

31

Toro 102539

7/16 Flat Washer

$

$

Not available

32

Toro 102540

7/16 Push-Nut PS-438014

$

$

Not available

33

Toro 933509

Hairpin Cotter

$

$

Currently unavailable

34

Toro 102542

SHAFT

$

$

Not available

35

Toro 933215

ROLL PIN 1/4 X 1-1/4

$1.99

$

Usually ships in 3-6 days

0

36

Toro 102543

JACK SHAFT

$

$

Not available

37

Toro 1594

V-BELT

$39.99

$

In Stock, Qty 7

0

38

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

39

Toro 908057

Bolt
(Superseded to 325-4)

$1.49

$

In Stock, only 2 left!

0

40

Toro 102544

Idler Mounting Bracket

$

$

Not available

41

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0
