7700 - Paramount Blower, Electric BLOWER ASSEMBLY Parts Diagram

Blower, Electric

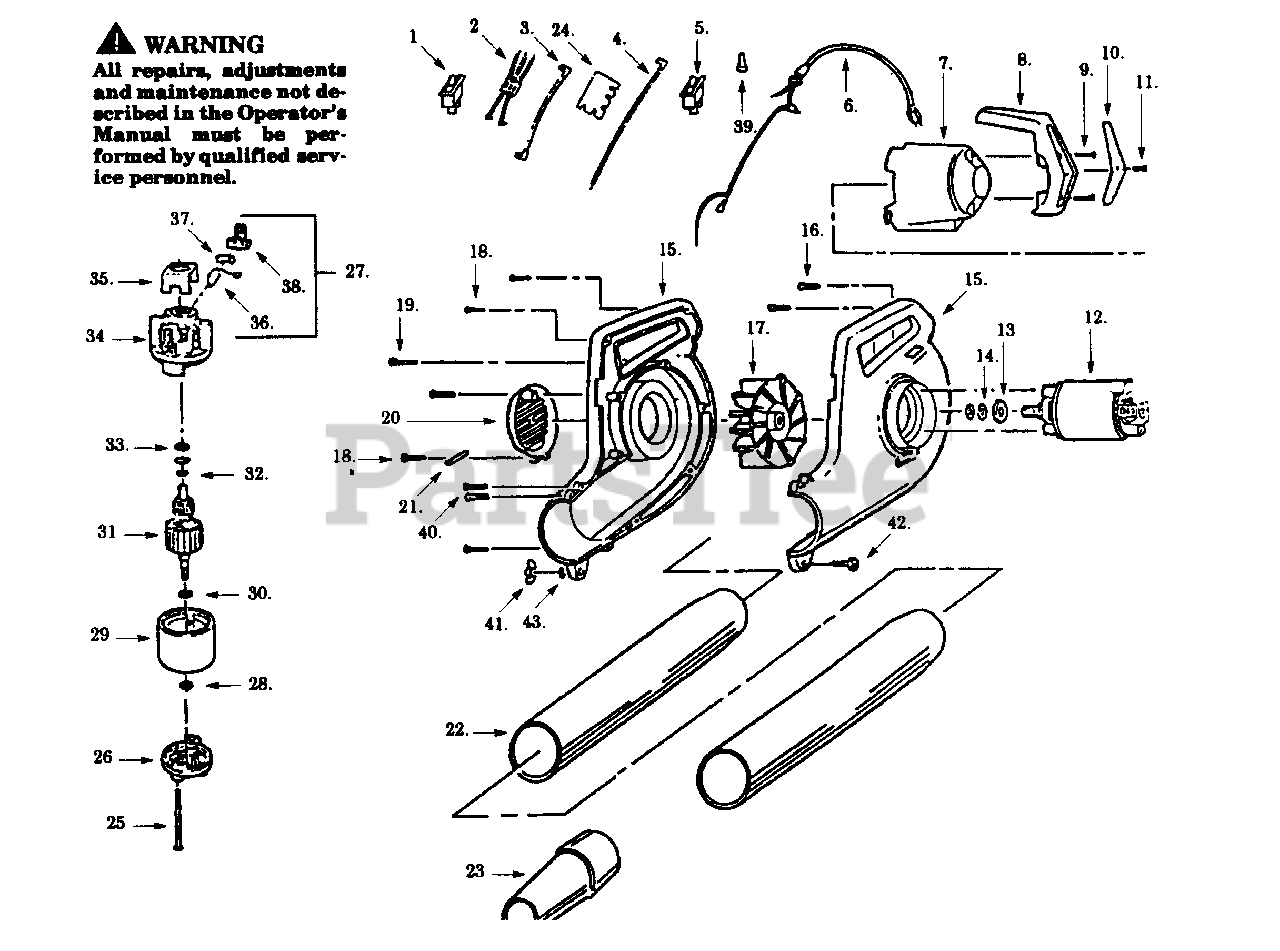

BLOWER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534158303

On-Off Switch

$

$

Not available

2

Poulan 534335300

P.C. Board Ass'y.

$24.99

$

Usually ships in 3-10 days

0

3

Poulan 534335000

Lead Wire Ass'y.

$

$

Not available

4

Poulan 534335001

Lead Wire Ass'y.

$

$

Not available

5

Poulan 534158302

Speed Switch

$

$

Not available

6

Poulan 534335200

Power Cord Ass'y.

$12.99

$

Usually ships in 3-10 days

0

7

Poulan 534319601

Motor Cover

$

$

Not available

8

Poulan 534319701

Handle

$8.99

$

Usually ships in 3-10 days

0

9

Poulan 534136402

Screw

$2.49

$

Usually ships in 3-10 days

0

10

Poulan 534404355

Plate

$2.49

$

Usually ships in 3-10 days

0

11

Poulan 534193700

Screw

$

$

Not available

12

Poulan 534225010

Motor

$

$

Not available

13

Poulan 534136100

Washer

$

$

Not available

14

Poulan 534747002

Retaining Ring

$2.49

$

Usually ships in 3-10 days

0

15

Poulan 534334711

L.H./R.H. Housing

$

$

Not available

16

Poulan 534136401

Screw

$2.49

$

Usually ships in 3-10 days

0

17

Poulan 534398315

Impeller

$

$

Not available

18

Poulan 534184700

Screw

$2.49

$

Usually ships in 3-10 days

0

19

Poulan 534222400

Screw

$2.49

$

Usually ships in 3-10 days

0

20

Poulan 534319802

Inlet Cover

$

$

Not available

21

Poulan 534327200

Hinge Pin

$

$

Not available

22

Poulan 534352705

Outlet Tube

$

$

Not available

23

Poulan 534333705

Adapter

$

$

Not available

24

Poulan 534334800

Mounting Board

$

$

Not available

25

Poulan 534228700

Screw

$

$

Not available

26

Poulan 534207101

Endbell (Output)

$

$

Not available

27

Poulan 534450400

Brush Kit (Inc. 36,37,38)

$

$

Not available

28

Poulan 534238903

Washer

$

$

Not available

29

Poulan 534227001

Field Assembly

$30.99

$

Usually ships in 3-10 days

0

30

Poulan 534246700

Retainer Ring

$1.49

$

Usually ships in 3-10 days

0

31

Poulan 534225110

Armature

$42.99

$

Usually ships in 3-10 days

0

32

Poulan 534747002

Retainer Ring

$2.49

$

Usually ships in 3-10 days

0

33

Poulan 534228800

Washer

$2.49

$

Usually ships in 3-10 days

0

34

Poulan 534227501

Endbell (Brush)

$

$

Not available

35

Poulan 534226000

Insulator

$

$

Not available

36

Poulan 534227800

Brush

$

$

Not available

37

Poulan 534228000

Brush Spring

$

$

Not available

38

Poulan 534227700

Brush Holder

$

$

Not available

39

Poulan 534561000

Connector

$

$

Not available

40

Poulan 534222402

Screw

$3.99

$

In Stock, only 3 left!

0

41

Poulan 534352300

Wing Nut

$

$

Not available

42

Poulan 534352400

Screw

$2.49

$

In Stock, only 1 left!

0

43

Poulan 534356900

Washer

$

$

Not available
