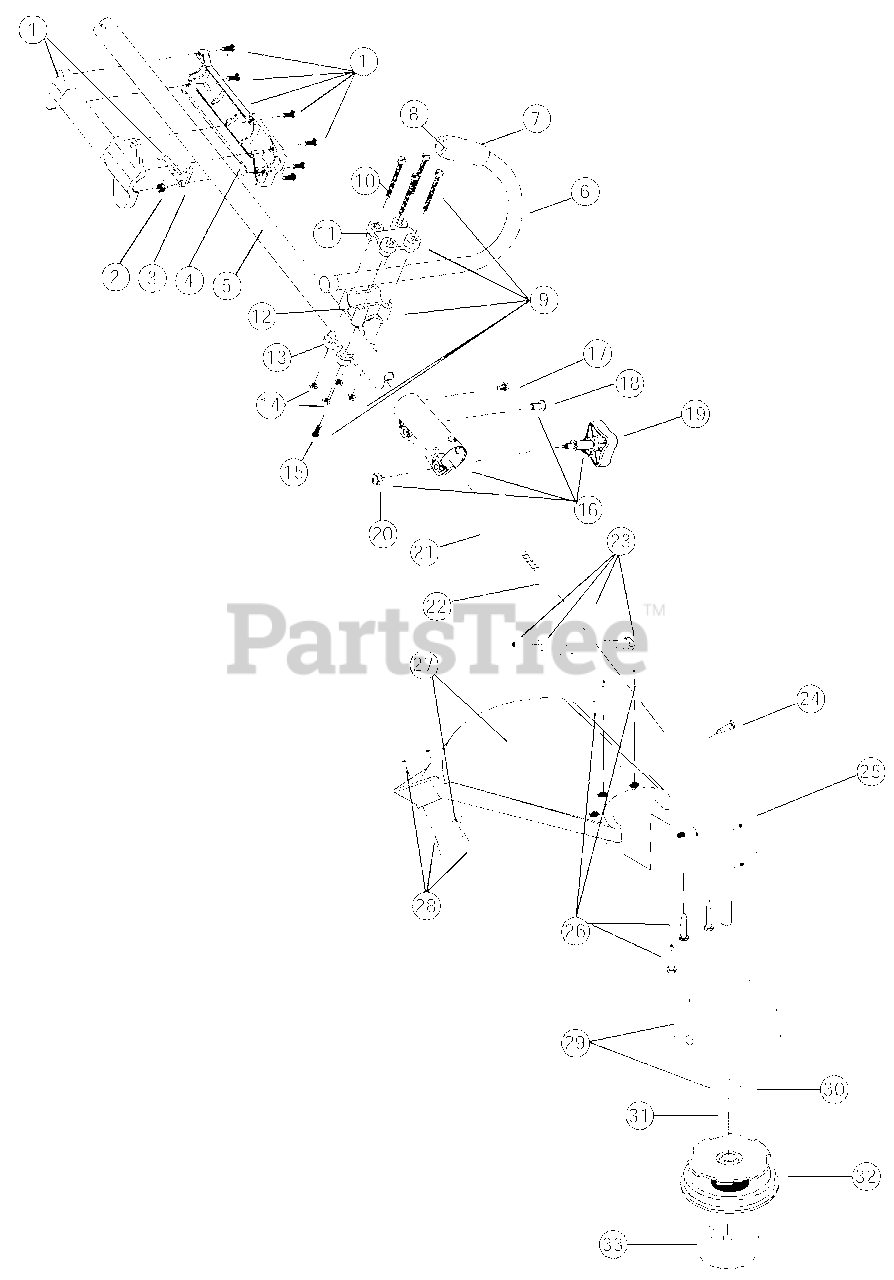

770r EB (41AD7EBC034) - Ryobi String Trimmer Boom And Trimmer Parts Parts Diagram

String Trimmer

Boom And Trimmer Parts Parts Diagram

  • Title

1

MTD 753-04279

Throttle Housing & Trigger Assembly

Note: (includes 2 & 3)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$9.49

$

Usually ships in 3-6 days

0

3

MTD 791-180975

Throttle Trigger
(Superseded to 791-181807)

$9.49

$

In Stock, Qty 9

0

4

MTD 791-182068

Throttle Cable Assembly

$19.99

$

In Stock, only 2 left!

0

5

MTD 753-04344

Upper Drive Shaft Housing Assembly

$79.99

$

In Stock, Qty 8

0

6

MTD 791-180687

J-Handle Assembly

Note: (includes 7 & 8)

$38.99

$

Usually ships in 3-6 days

0

7

MTD 791-612831

Grip

$11.99

$

Usually ships in 3-6 days

0

8

MTD 791-612021

Tube Closure
(Superseded to 1925)

$2.49

$

Usually ships in 3-6 days

0

9

MTD 791-683295B

Handle Bracket Assembly

Note: (includes 10-15)

$

$

Currently unavailable

10

MTD 791-181811

Screw

$4.49

$

Usually ships in 3-6 days

0

11

MTD 791-181812

Upper Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

12

MTD 791-181813

Middle Handle Clamp

$11.99

$

Usually ships in 3-6 days

0

13

MTD 791-181814

Lower Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

14

MTD 791-181815

Nut

$3.99

$

Usually ships in 3-6 days

0

15

MTD 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 11

0

16

MTD 791-181616

Click-Link Coupler

Note: (includes 17-20)

$

$

Currently unavailable

17

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 15

0

18

MTD 791-181617

Bolt

$4.99

$

In Stock, Qty 13

0

19

MTD 791-181618B

Adjustment Knob
(Superseded to 791-181981)

$7.49

$

In Stock, only 1 left!

0

20

MTD 791-181886

Knob Retaining Nut

$3.49

$

In Stock, only 4 left!

0

21

MTD 753-1212

Lower Drive Shaft Housing Assembly
(Superseded to 753-04089)

$49.99

$

Usually ships in 3-6 days

0

22

MTD 791-181852

Lower Flexible Drive Shaft

$58.99

$

In Stock, only 1 left!

0

23

MTD 791-153597

Lower Clamp Assembly

Note: (includes 24)

$15.99

$

Usually ships in 3-6 days

0

24

MTD 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 11

0

25

MTD 791-180549

Gearbox Assembly

$

$

Not available

26

MTD 791-180547

Shield Mounting Hardware

$

$

Not available

27

MTD 791-180548

Shield and Blade Assembly

Note: (includes 28)

$

$

Not available

28

MTD 791-180553

Blade Assembly

$14.99

$

In Stock, only 2 left!

0

29

MTD 791-153619

Outer Spool and Eyelet Assembly

$26.99

$

In Stock, only 1 left!

0

30

MTD 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

31

MTD 791-610317B

Spring

$10.99

$

In Stock, Qty 20+

0

32

MTD 791-610318

Inner Reel
(Superseded to 753-1155)

$21.99

$

In Stock, Qty 20+

0

33

MTD 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 20+

0

MTD 791-610375

Replacement Line, 0.080 Diameter

Note: Optional Accessory; Item not shown

$

$

Not available

MTD 791-153577B

Reel and Line Assembly

Note: Optional Accessory; Item not shown

$26.99

$

In Stock, only 4 left!

0

MTD 791-153700

Bump Head Assembly

Note: (includes 29-33); Optional Accessory; Item not shown

$

$

Not available

MTD 791-682075B

Shoulder Strap Assembly

Note: Optional Accessory; Item not shown

$36.99

$

Usually ships in 3-6 days

0

MTD 791-147543

Ryobi 2-Cycle Oil

Note: Optional Accessory; Item not shown

$

$

Not available
