77281 (2000) - Toro 48" Z Master Zero-Turn Mower (SN: 414300000 - 415203499) Throttle, Choke and Guards Assembly Parts Diagram

48" Z Master Zero-Turn Mower

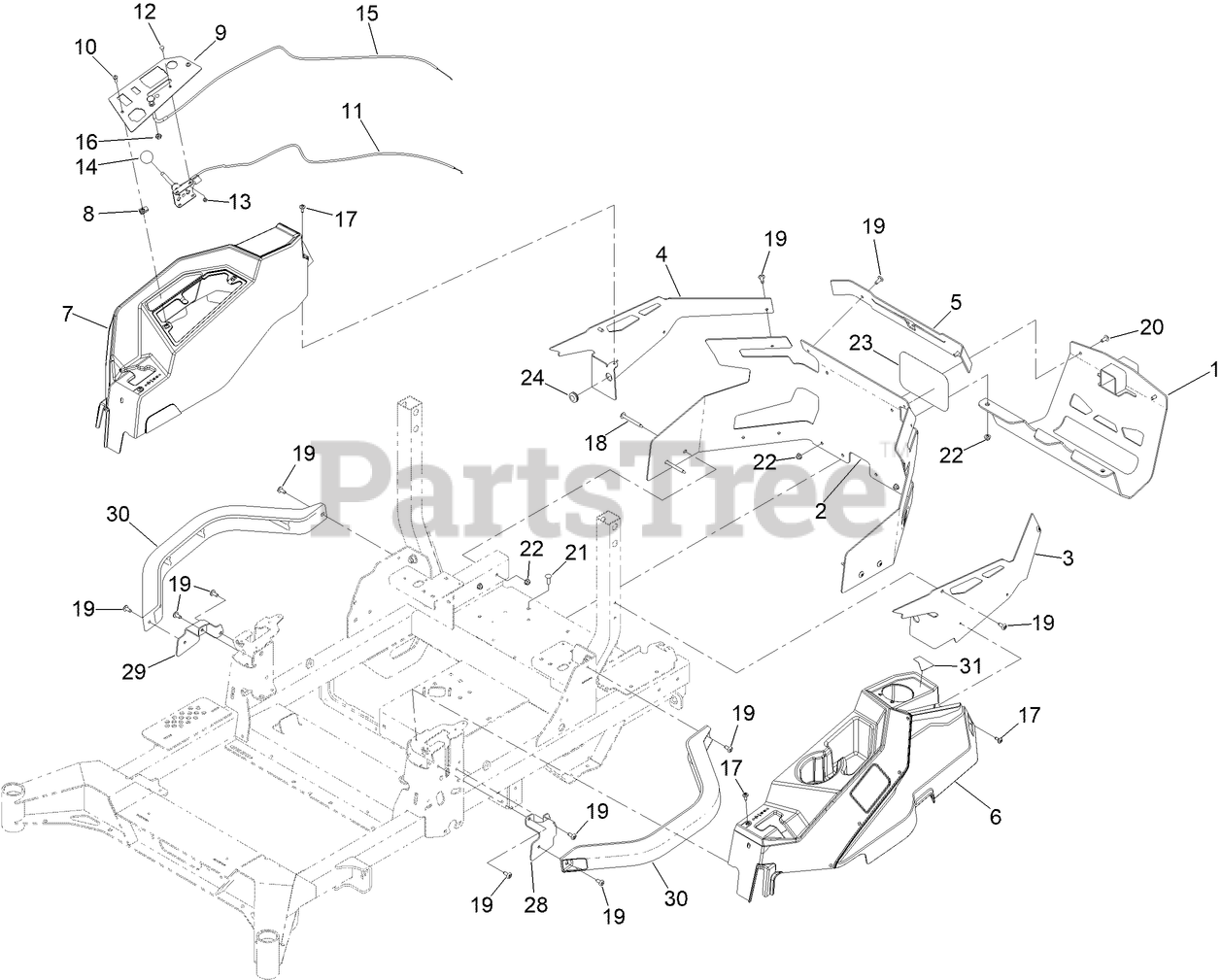

Throttle, Choke and Guards Assembly Parts Diagram

  • Title

1

Toro 147-2408-03

MUFFLER GUARD ASM [BLACK]

$217.99

$

Usually ships in 0 days

0

2

Toro 145-7022

REAR GUARD ASM

$324.99

$

Usually ships in 0 days

0

3

Toro 145-8443-01

GUARD-REAR, LH

$62.99

$

Usually ships in 0 days

0

4

Toro 145-8444-01

GUARD-REAR, RH

$62.99

$

Usually ships in 0 days

0

5

Toro 145-7007-01

GUARD-REAR, TOP

$43.99

$

Usually ships in 0 days

0

6

Toro 147-2352

LH POD ASM

$85.99

$

Usually ships in 0 days

0

7

Toro 147-2353

RH POD ASM

$85.99

$

Usually ships in 0 days

0

8

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

9

Toro 145-8498-03

PANEL-CONTROL

$56.99

$

Usually ships in 0 days

0

10

Toro 138-0689

SCREW-PH

$1.49

$

Usually ships in 3-6 days

0

11

Toro 139-6734

CABLE-CONTROL, THROTTLE

$50.99

$

In Stock, only 3 left!

0

12

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 16

0

13

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

14

Toro 1-603175

KNOB-BALL

$12.99

$

In Stock, only 2 left!

0

15

Toro 139-6735

CABLE-CONTROL, CHOKE

$42.99

$

Usually ships in 3-6 days

0

16

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

17

Toro 120-7950

SCREW-SHOULDER

$2.99

$

Usually ships in 3-6 days

0

18

Toro 126-6267

SCREW-TORX

$2.99

$

Usually ships in 3-6 days

0

19

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 6

0

20

Toro 126-6268

SCREW-TORX

$1.99

$

In Stock, only 2 left!

0

21

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 3 left!

0

22

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, only 4 left!

0

23

Toro 67-7320

DECAL

$39.99

$

In Stock, only 1 left!

0

24

Toro 112-7069

GROMMET

$3.99

$

Usually ships in 3-6 days

0

28

Toro 145-8481-01

BRACKET-MOUNT, LH

$19.99

$

Usually ships in 0 days

0

29

Toro 145-8484-01

BRACKET-MOUNT, RH

$19.99

$

Usually ships in 0 days

0

30

Toro 147-2385-01

TUBE-POD

$77.99

$

Usually ships in 0 days

0

31

Toro 147-2399

DECAL-FUEL FILL

$2.99

$

Usually ships in 0 days

0
