77281 (2000) - Toro 48" Z Master Zero-Turn Mower (SN: 415260652 - 999999999) Deck Assembly Parts Diagram

48" Z Master Zero-Turn Mower

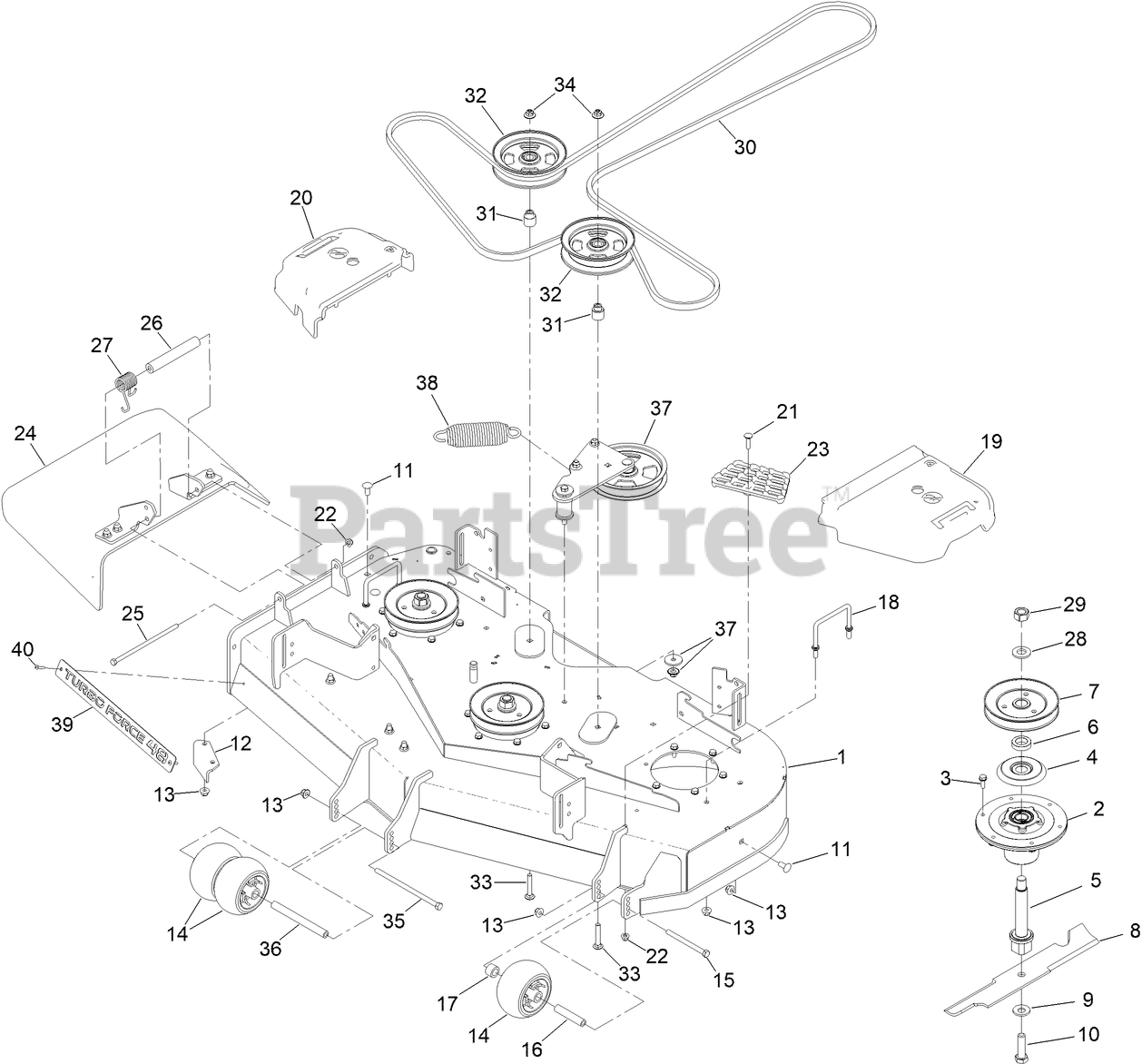

Deck Assembly Parts Diagram

  • Title

1

Toro 147-7371

DECK DECAL ASM

$2226.99

$

Usually ships in 0 days

0

2

Toro 139-2357

SPINDLE ASM

$108.99

$

In Stock, Qty 20+

0

3

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

4

Toro 117-7210

SHIELD-BEARING

$11.99

$

In Stock, Qty 20+

0

5

Toro 133-2126

SHAFT-SPINDLE

$45.99

$

In Stock, only 2 left!

0

6

Toro 147-2381

SPACER-PULLEY

$2.99

$

Usually ships in 3-6 days

0

7

Toro 138-6065

SHEAVE,BLADE DRIVE 5.91

$23.99

$

In Stock, only 2 left!

0

8

Toro 133-2137

BLADE-ROTARY, 16.5IN (HI FLOW)

$31.99

$

In Stock, Qty 11

0

9

Toro 125-1736

WASHER-BELLEVILLE

$4.49

$

In Stock, Qty 20+

0

10

Toro 51-4060

SCREW-BLADE

$8.49

$

In Stock, Qty 20+

0

11

Toro 3231-27

SCREW-CARR

$4.99

$

In Stock, Qty 6

0

12

Toro 107-8541-01

BAFFLE-DISCHARGE

$22.99

$

Usually ships in 3-6 days

0

13

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

15

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

16

Toro 133-2129

TUBE-SHAFTING

$15.99

$

In Stock, only 2 left!

0

17

Toro 133-2128

TUBE-SPACER

$18.99

$

In Stock, only 2 left!

0

18

Toro 109-6982

WIREFORM-COVER

$12.99

$

In Stock, only 4 left!

0

19

Toro 109-6936

COVER-BELT, LH

$41.99

$

In Stock, Qty 14

0

20

Toro 109-6935

COVER-BELT, RH

$41.99

$

In Stock, Qty 8

0

21

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

22

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

23

Toro 126-4781-03

STEP-DECK

$30.99

$

In Stock, only 2 left!

0

24

Toro 144-2635

RUBBER DEFLECTOR ASM

$175.99

$

Usually ships in 3-6 days

0

25

Toro 322-50

SCREW-HH

$6.99

$

In Stock, Qty 10

0

26

Toro 105-4622

SPACER

$11.99

$

In Stock, only 4 left!

0

27

Toro 108-4052

SPRING-TORSION

$26.99

$

In Stock, Qty 5

0

28

Toro 103-2802

WASHER

$5.49

$

In Stock, Qty 20+

0

29

Toro 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

30

Toro 144-0358

BELT-V

$176.99

$

Usually ships in 3-6 days

0

31

Toro 139-8061

BUSHING, IDLER

$6.99

$

In Stock, Qty 12

0

32

Toro 132-9425

PULLEY-IDLER, FLAT

$49.99

$

In Stock, Qty 20+

0

33

Toro 3231-7

SCREW-CARR

$7.49

$

In Stock, Qty 20+

0

34

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

35

Toro 108-5388

SCREW-HH

$17.99

$

In Stock, Qty 20+

0

36

Toro 98-5967

SPACER-WHEEL

$17.99

$

In Stock, Qty 20+

0

37

Toro 139-1087

IDLER ARM ASM

$152.99

$

In Stock, only 1 left!

0

38

Toro 116-6317

SPRING-EXTENSION

$29.99

$

In Stock, Qty 20+

0

39

Toro 147-4976-03

PLATE-TURBO FORCE [BLACK]

$

$

Currently unavailable

40

Toro 130-8451

RIVET-TRIFOLD

$1.49

$

Usually ships in 3-6 days

0
