77285 (2000) - Toro 60" Z Master Zero-Turn Mower (SN: 415100000 - 415229372) Frame Assembly Parts Diagram

60" Z Master Zero-Turn Mower

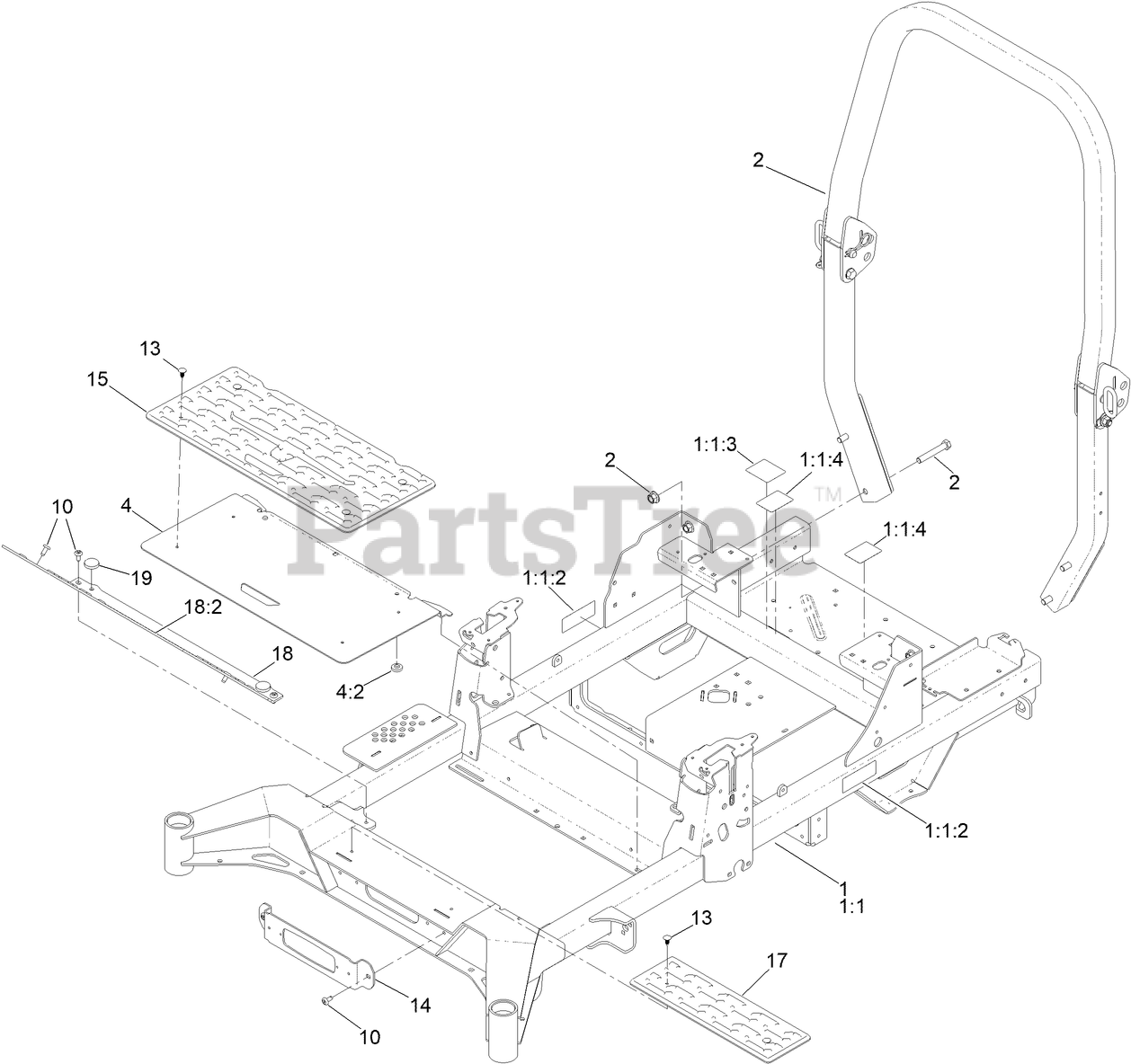

Frame Assembly Parts Diagram

  • Title

1

Toro 145-7031

FRAME ASM

$2741.99

$

Usually ships in 0 days

0

1:1

FRAME-60

Note: Not serviced separately

$

$

Not available

1:1:2

Toro 126-4363

DECAL-WARNING

$18.99

$

Usually ships in 3-6 days

0

1:1:3

Toro 109-6014

DECAL-ROUTING, BELT

$7.99

$

In Stock, only 4 left!

0

1:1:4

Toro 147-4982

DECAL-BYPASS

$2.99

$

Usually ships in 0 days

0

2

Toro 139-8062

ASM-ROPS

$590.99

$

Usually ships in 3-6 days

0

4

Toro 138-6098

ASM-FLOOR PAN

$121.99

$

Usually ships in 3-6 days

0

4:2

Toro 109-9233

BUMPER-PUSH-IN, RUBBER

$5.49

$

In Stock, Qty 14

0

10

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 11

0

13

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

14

Toro 140-4994-01

BRACKET-LIGHT

$20.99

$

Usually ships in 3-6 days

0

15

Toro 140-7950

FLOORMAT-FIXED SEAT

$55.99

$

Usually ships in 3-6 days

0

17

Toro 140-4992

STEP

$21.99

$

Usually ships in 3-6 days

0

18

Toro 140-4995

TOEBOARD

$170.99

$

Usually ships in 3-6 days

0

18:2

Toro 126-8383

DECAL-DANGER

$9.49

$

In Stock, only 1 left!

0

19

Toro 109-9233

BUMPER-PUSH-IN, RUBBER

$5.49

$

In Stock, Qty 14

0
