77291 TA (2000) - Toro 52" Z Master Zero-Turn Mower (SN: 414801613 - 415199999) RH Transaxle Assembly No. 145-8425 Parts Diagram

52" Z Master Zero-Turn Mower

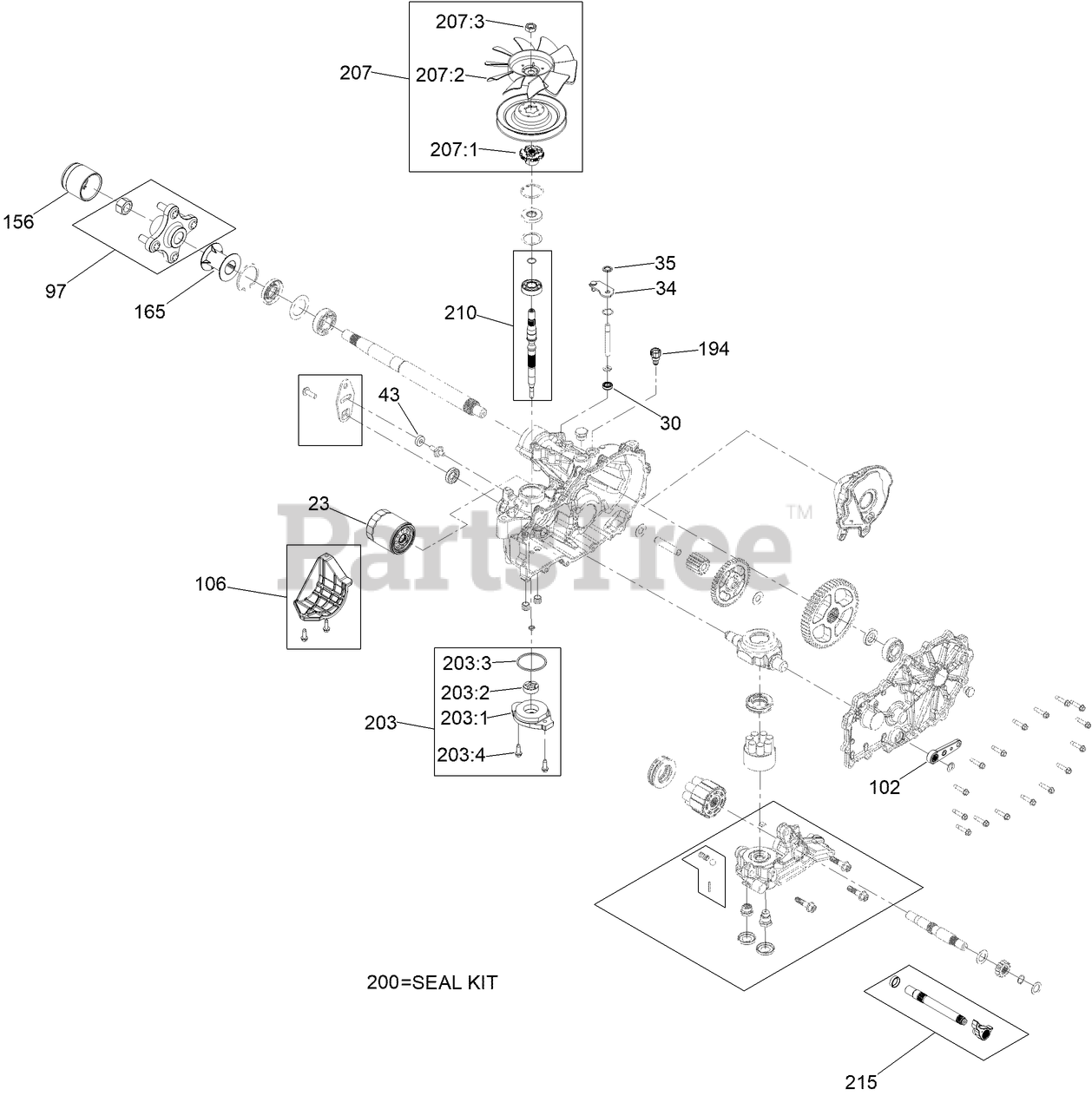

RH Transaxle Assembly No. 145-8425 Parts Diagram

  • Title

23

Toro 109-3321

ELEMENT-OIL FILTER, HYD

$29.99

$

In Stock, Qty 20+

0

30

Toro 139-7497

SEAL-LIP

$7.49

$

In Stock, only 2 left!

0

34

Toro 107-2490

ARM-BYPASS

$61.99

$

Usually ships in 3-6 days

0

35

Toro 106-8681

RING-RETAINING, EXTERNAL

$9.49

$

Usually ships in 3-6 days

0

43

Toro 112-9853

PUCK-FRICTION

$8.49

$

In Stock, only 2 left!

0

97

Toro 116-3872

HUB-OFFSET

$74.99

$

In Stock, Qty 5

0

102

Toro 125-0021

HANDLE-BRAKE

$16.99

$

Usually ships in 3-6 days

0

106

Toro 120-7981

GUARD-FILTER, RH

$40.99

$

Usually ships in 3-6 days

0

156

Toro 116-6214

CAP-AXLE, LONG

$18.99

$

Usually ships in 3-6 days

0

165

Toro 116-6213

TUBE-AXLE

$13.99

$

In Stock, only 1 left!

0

194

Toro 147-7366

ASSEMBLY-FITTING, BREATHER

$

$

Not available

200

Toro 121-3243

SEAL KIT

$208.99

$

In Stock, only 1 left!

0

203

Toro 114-8465

CHARGE KIT

$129.99

$

In Stock, only 1 left!

0

203:1

Toro 114-8457

COVER-CHARGE PUMP

$95.99

$

In Stock, Qty 7

0

203:2

Toro 104-2122

GEROTOR ASM

$130.99

$

Usually ships in 3-6 days

0

203:3

Toro 109-3540

O RING-SEAL

$6.99

$

In Stock, Qty 20+

0

203:4

Toro 104-2120

SCREW

$8.49

$

In Stock, only 1 left!

0

207

Toro 126-8904

FAN AND PULLEY KIT

$119.99

$

Usually ships in 3-6 days

0

207:1

Toro 126-8905

HUB-FAN

$18.99

$

Usually ships in 3-6 days

0

207:2

Toro 126-0226

FAN

$54.99

$

In Stock, only 4 left!

0

207:3

Toro 116-9714

NUT-HJ

$5.49

$

In Stock, only 4 left!

0

210

Toro 121-3248

INPUT SHAFT KIT

$299.99

$

Usually ships in 3-6 days

0

215

Toro 140-8353

INBOARD KIT

$100.99

$

Usually ships in 3-6 days

0
