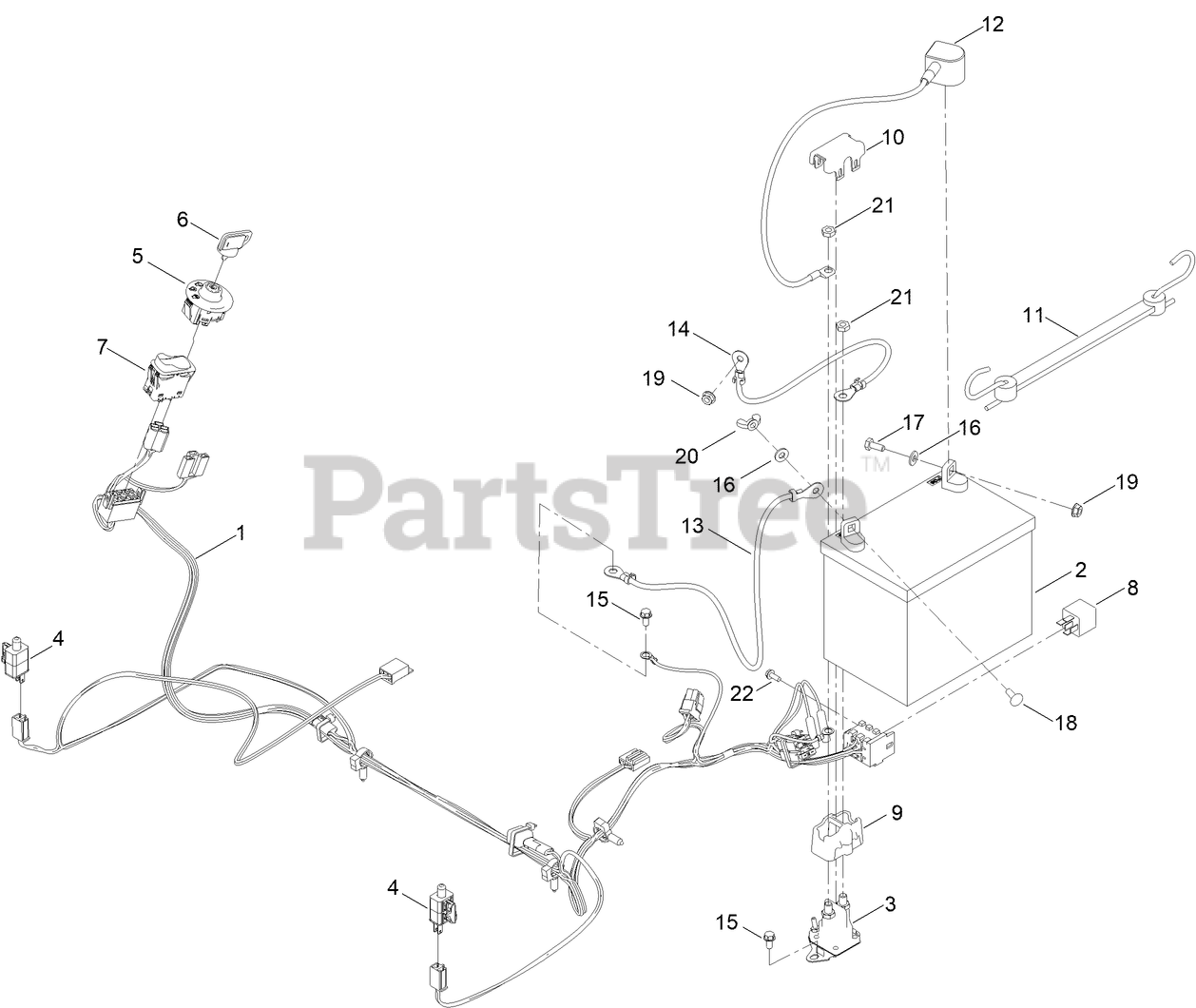

77501 - Toro 50" TimeCutter MAX Zero-Turn Mower (SN: 415400000 - 416912966) Electrical Assembly Parts Diagram

50" TimeCutter MAX Zero-Turn Mower

Electrical Assembly Parts Diagram

  • Title

1

Toro 145-6382

HARNESS-WIRE, MAIN

$188.99

$

Usually ships in 3-6 days

0

2

Toro 140-2076

USE 105-1692
(Superseded to 105-1692)

$

$

Not available

3

Toro 117-1197

SOLENOID

$49.99

$

In Stock, Qty 20+

0

4

Toro 110-6765

SWITCH

$14.99

$

In Stock, Qty 20+

0

5

Toro 137-4100

SWITCH-IGNITION

$29.99

$

In Stock, Qty 20+

0

6

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

7

Toro 139-6368

SWITCH-ROCKER, ON-NONE-ON

$36.99

$

In Stock, Qty 12

0

8

Toro 1-643275

RELAY

$25.99

$

In Stock, Qty 9

0

9

Toro 140-2080

COVER-SOLENOID

$2.99

$

In Stock, only 2 left!

0

10

Toro 140-2081

CAP-SOLENOID

$2.99

$

In Stock, only 4 left!

0

11

Toro 104-2466

HOLDDOWN-BATTERY

$25.99

$

In Stock, only 2 left!

0

12

Toro 147-2941

CABLE-BATTERY,RED

$17.99

$

Usually ships in 3-6 days

0

13

Toro 119-8899

CABLE-BATTERY, BLACK

$18.99

$

In Stock, only 3 left!

0

14

Toro 121-0711

CABLE-BATTERY, POSITIVE

$15.99

$

Usually ships in 3-6 days

0

15

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

16

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 17

0

17

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 11

0

19

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 11

0

20

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 10

0

21

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

22

Toro 139-1713

SCREW-TAPTITE

$1.49

$

Usually ships in 3-6 days

0
