77520 TA (MX 5400 T) - Toro 54" TimeCutter MAX Zero-Turn Mower (SN: 415300000 - 999999999) Motion Control Assembly Parts Diagram

54" TimeCutter MAX Zero-Turn Mower

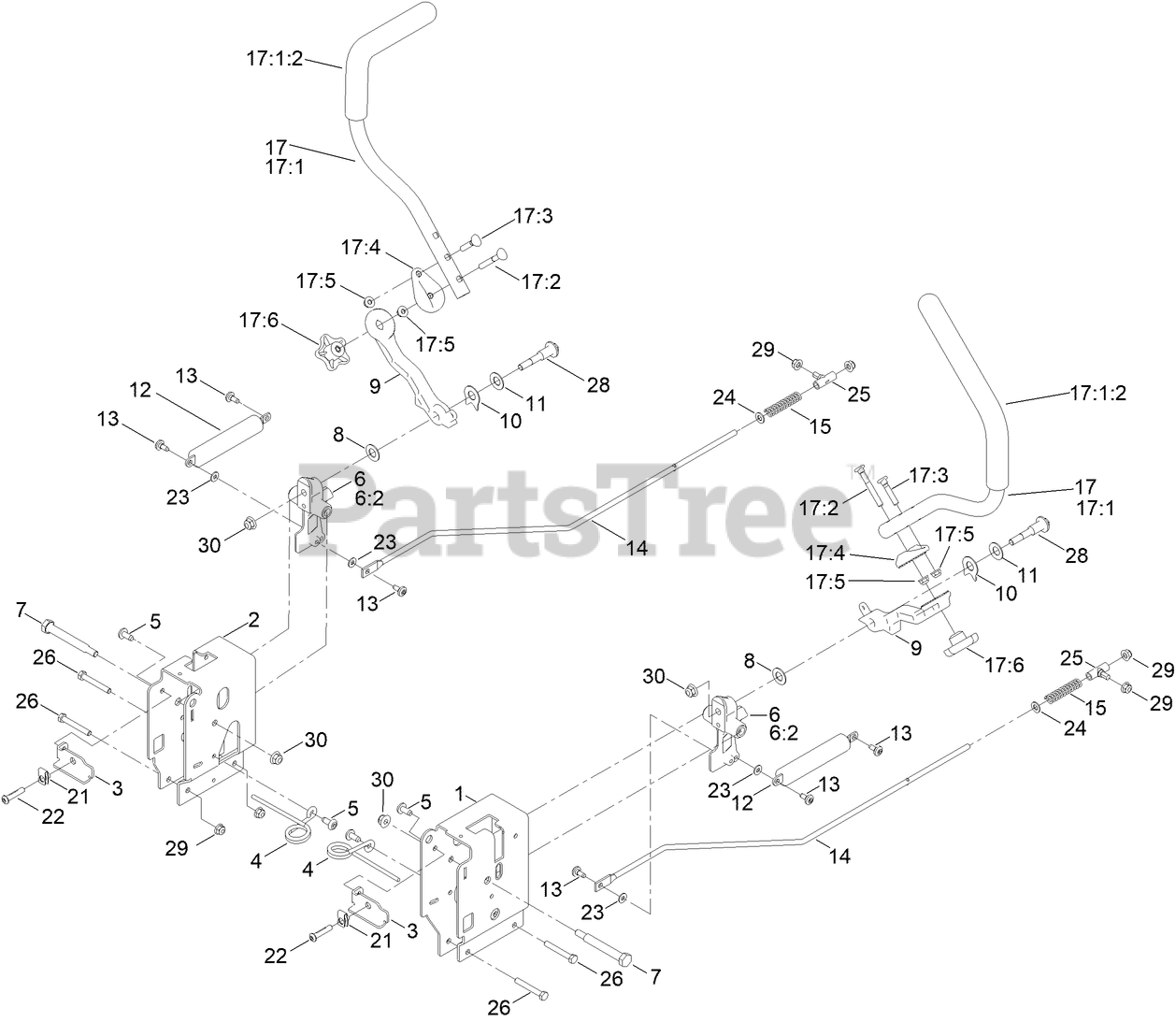

Motion Control Assembly Parts Diagram

  • Title

1

Toro 145-4615-03

CONTROL BOX - LH G7

$39.99

$

Usually ships in 0 days

0

2

Toro 145-4647-03

CONTROL BOX - RH G7

$39.99

$

Usually ships in 0 days

0

3

Toro 147-7580-03

ADJUSTMENT PLATE-CONTROL BOX

$9.49

$

Usually ships in 0 days

0

4

Toro 145-6253

SPRING-TORSION

$2.49

$

Usually ships in 0 days

0

5

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 13

0

6

Toro 145-4648

PIVOT ARM ASM

$25.99

$

Usually ships in 3-6 days

0

6:2

Toro 256-156

BUSHING-FLANGE

$14.99

$

Usually ships in 3-6 days

0

7

Toro 115-5099

BOLT-PIVOT

$5.49

$

In Stock, only 2 left!

0

8

Toro 120-2273

WASHER-NYLON

$2.99

$

In Stock, only 4 left!

0

9

Toro 147-5191-05

ARM-CONTROL, 32 TEETH

$27.99

$

Usually ships in 0 days

0

10

Toro 142-8478

SPACER, ANTI-ROTATION

$1.99

$

Usually ships in 0 days

0

11

Toro 119-8925

WASHER-BELLEVILLE

$1.49

$

In Stock, Qty 14

0

12

Toro 132-6853

DAMPER-NON CAVITATING

$37.99

$

In Stock, only 4 left!

0

13

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

14

Toro 145-4699

ROD - HYDRO, LH

$17.99

$

Usually ships in 0 days

0

15

Toro 138-7252

SPRING-COMPRESSION

$2.99

$

Usually ships in 3-6 days

0

17

Toro 161-6523

HANDLE-CONTROL, ASM

$86.99

$

Usually ships in 0 days

0

17:1

HANDLE-CONTROL,

Note: Not serviced separately

$

$

Not available

17:1:2

Toro 147-3029

GRIP

$15.99

$

Usually ships in 3-6 days

0

17:2

Toro 145-6366

SCREW-HANDLE

$1.49

$

Usually ships in 3-6 days

0

17:3

Toro 137-3008

SCREW-HANDLE

$1.49

$

Usually ships in 3-6 days

0

17:4

Toro 147-5192-05

DISC-ADJUSTMENT HANDLE, 32 TEETH

$14.99

$

In Stock, only 2 left!

0

17:5

Toro 138-8401

NUT-HF

$1.49

$

In Stock, Qty 8

0

17:6

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 20+

0

21

Toro 112-3306

NUT

$3.99

$

Usually ships in 3-6 days

0

22

Toro 126-4299

SCREW-HSBH

$2.99

$

Usually ships in 3-6 days

0

23

Toro 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

24

Toro 120-9683

WASHER-PLAIN

$3.49

$

Usually ships in 3-6 days

0

25

Toro 138-7218

MOUNT-ROD, HYDRO

$13.99

$

In Stock, Qty 5

0

26

Toro 120-9738

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

28

Toro 117-1198

BOLT-PIVOT

$3.49

$

In Stock, Qty 17

0

29

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

30

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
