77603 - Toro 60" TimeCutter MyRide Zero-Turn Mower (SN: 417600000 - 999999999) Frame Assembly Parts Diagram

60" TimeCutter MyRide Zero-Turn Mower

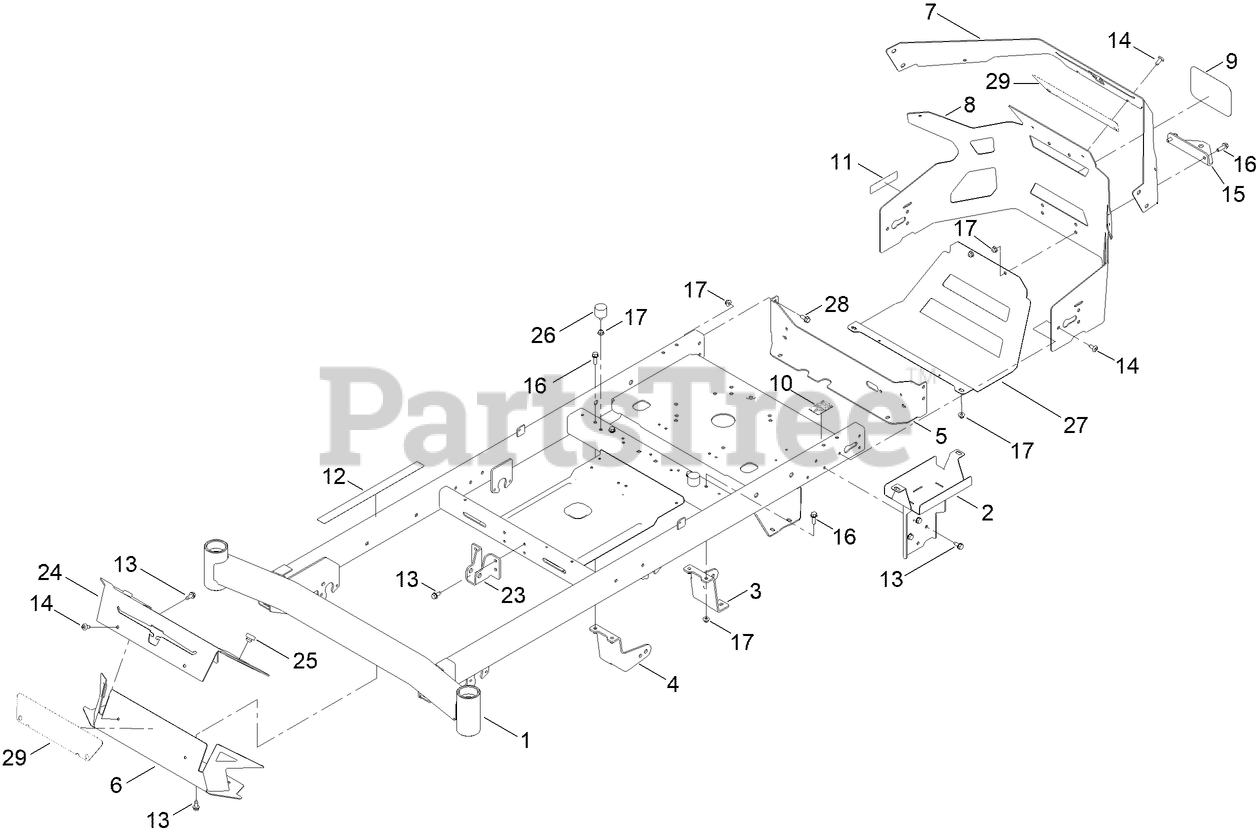

Frame Assembly Parts Diagram

  • Title

1

Toro 161-6614

SERVICE ASM-FRAME, TC

$1370.99

$

Usually ships in 3-6 days

0

2

Toro 145-6283-05

WA-BATTERY MOUNT

$42.99

$

Usually ships in 3-6 days

0

3

Toro 161-6506-01

MOUNT-DRIVE, LH

$20.99

$

Usually ships in 3-6 days

0

4

Toro 161-6507-01

MOUNT-DRIVE, RH

$20.99

$

Usually ships in 3-6 days

0

5

Toro 147-8709-03

PLATE-MOUNT

$70.99

$

Usually ships in 3-6 days

0

6

Toro 147-2966-05

FOOTREST-TOP

$70.99

$

Usually ships in 3-6 days

0

7

Toro 147-2995-05

PLATE-REAR CLADDING TC

$76.99

$

Usually ships in 3-6 days

0

8

Toro 147-2994-05

GUARD-ENGINE TC

$131.99

$

Usually ships in 3-6 days

0

9

Toro 127-7590

DECAL

$6.99

$

Usually ships in 3-6 days

0

10

Toro 161-6207

DECAL-BYPASS

$3.99

$

Usually ships in 3-6 days

0

11

Toro 142-5864

DECAL-SPARK ARRESTER

$1.99

$

Usually ships in 3-6 days

0

12

Toro 144-5288

DECAL-WARNING

$5.49

$

Usually ships in 3-6 days

0

13

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

14

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 20+

0

15

Toro 117-1232-03

BRACKET-HITCH

$31.99

$

In Stock, only 2 left!

0

16

Toro 139-2596

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

17

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

23

Toro 145-6323-01

BRACKET-MOUNT DAMPER, LOWER

$19.99

$

Usually ships in 3-6 days

0

24

Toro 147-2850-05

PLATE-KICK, MR

$69.99

$

Usually ships in 3-6 days

0

25

Toro 140-3460

BUMPER-RUBBER

$1.49

$

Usually ships in 3-6 days

0

26

Toro 137-4803

BUMPER-RUBBER

$4.99

$

In Stock, only 2 left!

0

27

Toro 163-6002-03

GUARD-MUFFLER [BLACK]

$60.99

$

Usually ships in 3-6 days

0

28

Toro 139-2598

SCREW-HHF

$1.49

$

In Stock, only 2 left!

0

29

Toro 147-7699

DECAL-BACKER, RED

$6.99

$

Usually ships in 3-6 days

0
