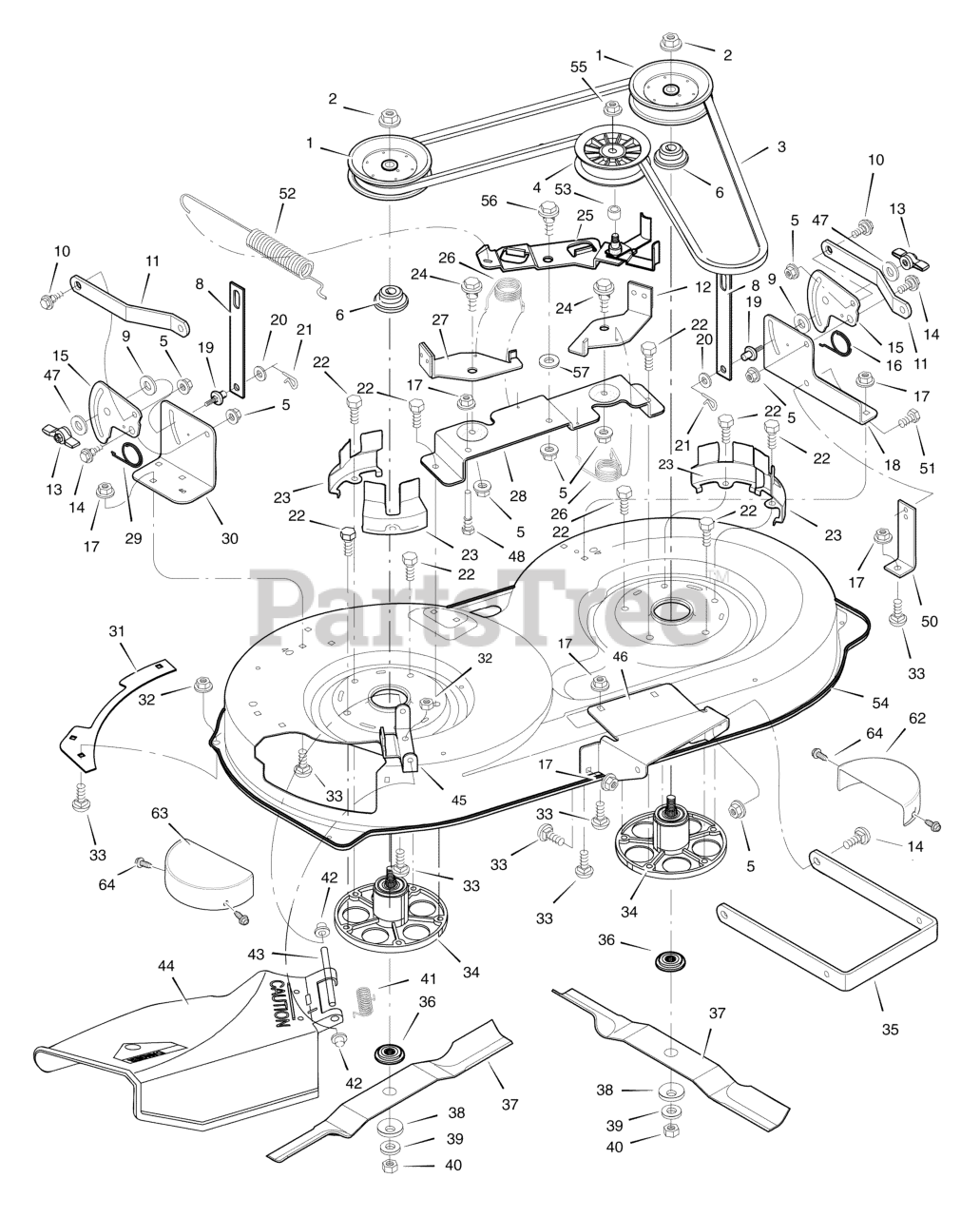

7800294 (385002x78D) - Murray 38" Lawn Tractor (2008) Mower Housing Parts Diagram

38" Lawn Tractor

Mower Housing Parts Diagram

  • Title

1

Murray 092852MA

PULLEY, Jackshaft

$31.99

$

In Stock, only 1 left!

0

2

Murray 15X140MA

NUT, Hex

$10.99

$

In Stock, only 1 left!

0

3

Murray 037X86MA

BELT, Mower Drive

$42.99

$

Usually ships in 2-12 days

0

4

Murray 091801MA

PULLEY, Idler

$24.99

$

In Stock, Qty 5

0

5

Murray 7091619SM

NUT, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 11

0

6

Murray 1001197MA

SPACER, Pulley

Note: (Included with Ref. No. 34)

$13.99

$

In Stock, only 2 left!

0

8

Murray 7300749TYP

LINK, Lift

$19.99

$

Usually ships in 2-12 days

0

9

Murray 094137MA

PAD, Friction

$23.99

$

In Stock, only 2 left!

0

10

Murray 009X52MA

BOLT, Shoulder

$6.99

$

In Stock, only 2 left!

0

11

Murray 7300826TYP

BRACKET, Suspension

$13.99

$

Usually ships in 2-12 days

0

12

Murray 7400244ZMA

PAD ASSEMBLY, Left Brake
(Superseded to 7400244BMYP)

$107.99

$

Usually ships in 2-12 days

0

13

Murray 094068MA

KNOB
(Superseded to 703065)

$7.49

$

In Stock, Qty 20+

0

14

Murray 009X51MA

BOLT, Shoulder

$4.99

$

In Stock, Qty 14

0

15

Murray 7300878TYP

PLATE, Suspension

$

$

Not available

16

Murray 166X43MA

SPRING

$5.49

$

In Stock, only 2 left!

0

17

Murray 7090585MA

NUT, Flange
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

18

Murray 7300735TYP

BRACKET, Left Suspension

$23.99

$

Usually ships in 2-12 days

0

19

Murray 095194MA

PIN, Hanger

$

$

Not available

20

Murray 017X91MA

WASHER

$5.99

$

In Stock, only 2 left!

0

21

Murray 0031X4MA

PIN, Cotter
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

22

Murray 0025X6MA

BOLT

$5.99

$

Usually ships in 2-12 days

0

23

Murray 7300859TYP

GUIDE, Belt
(Superseded to 7300859BMYP)

$33.99

$

In Stock, Qty 7

0

24

Murray 009X39MA

BOLT, Shoulder

$6.49

$

In Stock, only 1 left!

0

25

Murray 1001499MA

ARM, Idler

$157.99

$

Usually ships in 2-12 days

0

26

Murray 166X41MA

SPRING

$5.49

$

In Stock, Qty 7

0

27

Murray 7400243TYP

PAD ASSEMBLY, Right Brake
(Superseded to 7400243BMYP)

$100.99

$

Usually ships in 2-12 days

0

28

Murray 7300732TYP

BRACKET ASSEMBLY, Brake

$47.99

$

Usually ships in 2-12 days

0

29

Murray 166X42MA

SPRING

$5.49

$

In Stock, Qty 6

0

30

Murray 7300738TYP

BRACKET, Right Suspension
(Superseded to 7300738BMYP)

$27.99

$

Usually ships in 2-12 days

0

31

Murray 7300834TYP

PLATE

$15.99

$

Usually ships in 2-12 days

0

32

Murray 015X88MA

NUT, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

33

Murray 002X53MA

BOLT, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

34

Murray 1001200MA

MANDRELL

Note: (Includes Ref. No. 6)

$74.99

$

In Stock, Qty 17

0

35

Murray 7300767TYP

BRACKET, Suspension

$38.99

$

Usually ships in 2-12 days

0

36

Murray 690411MA

ADAPTER, Blade

$

$

Not available

37

Murray 095104E701MA

BLADE

$27.99

$

Usually ships in 2-12 days

0

38

Murray 17X166MA

WASHER

$13.99

$

In Stock, Qty 12

0

39

Murray 17X165MA

WASHER

$16.99

$

In Stock, Qty 9

0

40

Murray 15X100MA

NUT

$3.99

$

In Stock, Qty 20+

0

41

Murray 0166X4MA

SPRING

$6.99

$

In Stock, Qty 12

0

42

Murray 028X23MA

CAP, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

43

Murray 094957ZMA

ROD, Deflector

$11.99

$

In Stock, Qty 5

0

44

Murray 094707MA

DEFLECTOR ASSEMBLY

$115.99

$

In Stock, only 1 left!

0

45

Murray 7300812TYP

BRACKET, Deflector

$25.99

$

Usually ships in 2-12 days

0

46

Murray 7300734TYP

BRACKET, Front Hanger

$38.99

$

Usually ships in 2-12 days

0

47

Murray 017X45MA

WASHER

$

$

Not available

48

Murray 094781MA

GUIDE, Belt

$61.99

$

Usually ships in 2-12 days

0

50

Murray 7300766TYP

BRACKET, Support
(Superseded to 7300766BMYP)

$23.99

$

Usually ships in 2-12 days

0

51

Murray 26X249MA

SCREW

$

$

Not available

52

Murray 165X118MA

SPRING, Extension

$11.99

$

Usually ships in 2-12 days

0

53

Murray 690369MA

SPACER

$

$

Not available

54

Murray 7300788TYP

HOUSING, Export Blade

$433.99

$

Usually ships in 2-12 days

0

55

Murray 015X98MA

NUT, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

56

Murray 009X72MA

BOLT, Shoulder

$

$

Not available

57

Murray 17X174ZMA

WASHER

$6.49

$

Usually ships in 2-12 days

0

62

Murray 7300781TYP

GUARD, Belt L.H.

$

$

Not available

63

Murray 7300782TYP

GUARD, Belt R.H.

$

$

Not available

64

Murray 26X263MA

SCREW

$4.99

$

In Stock, only 1 left!

0
