7800560C-A - Murray 38" Rear-Engine Riding Mower, Gear Drive, 13.5hp (2012) Frame Group - Welded Axle (7501046) Parts Diagram

38" Rear-Engine Riding Mower, Gear Drive, 13.5hp

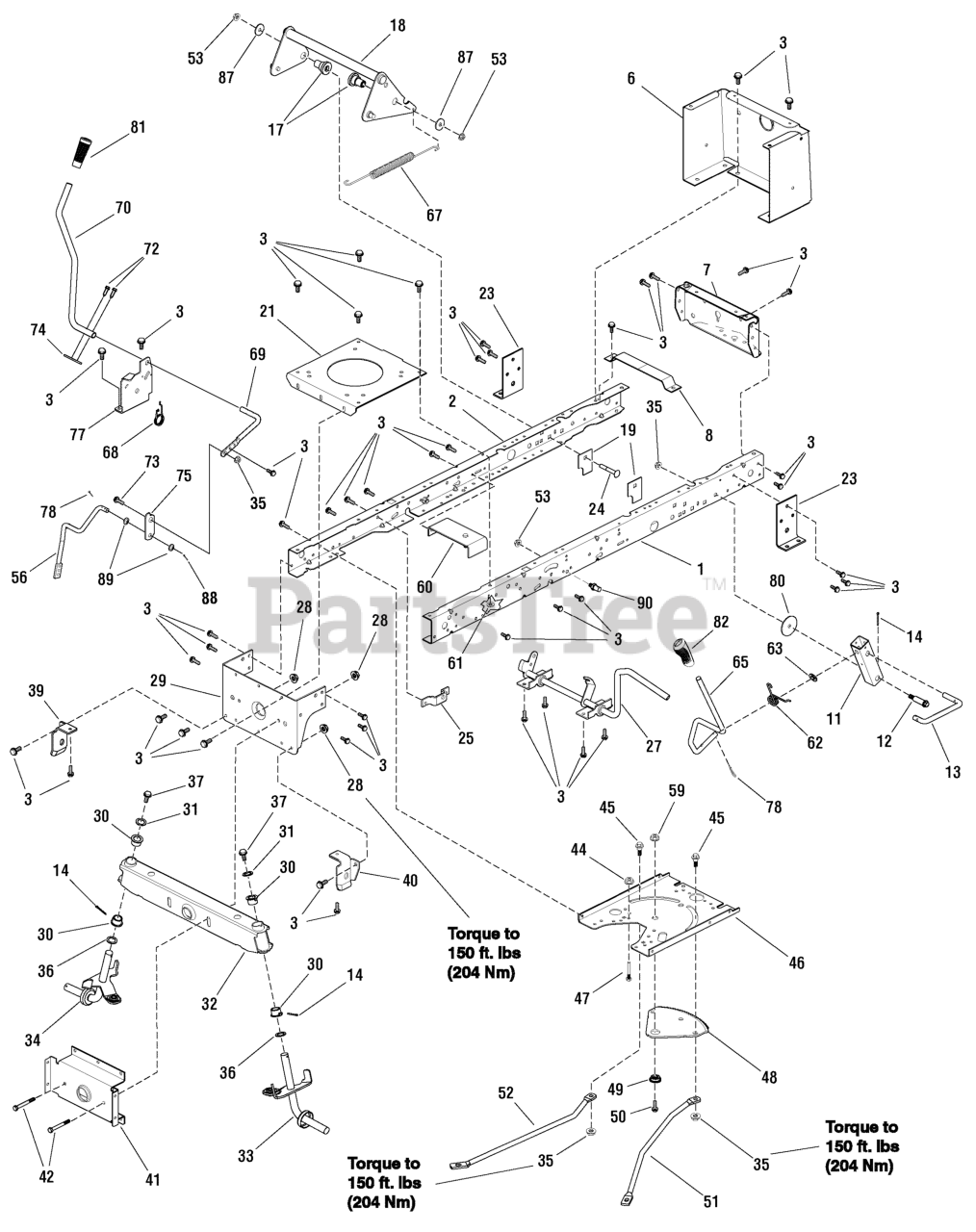

Frame Group - Welded Axle (7501046) Parts Diagram

  • Title

1

Murray 7300869ZMA

FRAME, Left

$46.99

$

In Stock, only 2 left!

0

2

Murray 7300870ZMA

FRAME, Right

$43.99

$

In Stock, only 2 left!

0

3

Murray 26X249MA

CAPSCREW, 5/16-18 x 3/4

$

$

Not available

6

Murray 7300832ZMA

PANEL, Rear

$69.99

$

Usually ships in 2-12 days

0

7

Murray 7300864ZMA

PLATE, Hitch

$41.99

$

Usually ships in 2-12 days

0

8

Murray 7300741ZMA

BRACKET, Battery Support

$10.99

$

Usually ships in 2-12 days

0

11

Murray 7300819ZMA

BRACKET, Pivot

$12.99

$

Usually ships in 2-12 days

0

12

Murray 009X53MA

BOLT, Shoulder, 3/8-16 x 1/2

$6.99

$

Usually ships in 2-12 days

0

13

Murray 7300877ZMA

LINK, Lift Handle

$19.99

$

Usually ships in 2-12 days

0

14

Murray 7091809YP

COTTER PIN, 1/8 x 1-1/4

$4.49

$

In Stock, only 2 left!

0

17

Murray 690151MA

SPACER, Lifter

$6.99

$

Usually ships in 2-12 days

0

18

Murray 7500525ZMA

LIFTER ASSEMBLY

$102.99

$

Usually ships in 2-12 days

0

19

Murray 7300868ZMA

PLATE, Stiffening

$12.99

$

Usually ships in 2-12 days

0

21

Murray 7300863ZMA

PLATE, Engine

$34.99

$

Usually ships in 2-12 days

0

23

Murray 7300769ZMA

BRACKET, Transaxle

$17.99

$

Usually ships in 2-12 days

0

24

Murray 7091008YP

BOLT, Carriage, 3/8-16 x 2-1/2

$4.99

$

In Stock, only 1 left!

0

25

Murray 7300796ZMA

BRACKET, Bellcrank

$8.99

$

Usually ships in 2-12 days

0

27

Murray 7400256ZMA

BRAKE PEDAL

$72.99

$

Usually ships in 2-12 days

0

28

Murray 015X42MA

NUT, Hex Flange, 5/16-24

$3.99

$

Usually ships in 2-12 days

0

29

Murray 7300751ZMA

BRACKET, Rear Hanger

$54.99

$

Usually ships in 2-12 days

0

30

Murray 690150MA

BEARING, Spindle, LT

$8.99

$

In Stock, only 4 left!

0

31

Murray 710083MA

WASHER, FLAT, 25/64" ID X 1" OD X 14 GA.

$7.49

$

In Stock, only 2 left!

0

32

Murray 7400246ZYP

AXLE

$136.99

$

Usually ships in 2-12 days

0

33

Murray 7400232ZMA

SPINDLE, Left

$204.99

$

In Stock, only 1 left!

0

34

Murray 7400231ZMA

SPINDLE, Right

$165.99

$

Usually ships in 2-12 days

0

35

Murray 015X84MA

NUT, Hex Flange 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

36

Murray 017X53MA

WASHER, Flat 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

37

Murray 01X111MA

BOLT, Hex 3/8-16 x 1-1/2

$4.49

$

In Stock, only 1 left!

0

39

Murray 7300861ZMA

HANGER, Right Deck

$10.99

$

Usually ships in 2-12 days

0

40

Murray 7300860ZMA

HANGER, Left Deck

$

$

Not available

41

Murray 7300742ZMA

AXLE, Hanger

$37.99

$

Usually ships in 2-12 days

0

42

Murray 01X146MA

BOLT, Hex Head, 5/16-24 x 2-3/4

$3.99

$

Usually ships in 2-12 days

0

43

Murray 7500524AYP

SECTOR GEAR ASSEMBLY

Note: (Includes Ref. No 46, 47, 48, 49, 50, 51, 52 & 53)

$153.99

$

Usually ships in 2-12 days

0

44

Murray 7090585MA

NUT, Hex Flange, 5/16-18

$3.99

$

In Stock, Qty 7

0

45

Murray 009X57MA

BOLT, Shoulder, 3/8-16 x 1

$9.99

$

In Stock, Qty 12

0

46

Murray 7300867ZMA

PLATE, Steering Mount

$

$

Not available

47

Murray 094384MA

SCREW, Guide

$4.49

$

Usually ships in 2-12 days

0

48

Murray 094121MA

GEAR, Sector

$

$

Not available

49

Murray 094123MA

BEARING, Sector Gear

$12.99

$

In Stock, only 2 left!

0

50

Murray 7027168SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 3 left!

0

51

Murray 7101805ZMA

DRAG LINK, Left

$26.99

$

Usually ships in 2-12 days

0

52

Murray 7101806ZMA

DRAG LINK, Right

$26.99

$

Usually ships in 2-12 days

0

53

Murray 7091619SM

NUT, Hex Flange, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

56

Murray 690394E701MA

CRANK, PTO

$38.99

$

Usually ships in 2-12 days

0

59

Murray 7090951SM

NUT, Flange, 5/16-18
(Superseded to 704001)

$4.49

$

In Stock, Qty 19

0

61

Murray 7091601SM

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

62

Murray 166X40MA

SPRING, Torsion

$6.49

$

Usually ships in 2-12 days

0

63

Murray 17X103MA

WASHER, Flat, 1

$4.99

$

In Stock, Qty 7

0

65

Murray 690533MA

HANDLE, Lift

$40.99

$

In Stock, only 1 left!

0

67

Murray 165X131MA

SPRING, Extension

$15.99

$

Usually ships in 2-12 days

0

68

Murray 166X39MA

SPRING, Torsion, PTO

$5.49

$

Usually ships in 2-12 days

0

69

Murray 094017ZMA

LEVER, PTO

$64.99

$

Usually ships in 2-12 days

0

70

Murray 094157ZMA

HANDLE, PTO

$40.99

$

Usually ships in 2-12 days

0

72

Murray 0025X3MA

SCREW, Thread Forming, 1/4-20 x 1

$4.99

$

Usually ships in 2-12 days

0

73

Murray 009X39MA

BOLT, Shoulder, 3/8-16 x 1/2

$6.49

$

In Stock, Qty 10

0

74

Murray 7300928YP

PADDLE, Switch, Yellow

$5.49

$

Usually ships in 2-12 days

0

75

Murray 7300929YP

LINK, PTO, Yellow

$5.99

$

Usually ships in 2-12 days

0

77

Murray 7300821BMYP

BRACKET, PTO

$15.99

$

Usually ships in 2-12 days

0

78

Murray 0031X4MA

HAIRPIN
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

80

Murray 17X191MA

WASHER, Plain, 2-1/4

$3.99

$

Usually ships in 2-12 days

0

81

Murray 1741757MA

GRIP, PTO

$5.99

$

Usually ships in 2-12 days

0

82

Murray 1741756MA

GRIP, 1/2" Shaft, Tapered

$5.99

$

Usually ships in 2-12 days

0

87

Murray 17X168ZMA

WASHER, Flat, 1.25 x .39

$6.49

$

Usually ships in 2-12 days

0

88

Murray 030X20MA

COTTERPIN, 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

89

Murray 017X57MA

WASHER, Flat 3/4

$4.49

$

Usually ships in 2-12 days

0

90

Murray 094067MA

PIN, Threaded Shoulder, 3/8-16 x 1-1/2
(Superseded to 704054)

$7.49

$

In Stock, Qty 11

0
