7800629 (E 20 M 42) - Murray 42" Zero-Turn Mower, 20hp Briggs & Stratton (2010) Wheel & Tire Group (W7501728) Parts Diagram

42" Zero-Turn Mower, 20hp Briggs & Stratton

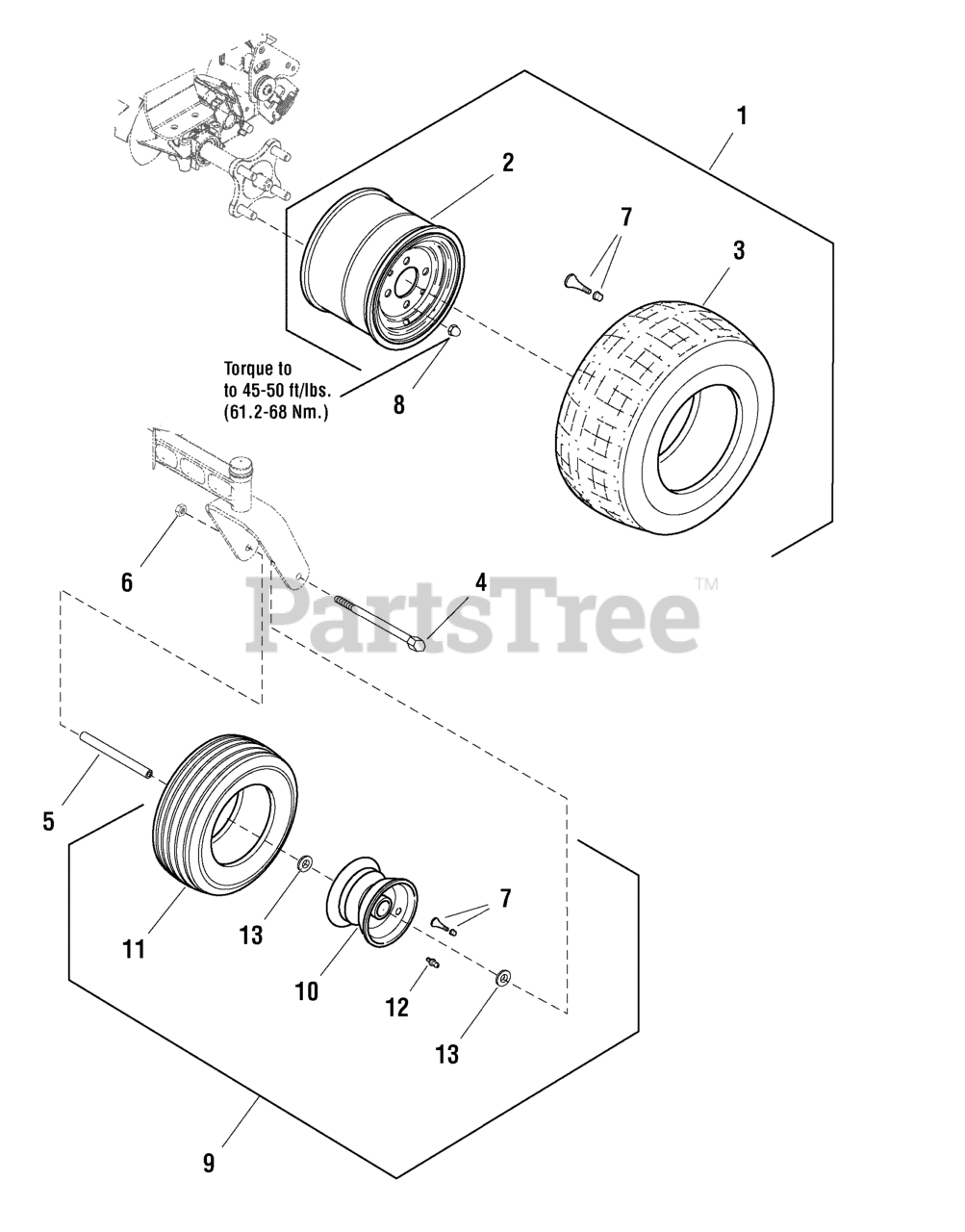

Wheel & Tire Group (W7501728) Parts Diagram

  • Title

1

Murray 1726383SM

WHEEL & TIRE ASSEMBLY, 18 x 8-1/2-8

$262.99

$

Usually ships in 2-12 days

0

2

Murray 1734878SM

WHEEL, 18 x 8-1/2 - 8
(Superseded to 1726383SM)

Note: (Included with Ref. 1)

$262.99

$

Usually ships in 2-12 days

0

3

Murray 1734877SM

TIRE, 18 x 8-1/2 - 8

Note: (Included with Ref. 1)

$107.99

$

Usually ships in 2-12 days

0

4

Murray 7091772SM

CAPSCREW, Hex Head

$8.49

$

In Stock, Qty 18

0

5

Murray 1734841SM

TUBE, Caster Wheel

$13.99

$

In Stock, Qty 19

0

6

Murray 7090839SM

NUT, Hex Center Lock

$5.49

$

In Stock, Qty 6

0

7

Murray 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

Note: (Included with Ref. 1 & 9)

$8.49

$

Usually ships in 2-12 days

0

8

Murray 2177725SM

NUT, Hex Lug, 7/16-20

$6.49

$

Usually ships in 2-12 days

0

9

Murray 1734013SM

WHEEL & TIRE ASSEMBLY, 11 x 4-5

$113.99

$

In Stock, Qty 16

0

10

Murray 1734876SM

WHEEL, 11 x 4 - 5

Note: (Included with Ref. 9)

$75.99

$

In Stock, only 1 left!

0

11

Murray 1734875SM

TIRE, 11 x 4 - 5
(Superseded to 5022433X1SM)

Note: (Included with Ref. 9)

$77.99

$

In Stock, Qty 8

0

12

Murray 7104428YP

FITTING, Lube

$5.99

$

In Stock, Qty 7

0

13

Murray 1739281YP

BUSHING, Wheel
(Superseded to 1759320YP)

Note: (Included with Ref. 9)

$13.99

$

In Stock, Qty 13

0
