7800733 (96012009500) - Yard King 38" Lawn Tractor, 12.5hp (2011) Engine Group (7800733engine) Parts Diagram

38" Lawn Tractor, 12.5hp

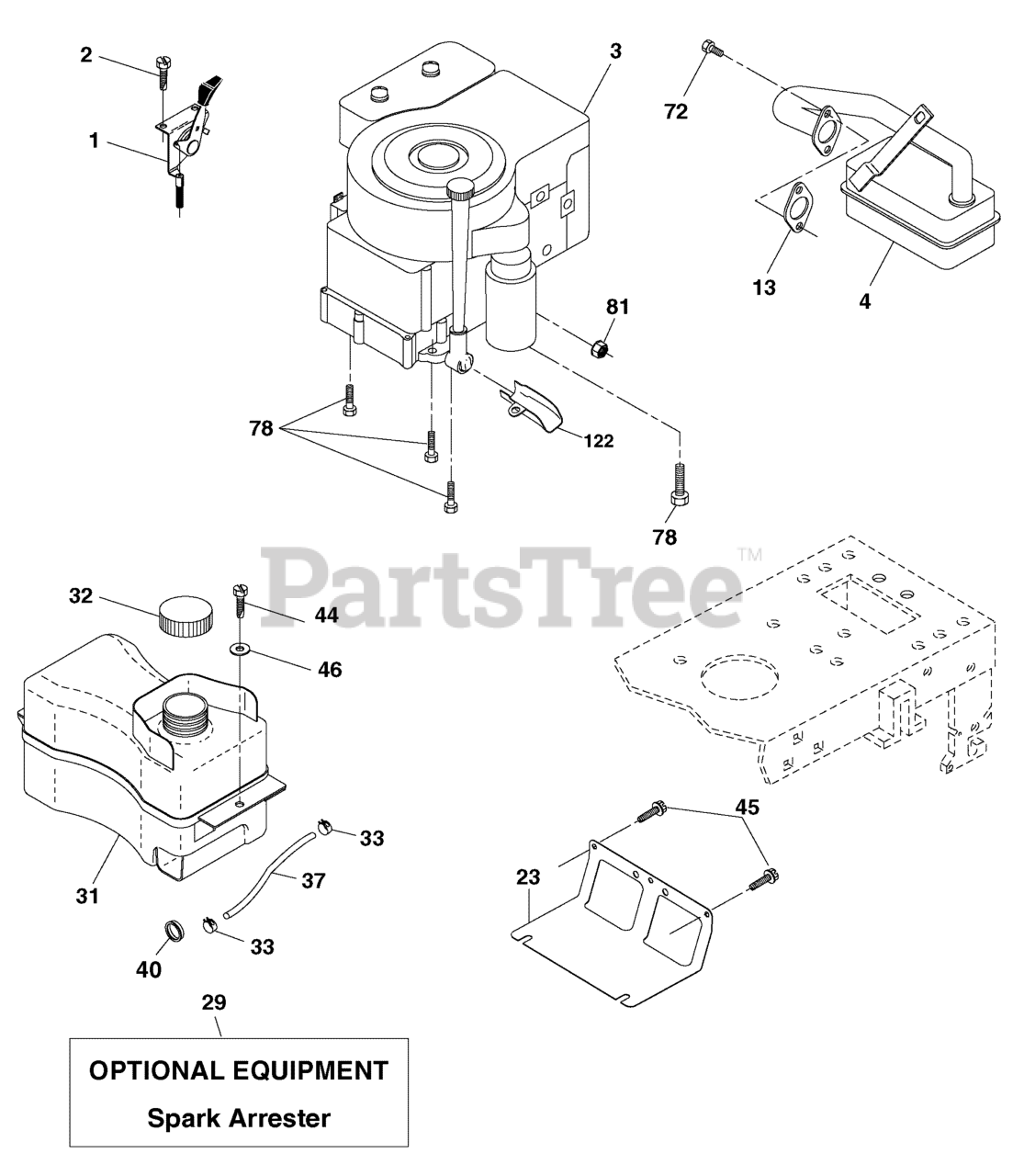

Engine Group (7800733engine) Parts Diagram

  • Title

1

Murray 170545

CONTROL Th/Ch

$

$

Not available

2

Murray 709192

SCREW, Hex Thd Cut 1/4-20 x 1/2

$5.49

$

Usually ships in 2-12 days

0

3

Murray 219807-0389-B1

* Engine, Briggs & Stratton

Note: ( Engine Model: 219807-0389-B1 )

$

$

Currently unavailable

4

Murray 709201

MUFFLER, Exhaust B&S
(Superseded to 709066)

$100.99

$

In Stock, only 1 left!

0

13

Murray 709117

GASKET. Eng 1 313 Id Tin Plated

$24.99

$

In Stock, only 1 left!

0

23

Murray 709143

SHIELD, BRN/DBR Guard

$

$

Not available

29

Murray 709065

KIT, Spark Arrestor (Flat Scrn)

$109.99

$

Usually ships in 2-12 days

0

31

Murray 709318

TANK, Fuel Front

$

$

Not available

32

Murray 709369

CAP, Fuel

$39.99

$

Usually ships in 2-12 days

0

33

Murray 709034

CLAMP, Hose

$4.99

$

Usually ships in 2-12 days

0

37

Murray 709299

FUEL LINE, 20"

$28.99

$

Usually ships in 2-12 days

0

40

Murray 708034

BUSHING, Snap Nyl Blk Fuel Line

$8.49

$

Usually ships in 2-12 days

0

44

Murray 709189

SCREW, Thdrol 1/4-20 x 3/4
(Superseded to 705329)

$4.49

$

Usually ships in 2-12 days

0

45

Murray 709148

SCREW, Hex Wsh Thdrol 3/8-16
(Superseded to 705322)

$6.49

$

In Stock, only 2 left!

0

46

Murray 709223

WASHER, 9/32 x 7/8 x 16 Ga.
(Superseded to 705332)

$7.49

$

Usually ships in 2-12 days

0

72

Murray 709243

SCREW, Socket Hd 5/16-18 x .75
(Superseded to 705054)

$4.49

$

In Stock, only 2 left!

0

78

Murray 709153

SCREW, 3/8-16 x 1-1/4

$5.49

$

Usually ships in 2-12 days

0

81

Murray 709428

NUT, Keps Hex 1/4-20 unc
(Superseded to 709054)

$4.99

$

Usually ships in 2-12 days

0

122

Murray 709348

EXTENSION, Drain Oil
(Superseded to 705238)

$6.99

$

Usually ships in 2-12 days

0
