7800735 (96042010000) - Yard King 42" Lawn Tractor, 17.5hp (2011) Chassis Group (7800735chassis) Parts Diagram

42" Lawn Tractor, 17.5hp

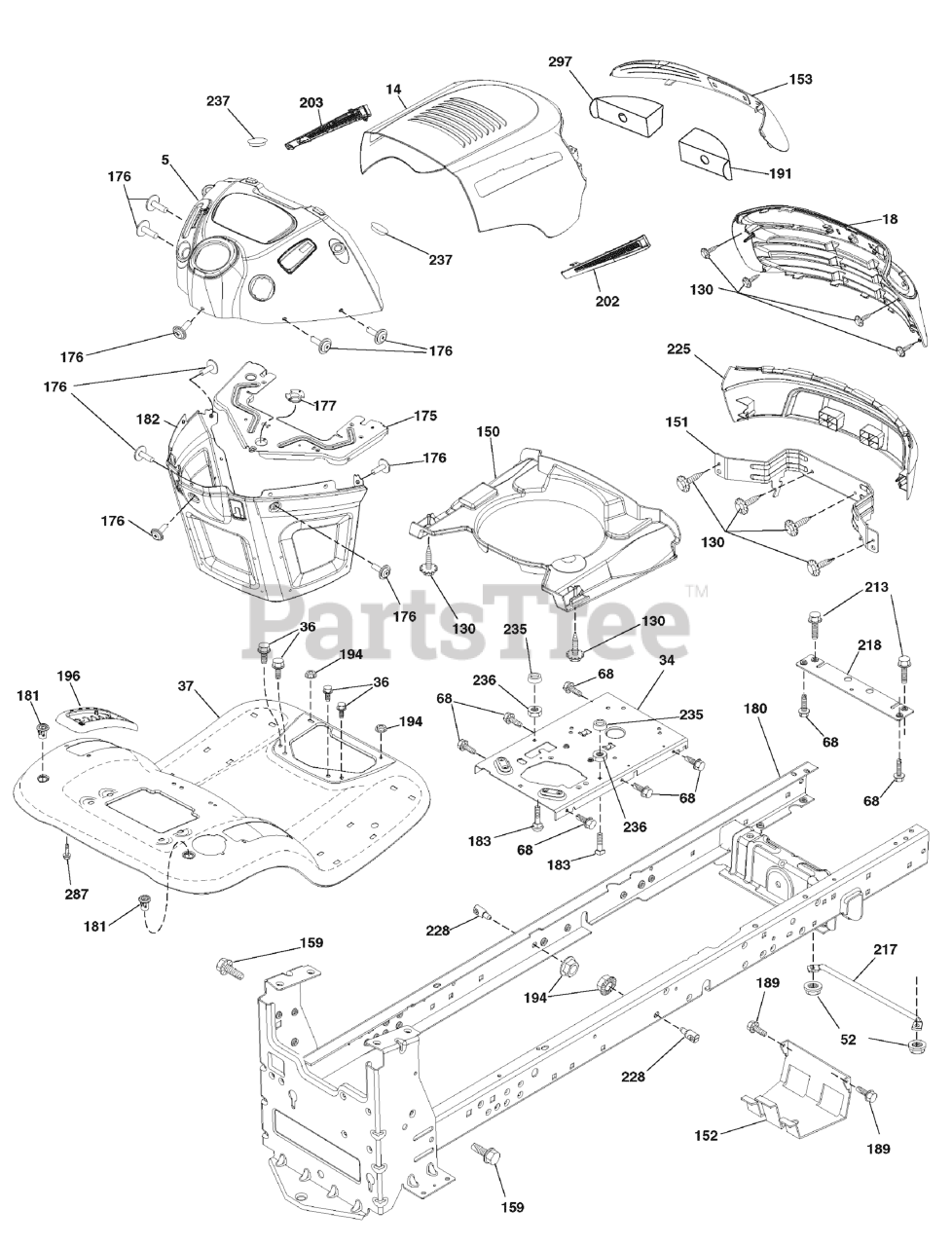

Chassis Group (7800735chassis) Parts Diagram

  • Title

5

Murray 770333

Dash

$102.99

$

Usually ships in 2-12 days

0

14

Murray 770321

Hood

$227.99

$

Usually ships in 2-12 days

0

18

Murray 400541X428

** Grille

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Currently unavailable

25

Murray 708589

Lens Grille RH

$7.99

$

Usually ships in 2-12 days

0

34

Murray 708274

Plate Engine

$108.99

$

Usually ships in 2-12 days

0

36

Murray 709152

Screw 5/16-18 x 3/4

$12.99

$

Usually ships in 2-12 days

0

37

Murray 414876X615

** Fender

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Currently unavailable

52

Murray 709430

Nut Crown Lock 5/16-18
(Superseded to 705350)

$5.99

$

Usually ships in 2-12 days

0

68

Murray 709162

Screw Thdrol 5/16-18 x 1/2

$5.49

$

Usually ships in 2-12 days

0

130

Murray 709330

Screw #10 x 0.750
(Superseded to 705233)

$4.99

$

Usually ships in 2-12 days

0

138

Murray 705428

Cupholder

$11.99

$

Usually ships in 2-12 days

0

150

Murray 770330

Duct Heat Hood

$75.99

$

Usually ships in 2-12 days

0

151

Murray 709213

Bracket Pivot

$26.99

$

Usually ships in 2-12 days

0

152

Murray 705129

Shield Browning

$38.99

$

Usually ships in 2-12 days

0

153

Murray 770332

Lens

$38.99

$

Usually ships in 2-12 days

0

159

Murray 709148

Screw Hexwsh Thdrol 3/8-16 x 3/4
(Superseded to 705322)

$6.49

$

In Stock, only 1 left!

0

175

Murray 770326

Crossmember

$32.99

$

Usually ships in 2-12 days

0

176

Murray 705137

Screw 10-24 x 5/8 Wshd Qdrx

$15.99

$

Usually ships in 2-12 days

0

177

Murray 708257

Bushing Steering

$9.49

$

Usually ships in 2-12 days

0

180

Murray 705094

Chassis

$310.99

$

Usually ships in 2-12 days

0

181

Murray 705433

Bushing Mtg. Fender Crgo.

$8.99

$

Usually ships in 2-12 days

0

182

Murray 770341

Dash Lower

$188.99

$

Usually ships in 2-12 days

0

183

Murray 705360

Bolt 5/16-18 x 1-1/4

$5.49

$

Usually ships in 2-12 days

0

189

Murray 705321

Screw 5/16-18 x 3/4
(Superseded to 709742)

$8.99

$

Usually ships in 2-12 days

0

191

Murray 770343

Insert Reflective RH

$22.99

$

Usually ships in 2-12 days

0

194

Murray 708491

Nut Lock Hex Flange 5/16-18

$7.99

$

Usually ships in 2-12 days

0

196

Murray 708407

Console Asm. Deck Lift

$70.99

$

Usually ships in 2-12 days

0

202

Murray 437912X428

** Side Vent RH

Note: (This part is not serviced by Briggs & Stratton.)

$8.99

$

Usually ships in 3-10 days

0

203

Murray 437911X428

** Side Vent LH

Note: (This part is not serviced by Briggs & Stratton.)

$8.99

$

Usually ships in 3-10 days

0

213

Murray 705365

Bolt Hex HD 5/16-18 unc x 3/4

$5.99

$

In Stock, only 1 left!

0

217

Murray 709322

Rod Pivot Chassis
(Superseded to 705180)

$6.49

$

Usually ships in 2-12 days

0

218

Murray 705099

X-Piece Hood Stop

$8.49

$

Usually ships in 2-12 days

0

225

Murray 770331

Bumper

$92.99

$

Usually ships in 2-12 days

0

228

Murray 705088

Stud Fastener

$13.99

$

Usually ships in 2-12 days

0

235

Murray 705173

Spacer Fender

$6.49

$

Usually ships in 2-12 days

0

236

Murray 705355

Nut Center Lock 5/16-18

$13.99

$

In Stock, only 1 left!

0

237

Murray 770340

Plug Mount Cargo

$6.49

$

Usually ships in 2-12 days

0

287

Murray 709185

Screw hex 1/4-20 x 3/8
(Superseded to 705328)

$4.99

$

Usually ships in 2-12 days

0

297

Murray 770338

Insert Reflective LH

$19.99

$

Usually ships in 2-12 days

0
