7800735 (96042010000) - Yard King 42" Lawn Tractor, 17.5hp (2011) Electrical Group (7800735elec) Parts Diagram

42" Lawn Tractor, 17.5hp

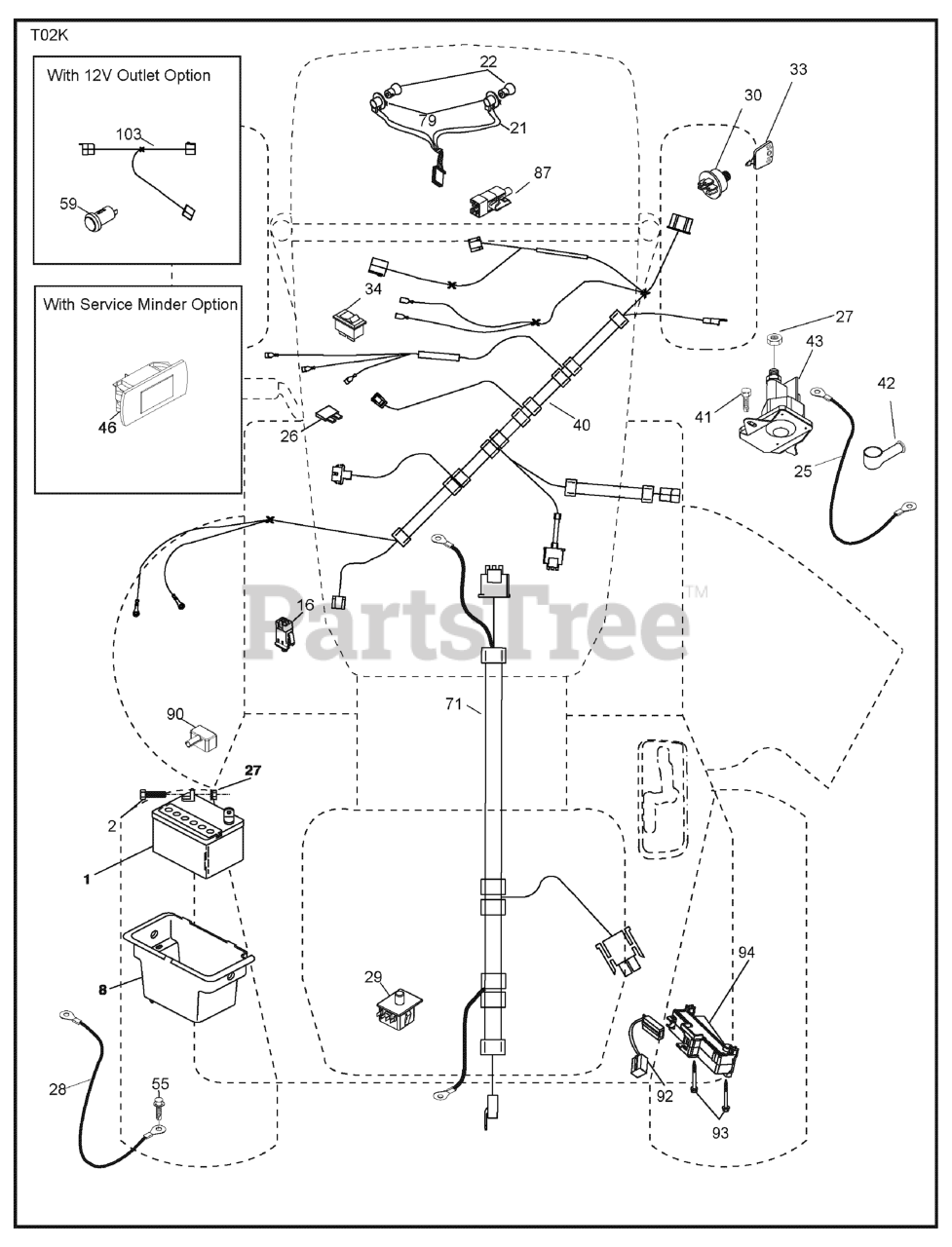

Electrical Group (7800735elec) Parts Diagram

  • Title

1

Murray 709116

Battery

$216.99

$

In Stock, only 2 left!

0

2

Murray 709438

Bolt Hex Hd 1/4-20 unc x 3/4
(Superseded to 705362)

$4.99

$

Usually ships in 2-12 days

0

8

Murray 705062

Box Battery

$43.99

$

Usually ships in 2-12 days

0

16

Murray 705042

Switch Interlock

$21.99

$

In Stock, only 2 left!

0

21

Murray 770329

Harness Socket Light

$38.99

$

Usually ships in 2-12 days

0

22

Murray 709329

Bulb, Light # 1156
(Superseded to 704984)

$7.49

$

Usually ships in 2-12 days

0

25

Murray 705225

Cable Battery 6 Ga. Red 14.5

$19.99

$

Usually ships in 2-12 days

0

26

Murray 705040

Fuse

$7.49

$

Usually ships in 2-12 days

0

27

Murray 709428

Nut Keps Hex 1/4-20 unc
(Superseded to 709054)

$4.99

$

Usually ships in 2-12 days

0

28

Murray 708330

Cable Ground 18" Rear Battery Blk 6 Ga.

$42.99

$

Usually ships in 2-12 days

0

29

Murray 709254

Switch Seat

$29.99

$

Usually ships in 2-12 days

0

30

Murray 705064

Switch Ign

$100.99

$

Usually ships in 2-12 days

0

33

Murray 704428

Key/Chain

$22.99

$

In Stock, only 1 left!

0

34

Murray 709017

Switch Light/Reset

$6.99

$

In Stock, only 1 left!

0

40

Murray 705140

Harness Ign

$193.99

$

In Stock, only 1 left!

0

41

Murray 709192

Screw 1/4-20 unc x 1/2

$5.49

$

Usually ships in 2-12 days

0

42

Murray 709053

Cover Terminal Red

$9.49

$

Usually ships in 2-12 days

0

43

Murray 705055

Solenoid

$44.99

$

Usually ships in 2-12 days

0

55

Murray 709152

Screw 5/16-18 x 3/4

$12.99

$

Usually ships in 2-12 days

0

71

Murray 708350

Harness Ign. Chass.

$63.99

$

Usually ships in 2-12 days

0

79

Murray 709171

Socket Asm. Bulb

$13.99

$

Usually ships in 2-12 days

0

87

Murray 705118

Switch Interlock Clutch Cable

$36.99

$

Usually ships in 2-12 days

0

90

Murray 709377

Cover Terminal

$4.99

$

Usually ships in 2-12 days

0

92

Murray 709283

Harness Pigtail ROS

$12.99

$

Usually ships in 2-12 days

0

93

Murray 709245

Screw Plastic 10-14 x 2.0

$53.99

$

Usually ships in 2-12 days

0

94

Murray 709238

Modual Reverse ROS

$34.99

$

Usually ships in 2-12 days

0
