7800735 (96042010000) - Yard King 42" Lawn Tractor, 17.5hp (2011) Engine Group (7800735engine) Parts Diagram

42" Lawn Tractor, 17.5hp

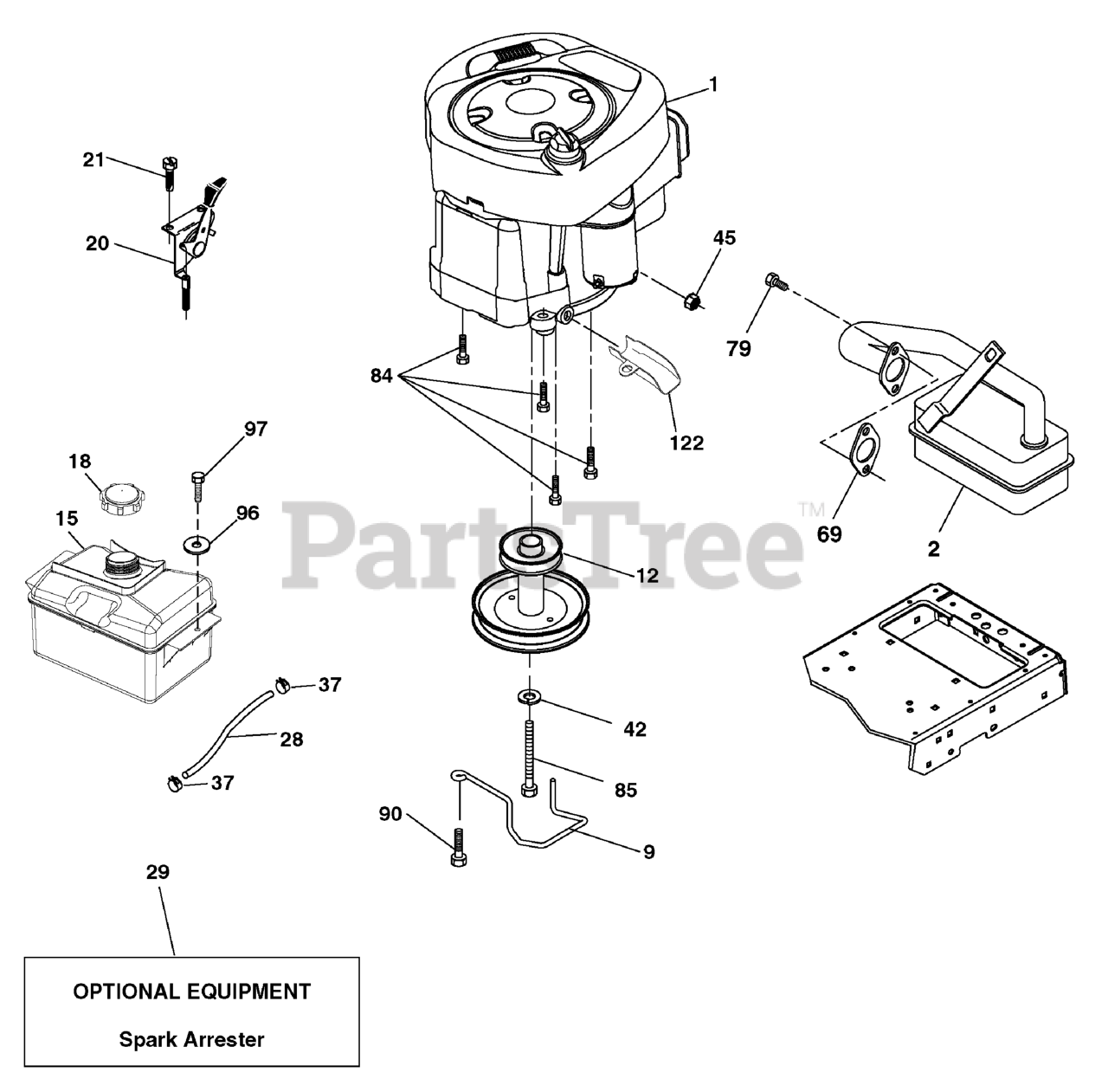

Engine Group (7800735engine) Parts Diagram

  • Title

1

Murray 31G777-1413-B1

* Engine, Briggs & Stratton

Note: ( Engine Model: 31G777-1413-B1 )

$

$

Currently unavailable

2

Murray 709066

Muffler

$100.99

$

In Stock, only 1 left!

0

9

Murray 708240

Keeper Belt Engine

$25.99

$

Usually ships in 2-12 days

0

12

Murray 708363

Pulley Engine

$138.99

$

Usually ships in 2-12 days

0

15

Murray 708386

Tank Fuel 1.50
(Superseded to 708513)

$138.99

$

Usually ships in 2-12 days

0

18

Murray 709369

Cap Asm

$39.99

$

Usually ships in 2-12 days

0

20

Murray 708011

Control Throttle/Choke

$62.99

$

Usually ships in 2-12 days

0

21

Murray 709330

Screw #10 x 0.750
(Superseded to 705233)

$4.99

$

Usually ships in 2-12 days

0

28

Murray 770310

Fuel Line

$8.49

$

Usually ships in 2-12 days

0

29

Murray 709065

Spark Arrester Kit

$109.99

$

Usually ships in 2-12 days

0

37

Murray 709034

Clamp Hose

$4.99

$

Usually ships in 2-12 days

0

42

Murray 709004

Washer Lock 7/16
(Superseded to 705317)

$4.99

$

In Stock, only 1 left!

0

45

Murray 709428

Nut Keps Hex 1/4-20 unc
(Superseded to 709054)

$4.99

$

Usually ships in 2-12 days

0

69

Murray 709117

Gasket

$24.99

$

In Stock, only 1 left!

0

79

Murray 709243

Screw Socket Hd 5/16-18 x .75
(Superseded to 705054)

$4.49

$

In Stock, only 2 left!

0

84

Murray 709153

Screw 3/8-16 x 1-1/4

$5.49

$

Usually ships in 2-12 days

0

85

Murray 709157

Bolt Hex 7/16-20 x 4 x Gr. 5-1.5
(Superseded to 705032)

$7.99

$

Usually ships in 2-12 days

0

90

Murray 709149

Screw 3/8-16 x 1.0

$9.99

$

Usually ships in 2-12 days

0

96

Murray 709223

Washer 9/32 x 7/8 x 16 Ga.
(Superseded to 705332)

$7.49

$

Usually ships in 2-12 days

0

97

Murray 709189

Screw 1/4-20 x 3/4
(Superseded to 705329)

$4.49

$

Usually ships in 2-12 days

0

122

Murray 709348

Extension Drain Oil
(Superseded to 705238)

$6.99

$

Usually ships in 2-12 days

0
