7800737 (96042010300) - Yard King 46" Lawn Tractor, 22hp (2011) Electrical Group (7800737elec) Parts Diagram

46" Lawn Tractor, 22hp

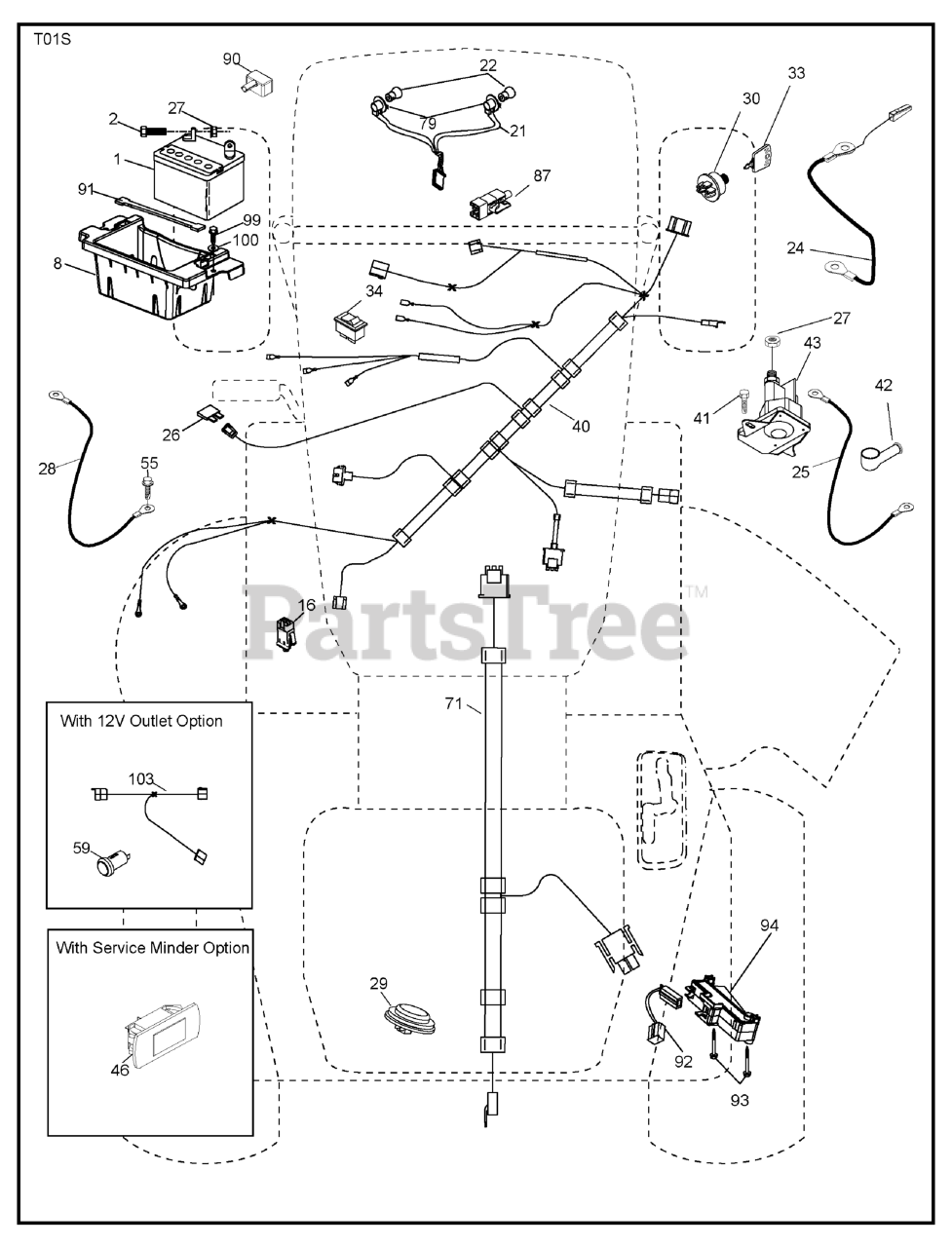

Electrical Group (7800737elec) Parts Diagram

  • Title

1

Murray 709116

Battery

$204.99

$

In Stock, only 2 left!

0

2

Murray 709438

Bolt Hex Hd 1/4-20 unc x 3/4

$6.49

$

Usually ships in 2-12 days

0

8

Murray 705046

Box Battery

$29.99

$

Usually ships in 2-12 days

0

16

Murray 705042

Switch Interlock

$20.99

$

Usually ships in 2-12 days

0

21

Murray 770329

Harness Socket Light

$38.99

$

Usually ships in 2-12 days

0

22

Murray 709329

Bulb, Light # 1156
(Superseded to 704984)

$6.99

$

Usually ships in 2-12 days

0

24

Murray 705135

Cable Btry

$15.99

$

In Stock, only 1 left!

0

25

Murray 708403

Cable Battery 6 Ga. Red 14.5

$24.99

$

Usually ships in 2-12 days

0

26

Murray 705040

Fuse

$7.49

$

Usually ships in 2-12 days

0

27

Murray 709428

Nut Keps Hex 1/4-20 unc

$4.49

$

In Stock, only 2 left!

0

28

Murray 708043

Cable Ground

$12.99

$

Usually ships in 2-12 days

0

29

Murray 770337

Switch Seat

$52.99

$

Usually ships in 2-12 days

0

30

Murray 705064

Switch Ign

$95.99

$

Usually ships in 2-12 days

0

33

Murray 704428

Key/Chain

$21.99

$

In Stock, only 1 left!

0

34

Murray 709017

Switch Light/Reset

$6.49

$

Usually ships in 2-12 days

0

40

Murray 705140

Harness Ign

$182.99

$

In Stock, only 1 left!

0

41

Murray 709192

Screw 1/4-20 unc x 1/2

$5.49

$

Usually ships in 2-12 days

0

42

Murray 709053

Cover Terminal Red

$8.99

$

Usually ships in 2-12 days

0

43

Murray 705055

Solenoid

$43.99

$

In Stock, only 1 left!

0

55

Murray 709152

Screw 5/16-18 x 3/4

$12.99

$

Usually ships in 2-12 days

0

71

Murray 705067

Harness Ign. Chass.

$58.99

$

Usually ships in 2-12 days

0

79

Murray 709171

Socket Asm. Bulb

$12.99

$

Usually ships in 2-12 days

0

87

Murray 705118

Switch Interlock Clutch Cable

$34.99

$

Usually ships in 2-12 days

0

90

Murray 709377

Cover Terminal

$4.49

$

Usually ships in 2-12 days

0

91

Murray 705053

Strap Battery

$10.99

$

Usually ships in 2-12 days

0

92

Murray 709283

Harness Pigtail ROS

$11.99

$

Usually ships in 2-12 days

0

93

Murray 709245

Screw Plastic 10-14 x 2.0

$52.99

$

Usually ships in 2-12 days

0

94

Murray 709238

Modual Reverse ROS

$32.99

$

Usually ships in 2-12 days

0

99

Murray 709189

Screw Hexwsh Thdrol 1/4-20 x 3/4

$4.49

$

Usually ships in 2-12 days

0

100

Murray 709223

Washer 9/32 x 7/8 x 16 Ga.
(Superseded to 705332)

$7.49

$

Usually ships in 2-12 days

0
