7800737 (96042010300) - Yard King 46" Lawn Tractor, 22hp (2011) Engine Group (7800737engine) Parts Diagram

46" Lawn Tractor, 22hp

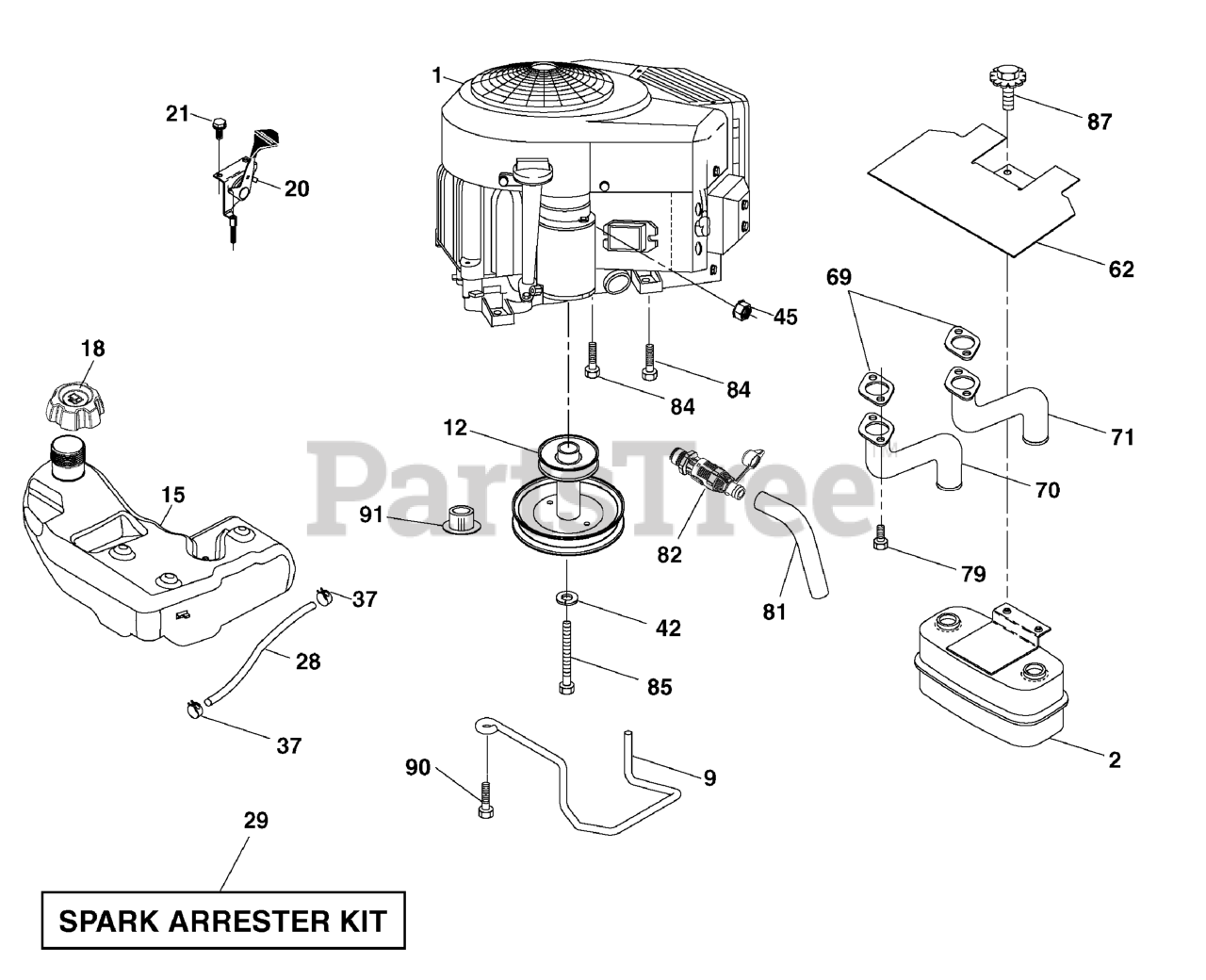

Engine Group (7800737engine) Parts Diagram

  • Title

1

Murray 407777-1195-B1

* Engine, Briggs & Stratton

Note: ( Engine Model: 407777-1195-B1 )

$

$

Currently unavailable

2

Murray 707983

Muffler

$106.99

$

Usually ships in 2-12 days

0

9

Murray 708240

Keeper Belt Engine

$25.99

$

Usually ships in 2-12 days

0

12

Murray 405140

Pulley Engine

$

$

Not available

15

Murray 705255

Tank Fuel

$368.99

$

Usually ships in 2-12 days

0

18

Murray 705246

Cap Asm

$53.99

$

Usually ships in 2-12 days

0

20

Murray 708673

Control Throttle/Choke

$45.99

$

Usually ships in 2-12 days

0

21

Murray 709330

Screw #10 x 0.750
(Superseded to 705233)

$4.99

$

Usually ships in 2-12 days

0

28

Murray 708690

Fuel Line

$27.99

$

Usually ships in 2-12 days

0

29

Murray 709065

Spark Arrester Kit

$109.99

$

Usually ships in 2-12 days

0

37

Murray 709034

Clamp Hose

$4.99

$

Usually ships in 2-12 days

0

42

Murray 709004

Washer Lock 7/16
(Superseded to 705317)

$4.99

$

In Stock, only 2 left!

0

45

Murray 709428

Nut Keps Hex 1/4-20 unc
(Superseded to 709054)

$4.99

$

Usually ships in 2-12 days

0

62

Murray 705252

Shield Heat Muffler

$15.99

$

Usually ships in 2-12 days

0

69

Murray 705028

Gasket

$30.99

$

In Stock, only 1 left!

0

70

Murray 159955

Exhaust Tube LH

$44.99

$

In Stock, Qty 8

0

71

Murray 160589

Exhaust Tube RH

$28.99

$

In Stock, Qty 6

0

79

Murray 705044

Screw Socket Hd 5/16-18 x 1

$7.49

$

Usually ships in 2-12 days

0

81

Murray 770311

Tube Drain Oil Easy

$8.99

$

Usually ships in 2-12 days

0

82

Murray 709359

Valve Drain Oil
(Superseded to 705244)

$24.99

$

Usually ships in 2-12 days

0

84

Murray 709153

Screw 3/8-16 x 1-1/4

$5.49

$

Usually ships in 2-12 days

0

85

Murray 709157

Bolt Hex 7/16-20 x 4 x Gr. 5-1.5
(Superseded to 705032)

$7.99

$

Usually ships in 2-12 days

0

87

Murray 705031

Bolt 5/16-18 unc x 3/4

$7.49

$

Usually ships in 2-12 days

0

90

Murray 709149

Screw 3/8-16 x 1.0

$9.99

$

Usually ships in 2-12 days

0

91

Murray 187495

Bushing
(Superseded to 711778)

$10.99

$

In Stock, only 4 left!

0
