7800737 (96042010300) - Yard King 46" Lawn Tractor, 22hp (2011) Mower Deck (7800737deck) Parts Diagram

46" Lawn Tractor, 22hp

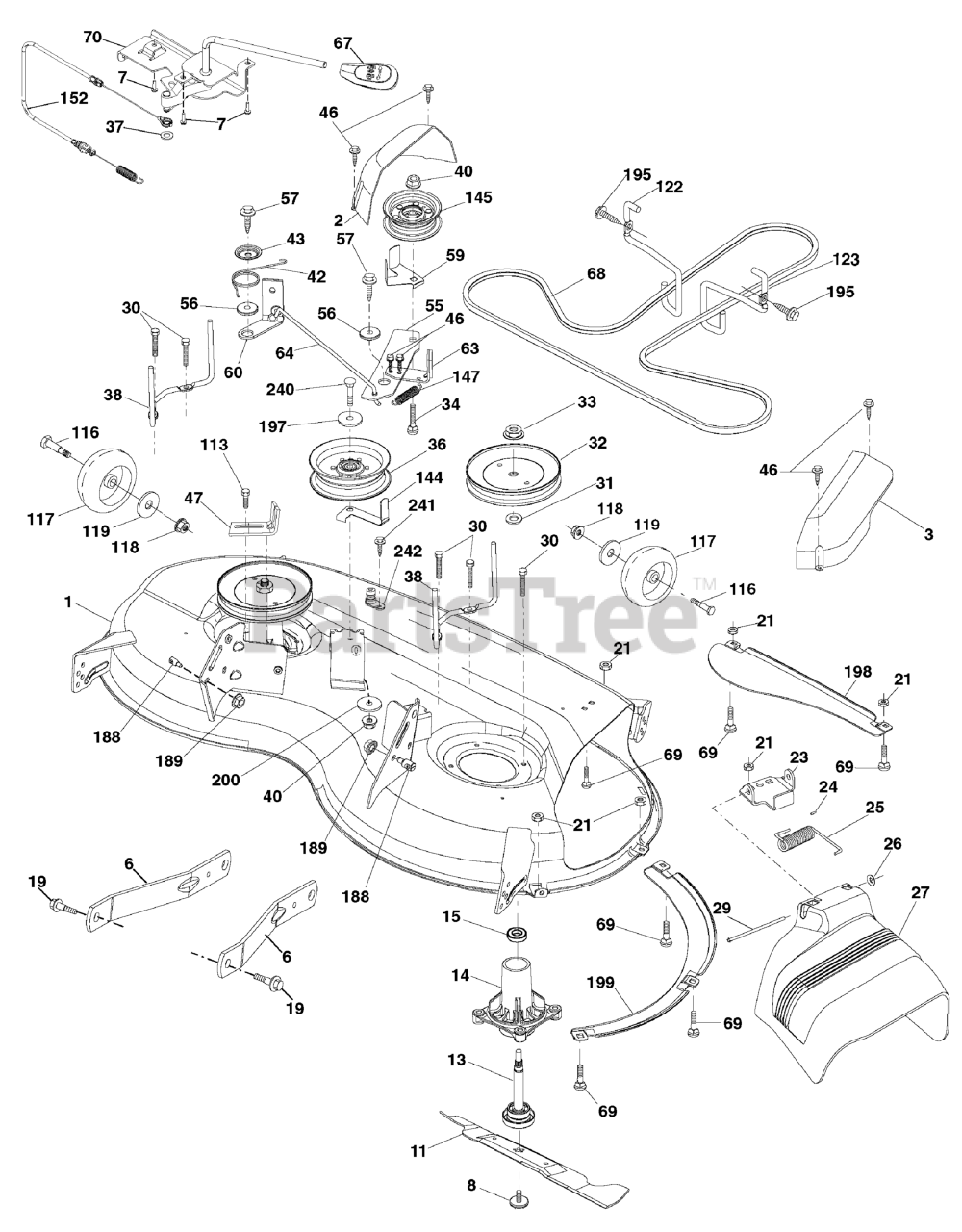

Mower Deck (7800737deck) Parts Diagram

  • Title

1

Murray 441611

Mower Housing

$

$

Currently unavailable

2

Murray 405507

Cover Mandrel LH

$47.99

$

In Stock, Qty 8

0

3

Murray 705171

Cover Mandrel RH

$24.99

$

In Stock, only 1 left!

0

6

Murray 705090

Arm Suspension

$26.99

$

Usually ships in 2-12 days

0

7

Murray 709330

Screw #10 x 0.750 BOS Thread

$3.99

$

Usually ships in 2-12 days

0

8

Murray 709258

Bolt/Washer Asm 7/16-20 unf
(Superseded to 705059)

$19.99

$

In Stock, only 2 left!

0

11

Murray 704425

Blade Mower Hi-Lift

$40.99

$

Usually ships in 2-12 days

0

13

Murray 705058

Shaft Assembly, Mandrel
(Superseded to 705057)

$106.99

$

Usually ships in 2-12 days

0

14

Murray 705048

Housing, Mandrel
(Superseded to 705057)

$106.99

$

Usually ships in 2-12 days

0

15

Murray 704992

Bearing, Ball, Mandrel

$23.99

$

In Stock, only 1 left!

0

19

Murray 705100

Bolt, Shoulder

$15.99

$

Usually ships in 2-12 days

0

21

Murray 709430

Nut
(Superseded to 705350)

$5.99

$

Usually ships in 2-12 days

0

23

Murray 709247

Bracket, Deflector

$5.99

$

Usually ships in 2-12 days

0

24

Murray 709007

Cap, Sleeve

$3.99

$

Usually ships in 2-12 days

0

25

Murray 709286

Spring, Torsion, Deflector
(Superseded to 705103)

$18.99

$

Usually ships in 2-12 days

0

26

Murray 709016

Nut, Push
(Superseded to 704991)

$7.99

$

In Stock, only 2 left!

0

27

Murray 405357

Shield, Deflector

$74.99

$

In Stock, Qty 8

0

29

Murray 709051

Rod, Hinge
(Superseded to 705009)

$7.99

$

In Stock, only 1 left!

0

30

Murray 709158

Screw Thdrol Rolling Wsh Hd
(Superseded to 709771)

$7.49

$

In Stock, Qty 20+

0

31

Murray 709215

Washer, Spacer
(Superseded to 705050)

$7.99

$

In Stock, only 3 left!

0

32

Murray 705115

Pulley, Mandrel
(Superseded to 709731)

$34.99

$

In Stock, only 1 left!

0

33

Murray 709296

Nut, Toplock, Flanged
(Superseded to 705134)

$11.99

$

In Stock, only 1 left!

0

34

Murray 709417

Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5

$4.99

$

Usually ships in 2-12 days

0

36

Murray 705114

Pulley, Idler
(Superseded to 709729)

$70.99

$

In Stock, only 4 left!

0

37

Murray 709228

Washer 13/32 x 13/16 x 16 Ga.

$4.49

$

Usually ships in 2-12 days

0

38

Murray 705248

Keeper Belt Mandrel

$17.99

$

Usually ships in 2-12 days

0

40

Murray 709088

Nut, Lock Flg. 3/8-16 unc

$8.99

$

In Stock, only 3 left!

0

42

Murray 705123

Spring Torsion Brake

$9.99

$

Usually ships in 2-12 days

0

43

Murray 705108

Spring Torsion Retainer

$8.49

$

Usually ships in 2-12 days

0

46

Murray 709067

Screw
(Superseded to 705013)

$8.99

$

In Stock, only 1 left!

0

47

Murray 705105

Bracket Clutch Cable

$8.99

$

Usually ships in 2-12 days

0

55

Murray 197249

Arm, Idler

$

$

Not available

56

Murray 705124

Spacer, Retainer

$12.99

$

In Stock, Qty 5

0

57

Murray 709149

Screw Hexwsh Thd 3/8-16 x 1

$9.99

$

Usually ships in 2-12 days

0

59

Murray 709079

Guard, Tuv Idler (94)
(Superseded to 705018)

$9.99

$

Usually ships in 2-12 days

0

60

Murray 199471

Arm Brake Mower

$15.99

$

In Stock, Qty 20+

0

63

Murray 705128

Arm Brake Mower

$41.99

$

Usually ships in 2-12 days

0

64

Murray 705162

Linkage Brake
(Superseded to 709794)

$65.99

$

Usually ships in 2-12 days

0

67

Murray 770320

Handle, Clutch Cable

$14.99

$

Usually ships in 2-12 days

0

68

Murray 704427

V-Belt
(Superseded to 709795)

$77.99

$

Usually ships in 2-12 days

0

69

Murray 709422

Bolt
(Superseded to 705344)

$7.99

$

Usually ships in 2-12 days

0

70

Murray 199972

Clutch Asm. Manual

$87.99

$

In Stock, Qty 20+

0

113

Murray 709147

Screw 5/16-18
(Superseded to 705320)

$10.99

$

Usually ships in 2-12 days

0

116

Murray 4898H

Bolt, Shoulder

$

$

Not available

117

Murray 188606

Wheel, Gauge

$

$

Not available

118

Murray 708495

Nut, Crownlock 3/8-1
(Superseded to 705351)

$6.49

$

Usually ships in 2-12 days

0

119

Murray 19121414

Washer 13/32 x 7/8 x 14 Ga.

$

$

Not available

122

Murray 705109

Keeper Belt Eng. LH

$

$

Not available

123

Murray 705110

Keeper Belt Eng. RH

$32.99

$

In Stock, only 1 left!

0

144

Murray 705126

Keeper Belt

$13.99

$

Usually ships in 2-12 days

0

145

Murray 705061

Pulley Idler Primary
(Superseded to 708000)

$60.99

$

Usually ships in 2-12 days

0

147

Murray 705147

Spring Return

$9.49

$

In Stock, only 1 left!

0

152

Murray 708452

Cable Clutch Manual w/Spr.

$50.99

$

Usually ships in 2-12 days

0

188

Murray 705088

Stud Fastener

$12.99

$

In Stock, only 2 left!

0

189

Murray 708491

Nut Lock Hex Flange

$7.99

$

Usually ships in 2-12 days

0

195

Murray 709148

Screw 3/8-16 x 3/4

$7.49

$

In Stock, only 1 left!

0

197

Murray 709227

Washer 13/32 x 13/16 x 12 Ga.

$4.99

$

Usually ships in 2-12 days

0

198

Murray 705153

Baffle Center Front

$47.99

$

In Stock, only 2 left!

0

199

Murray 705154

Baffle Front RH

$53.99

$

Usually ships in 2-12 days

0

200

Murray 705228

Washer 13/32 x 1 x 1/2 11 Ga.

$6.99

$

Usually ships in 2-12 days

0

240

Murray 74520636

Bolt Fin Hex 3/8-16 x 2-1/4 Gr. 5

$

$

Currently unavailable

241

Murray 709095

Screw

$4.99

$

Usually ships in 2-12 days

0

242

Murray 705231

Washout Port

$16.99

$

In Stock, only 1 left!

0

--

Murray 705057

Mandrel Assembly (Includes

$106.99

$

Usually ships in 2-12 days

0

--

Murray 418063

Replacement Mower, Complete

$

$

Not available
