7800738 (96042010400) - Yard King 48" Lawn Tractor, 23hp (2011) Chassis Group (7800738chassis) Parts Diagram

48" Lawn Tractor, 23hp

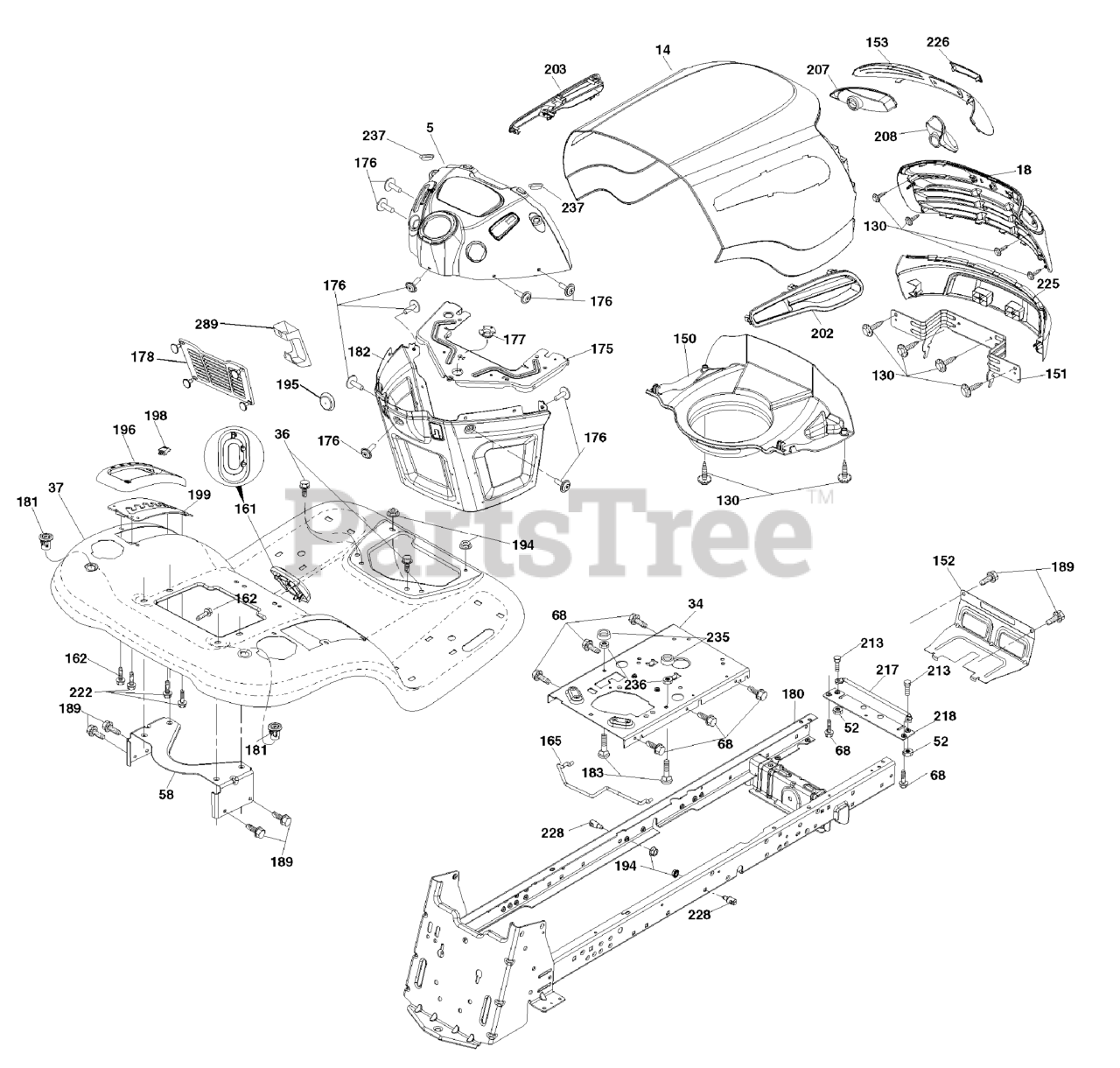

Chassis Group (7800738chassis) Parts Diagram

  • Title

5

Murray 421811X428

** Dash

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

14

Murray 404654X615

** Hood

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

18

Murray 404623X428

** Grille

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

34

Murray 708274

Plate Engine

$108.99

$

Usually ships in 2-12 days

0

36

Murray 709152

Screw 5/16-18 x 3/4

$12.99

$

Usually ships in 2-12 days

0

37

Murray 400009X615

** Fender

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

52

Murray 709430

Nut Crownlock 5/16-18
(Superseded to 705350)

$5.99

$

Usually ships in 2-12 days

0

58

Murray 708237

Bracket Support Fender

$49.99

$

Usually ships in 2-12 days

0

68

Murray 709162

Screw 5/16-18 x 1/2

$5.49

$

Usually ships in 2-12 days

0

130

Murray 709330

Screw 10 x .750 BOS Thread
(Superseded to 705233)

$4.99

$

Usually ships in 2-12 days

0

150

Murray 199411

** Air Duct

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

151

Murray 196332

** Bracket Pivot

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

152

Murray 705129

Shield Browning

$38.99

$

Usually ships in 2-12 days

0

153

Murray 198965

** Lens Bar

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

161

Murray 708600

Window Fuel

$10.99

$

Usually ships in 2-12 days

0

162

Murray 709081

Screw
(Superseded to 705019)

$5.49

$

Usually ships in 2-12 days

0

165

Murray 705101

Support Tank Rear

$35.99

$

Usually ships in 2-12 days

0

175

Murray 196304

** Crossmember

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

176

Murray 705137

Screw 10-24 x 5/8

$15.99

$

Usually ships in 2-12 days

0

177

Murray 705091

Bushing Steering

$13.99

$

In Stock, only 3 left!

0

178

Murray 708346

Cargo Asm. Net
(Superseded to 708003)

$507.99

$

Usually ships in 2-12 days

0

180

Murray 708264

Chassis

$507.99

$

Usually ships in 2-12 days

0

181

Murray 705433

Bushing Mtg. Fender Crgo

$8.99

$

Usually ships in 2-12 days

0

182

Murray 406859

** Dash Lower

Note: (This part is not serviced by Briggs & Stratton.)

$113.99

$

In Stock, Qty 5

0

183

Murray 705360

Bolt 5/16-18 x 1-1/4

$5.49

$

Usually ships in 2-12 days

0

189

Murray 705321

Screw 5/16-18 x 3/4
(Superseded to 709742)

$8.99

$

Usually ships in 2-12 days

0

194

Murray 708491

Nut Lock Hex Flange 5/16-18

$7.99

$

Usually ships in 2-12 days

0

195

Murray 401556X428

** Plug Hole Dash

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

196

Murray 196379X428

** Console Asm. Deck Lift

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

198

Murray 197300X505

** Indicator Deck Lift
(Superseded to 705260)

Note: (This part is not serviced by Briggs & Stratton.)

$34.99

$

Usually ships in 2-12 days

0

199

Murray 708285

Plate Deck Lift

$37.99

$

Usually ships in 2-12 days

0

202

Murray 437914X428

** Vent Side Hood RH

Note: (This part is not serviced by Briggs & Stratton.)

$8.49

$

Usually ships in 3-10 days

0

203

Murray 437913X428

** Vent Side Hood LH

Note: (This part is not serviced by Briggs & Stratton.)

$8.49

$

Usually ships in 3-10 days

0

207

Murray 198964

** Bezel LH

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

208

Murray 198963

** Bezel RH

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

213

Murray 709439

Bolt Hex HD 5/16-18 unc x 3/4
(Superseded to 705363)

$5.99

$

Usually ships in 2-12 days

0

217

Murray 709322

Rod Pivot Hood
(Superseded to 705180)

$6.49

$

Usually ships in 2-12 days

0

218

Murray 705099

X-Piece Hood Stop

$8.49

$

Usually ships in 2-12 days

0

222

Murray 709067

Screw 1/4-20 x 5/8
(Superseded to 705013)

$8.99

$

Usually ships in 2-12 days

0

225

Murray 198962X615

** Bumper

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

226

Murray 198967X428

** Logo

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

228

Murray 705088

Stud Fastner

$13.99

$

In Stock, only 1 left!

0

235

Murray 705173

Spacer Fender

$6.49

$

Usually ships in 2-12 days

0

236

Murray 705355

Nut Lock 5/16-18 unc

$13.99

$

In Stock, only 1 left!

0

237

Murray 770340

Plug Mount Cargo

$6.49

$

Usually ships in 2-12 days

0

289

Murray 199783X428

** Plug Cruise Phone

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available
