7800902 (CD 2045 FC) - Canadiana 20" Walk-Behind Mower, Canada (2012) Deck & Engine Group (7800902deck) Parts Diagram

20" Walk-Behind Mower, Canada

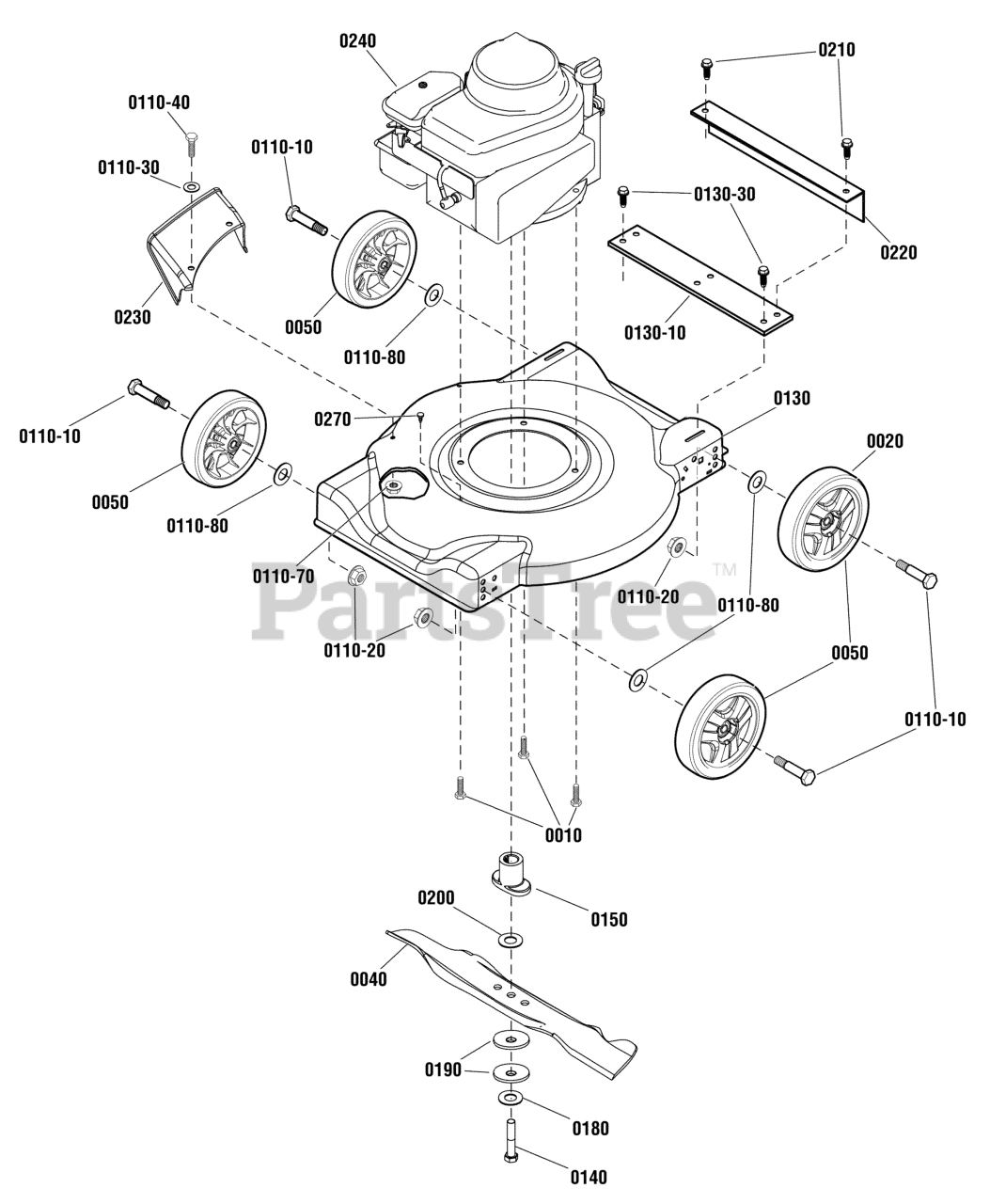

Deck & Engine Group (7800902deck) Parts Diagram

  • Title

0010

Murray 7090324SM

SCREW, Hex Washer Head, Self Tap, 3/8-16 x 1
(Superseded to 704000)

$5.49

$

In Stock, Qty 13

0

0040

Murray 042785E701MA

BLADE, 20"

$23.99

$

Usually ships in 2-12 days

0

0050

Murray 7102068YP

WHEEL, 7 x 1-1/2

$24.99

$

Usually ships in 2-12 days

0

0110-10

Murray 009X10MA

BOLT, Shoulder, 3/8-16 x 2

$

$

Not available

0110-20

Murray 015X68MA

NUT, Hex Flange, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0010-30

Murray 017X37MA

WASHER, Flat, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0010-40

Murray 01X121MA

CAPSCREW, Hex Head, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, only 3 left!

0

0010-70

Murray 1908125MA

NUT, Hex Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 11

0

0010-80

Murray 17X168ZMA

WASHER, Flat, 3/8

$6.49

$

Usually ships in 2-12 days

0

0130

Murray 7502003BNYP

DECK, 20"

$211.99

$

Usually ships in 2-12 days

0

0130-10

Murray 7300714YP

EXTENSION, Housing, 20"

$8.49

$

Usually ships in 2-12 days

0

0130-30

Murray 26X245MA

SCREW, Hex Washer Head, 10-B x 1/2

$4.49

$

In Stock, Qty 10

0

0140

Murray 01X142MA

CAPSCREW, Hex Head, 3/8-24 x 1-1/2

$8.49

$

In Stock, Qty 8

0

0150

Murray 071056MA

ADAPTER, Blade

$10.99

$

Usually ships in 2-12 days

0

0180

Murray 17X124MA

WASHER, Flat, 0.4

$4.49

$

In Stock, only 2 left!

0

0190

Murray 17X137MA

WASHER, Belleville

$5.49

$

In Stock, only 2 left!

0

0200

Murray 17X191MA

WASHER, Flat, 0.4

$3.99

$

Usually ships in 2-12 days

0

0210

Murray 26X245MA

SCREW, Hex Washer Head, 10-B x 1/2

$4.49

$

In Stock, Qty 10

0

0220

Murray 671912MA

GUARD, Rear

$15.99

$

In Stock, only 2 left!

0

0230

Murray 671929MA

DEFLECTOR

$28.99

$

Usually ships in 2-12 days

0

0240

Murray 09L602-0110-F1

* ENGINE, 450 Series Briggs & Stratton

Note: (Engine Model: 09L602-0110-F1)

$

$

Currently unavailable

0270

Murray 0193X1MA

PLUG, Panel

$4.49

$

In Stock, only 1 left!

0
