7800904 (C 22550 FC) - Canadiana 22" Walk-Behind Mower, Canada (2012) Deck Group (7502904) Parts Diagram

22" Walk-Behind Mower, Canada

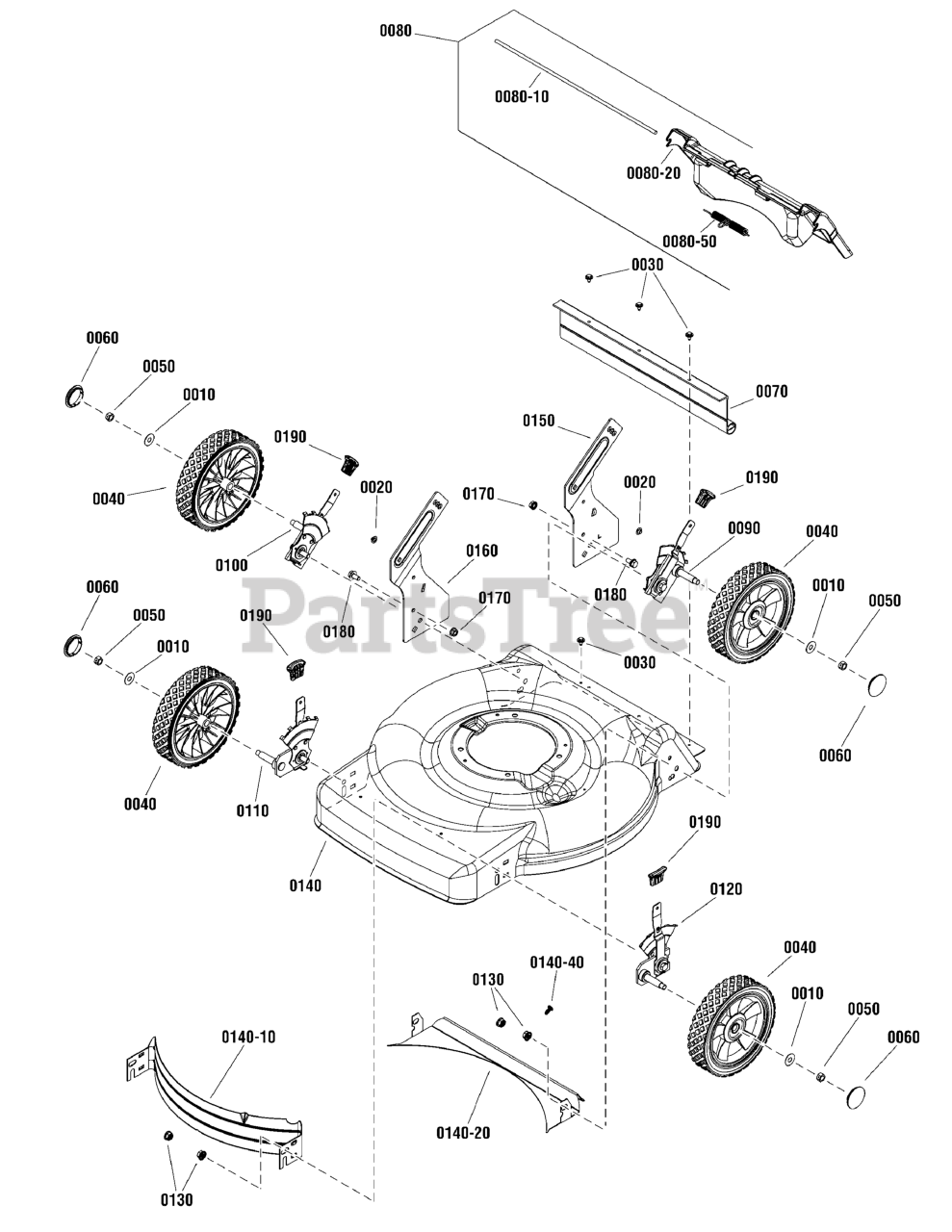

Deck Group (7502904) Parts Diagram

  • Title

0010

Murray 17X169MA

WASHER, Flat, 3/8
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

0020

Murray 7091020YP

PUSH NUT, 1/4 BZ
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

0030

Murray 7091286YP

SCREW, Self Tap, SEMS, 10-24 x 1/2

$4.99

$

In Stock, Qty 17

0

0040

Murray 7502378YP

WHEEL, 8 x 2 Diamond-Pewter

$37.99

$

Usually ships in 2-12 days

0

0050

Murray 7091585SM

NUT, 3/8-16 Hex Center Lock, GR 5 YZ
(Superseded to 703347)

$4.99

$

In Stock, Qty 17

0

0060

Murray 1751539YP

HUBCAP, P290-Black

$4.99

$

Usually ships in 2-12 days

0

0070

Murray 7103347YP

GUARD, Rear, 22" Deck Mower

$

$

Not available

0080

Murray 7500416YP

DOOR ASSEMBLY

Note: (Incl. Ref. Nos. 0080-10, 0080-20, 0080-50)

$75.99

$

Usually ships in 2-12 days

0

0080-10

Murray 7101070YP

ROD, Pivot, Rear Door

Note: (Included with Ref. No. 0080)

$6.49

$

Usually ships in 2-12 days

0

0080-20

Murray 7101243YP

DOOR, Rear Discharge, 22" Walk Mower

Note: (Included with Ref. No. 0080)

$51.99

$

Usually ships in 2-12 days

0

0080-50

Murray 7101461YP

SPRING, Torsion, Rear Door, 22" Walk Mower

Note: (Included with Ref. No. 0080)

$6.99

$

Usually ships in 2-12 days

0

0090

Murray 7501055YP

ASSEMBLY, Height-Of-Cut, 22", 7 Position, Left Rear

$28.99

$

Usually ships in 2-12 days

0

0100

Murray 7501056YP

ASSEMBLY, Height-Of-Cut, 22", 7 Position, Right Rear

$41.99

$

Usually ships in 2-12 days

0

0110

Murray 7501293YP

ASSEMBLY, Height-of-Cut, 22" WBM, Right Front

$38.99

$

Usually ships in 2-12 days

0

0120

Murray 7501294YP

ASSEMBLY, Height-of-Cut, 22" WBM, Left Front

$36.99

$

Usually ships in 2-12 days

0

0130

Murray 7900053MA

NUT, 3/8-16 Hex Flange Lock

$3.99

$

Usually ships in 2-12 days

0

0140

Murray 7502901BNYP

DECK, 22" WBM

Note: (Incl. Ref. Nos. 0140-10, 0140-20, 0140-40)

$199.99

$

Usually ships in 2-12 days

0

0140-10

Murray 7300440BNYP

BAFFLE, Front, 22" WBM

Note: (Included with Ref. No. 0140)

$133.99

$

Usually ships in 2-12 days

0

0140-20

Murray 7300854BNYP

BAFFLE, Rear, 22" Deck

Note: (Included with Ref. No. 0140)

$24.99

$

Usually ships in 2-12 days

0

0140-40

Murray 7900067YP

SCREW, Pan Head, Self Tap, Torx, 1/4-20 x 1/2

Note: (Included with Ref. No. 0140)

$4.49

$

In Stock, Qty 20+

0

0150

Murray 7300668AYP

BRACKET, Lower Handle, Left

$31.99

$

Usually ships in 2-12 days

0

0160

Murray 7300669AYP

BRACKET, Lower Handle, Right

$31.99

$

In Stock, only 1 left!

0

0170

Murray 7090585MA

NUT, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 7

0

0180

Murray 7090606SM

BOLT, Hex Flange, 5/16-18 x 5/8
(Superseded to 703823)

$3.99

$

In Stock, Qty 7

0

0190

Murray 7103793YP

GRIP, Height Latch, Black

$4.49

$

In Stock, Qty 9

0
