7800906 (CSP 22625 FC) - Canadiana 22" Walk-Behind Mower, 625 Series Briggs, Canada (2012) Deck Group (7502976) Parts Diagram

22" Walk-Behind Mower, 625 Series Briggs, Canada

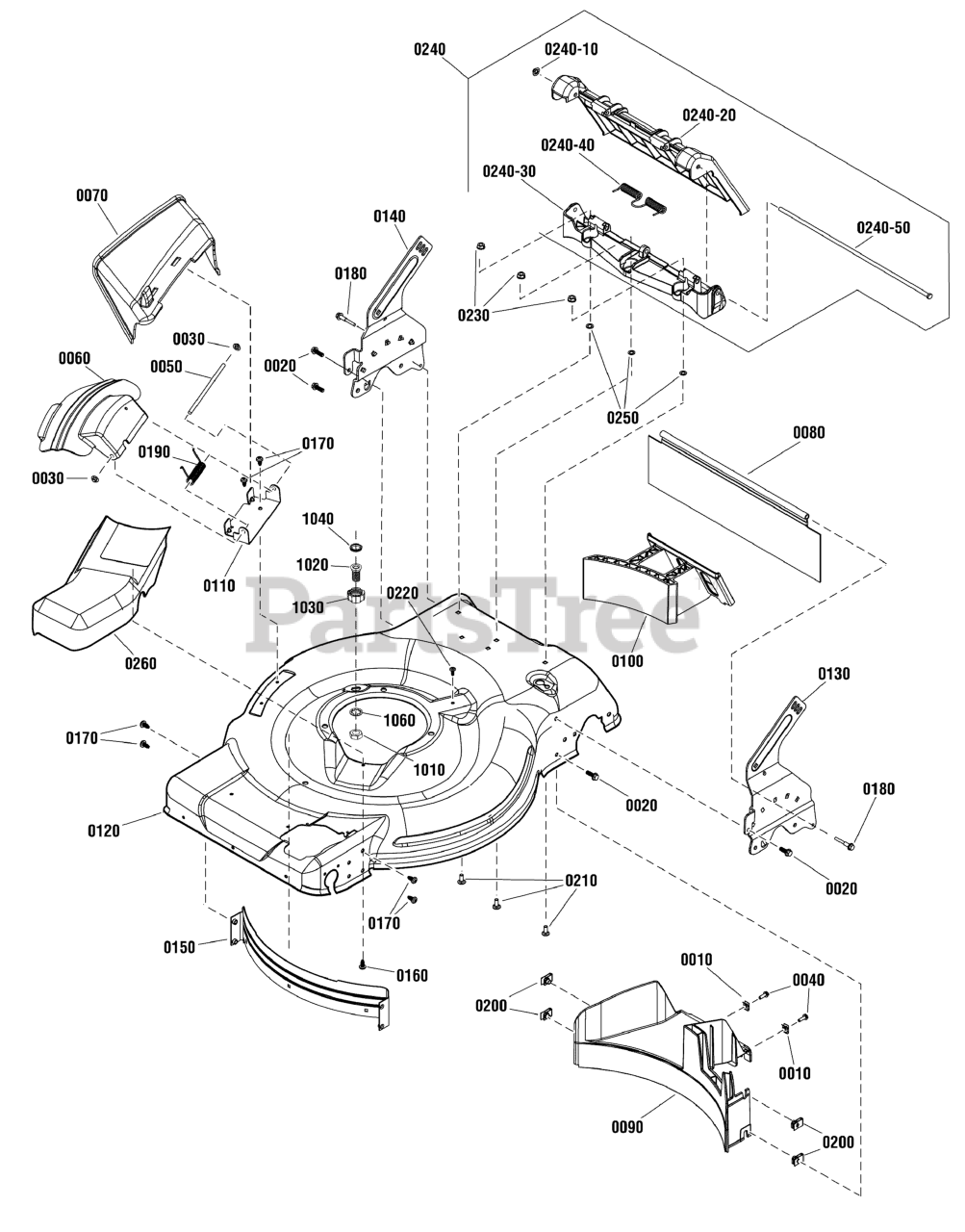

Deck Group (7502976) Parts Diagram

  • Title

0010

Murray 1960593SM

NUT, Retainer Speed, #10-24

$4.99

$

Usually ships in 2-12 days

0

0020

Murray 7090699YP

BOLT, Hex Flange, 1/4-20 x 3/4, GR 5
(Superseded to 1935450SM)

$4.49

$

In Stock, only 1 left!

0

0030

Murray 7091020YP

NUT, Push, 1/4
(Superseded to 704005)

$4.49

$

In Stock, Qty 11

0

0040

Murray 7091075SM

SCREW, Hex Washer Self Tap, #10C x 5/8, GR 5

$4.49

$

In Stock, Qty 5

0

0050

Murray 7101067YP

ROD, Pivot

$7.49

$

Usually ships in 2-12 days

0

0060

Murray 7103298YP

COVER, Mulching

$

$

Not available

0070

Murray 7103299YP

CHUTE, Side Discharge

$37.99

$

In Stock, Qty 7

0

0080

Murray 7103323YP

GUARD, Rear

$9.99

$

In Stock, only 4 left!

0

0090

Murray 7103452YP

BAFFLE, Rear, Rear Wheel Drive WBM

$54.99

$

Usually ships in 2-12 days

0

0100

Murray 7103453YP

PLUG, Mulching

$34.99

$

In Stock, only 4 left!

0

0110

Murray 7300855BMYP

BRACKET, Chute

$9.99

$

Usually ships in 2-12 days

0

0120

Murray 7301111BNYP

DECK, 22"

$211.99

$

Usually ships in 2-12 days

0

0130

Murray 7301089AYP

BRACKET, Lower Handle, LH

$22.99

$

Usually ships in 2-12 days

0

0140

Murray 7301088AYP

BRACKET, Lower Handle, RH

$22.99

$

Usually ships in 2-12 days

0

0150

Murray 7301020YP

BAFFLE, Front

$53.99

$

In Stock, only 2 left!

0

0160

Murray 7900018YP

SCREW, Round Washer Head Torx, Hi-Lo
(Superseded to 703834)

$4.49

$

In Stock, only 1 left!

0

0170

Murray 7900067YP

SCREW, Pan Head, Self Tap, Torx, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 18

0

0180

Murray 7900073YP

BOLT, Drag Shield, 1/4 - 20 x 1-1/2

$3.49

$

Usually ships in 2-12 days

0

0190

Murray 166X38MA

SPRING, Torsion

$5.49

$

In Stock, only 1 left!

0

0200

Murray 7023295SM

U-NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

0210

Murray 7090803YP

BOLT, Flat Head Square Neck, 1/4-20 x 5/8, GR 5
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

0220

Murray 0193X1MA

PLUG, Panel

$4.49

$

In Stock, only 1 left!

0

0230

Murray 15X143MA

NUT, Flange Lock, 1/4-20

$5.49

$

In Stock, Qty 13

0

0240

Murray 7501541YP

DOOR ASSEMBLY, Rear

Note: (Includes Ref. Nos. 0240-10, 0240-20, 0240-30, 0240-40 & 0240-50)

$47.99

$

Usually ships in 2-12 days

0

0240-10

Murray 7091020YP

NUT, Push, 1/4
(Superseded to 704005)

$4.49

$

In Stock, Qty 11

0

0240-20

DOOR, Rear Discharge

Note: (Not a serviceable part. Order Ref. No. 0240)

$

$

Not available

0240-30

Murray 7103292YP

HINGE, Door

$20.99

$

In Stock, only 2 left!

0

0240-40

Murray 7103309YP

SPRING, Torsion, Rear Door

$5.49

$

In Stock, only 1 left!

0

0240-50

Murray 7103322YP

ROD, Pivot, Rear Door

$3.99

$

Usually ships in 2-12 days

0

0250

Murray 1960518SM

NUT, Push, 1/4
(Superseded to 703826)

$3.49

$

In Stock, Qty 16

0

0260

Murray 7502831YP

COVER, Belt Drive, Rear

$41.99

$

Usually ships in 2-12 days

0

1010

Murray 1960716SM

NUT, Hex Jam, 5/8-11

$3.49

$

Usually ships in 2-12 days

0

1020

Murray 7103804YP

ADAPTOR, Washout Port

$6.99

$

Usually ships in 2-12 days

0

1030

Murray 7103919YP

COUPLING, Hose

$4.49

$

Usually ships in 2-12 days

0

1040

Murray 7103957YP

WASHER, Hose

$3.99

$

Usually ships in 2-12 days

0

1060

Murray 7090880YP

WASHER, Internal Tooth
(Superseded to 1960547SM)

$4.49

$

In Stock, Qty 8

0
