7800906 (CSP 22625 FC) - Canadiana 22" Walk-Behind Mower, 625 Series Briggs, Canada (2012) Handles Group (7501636) Parts Diagram

22" Walk-Behind Mower, 625 Series Briggs, Canada

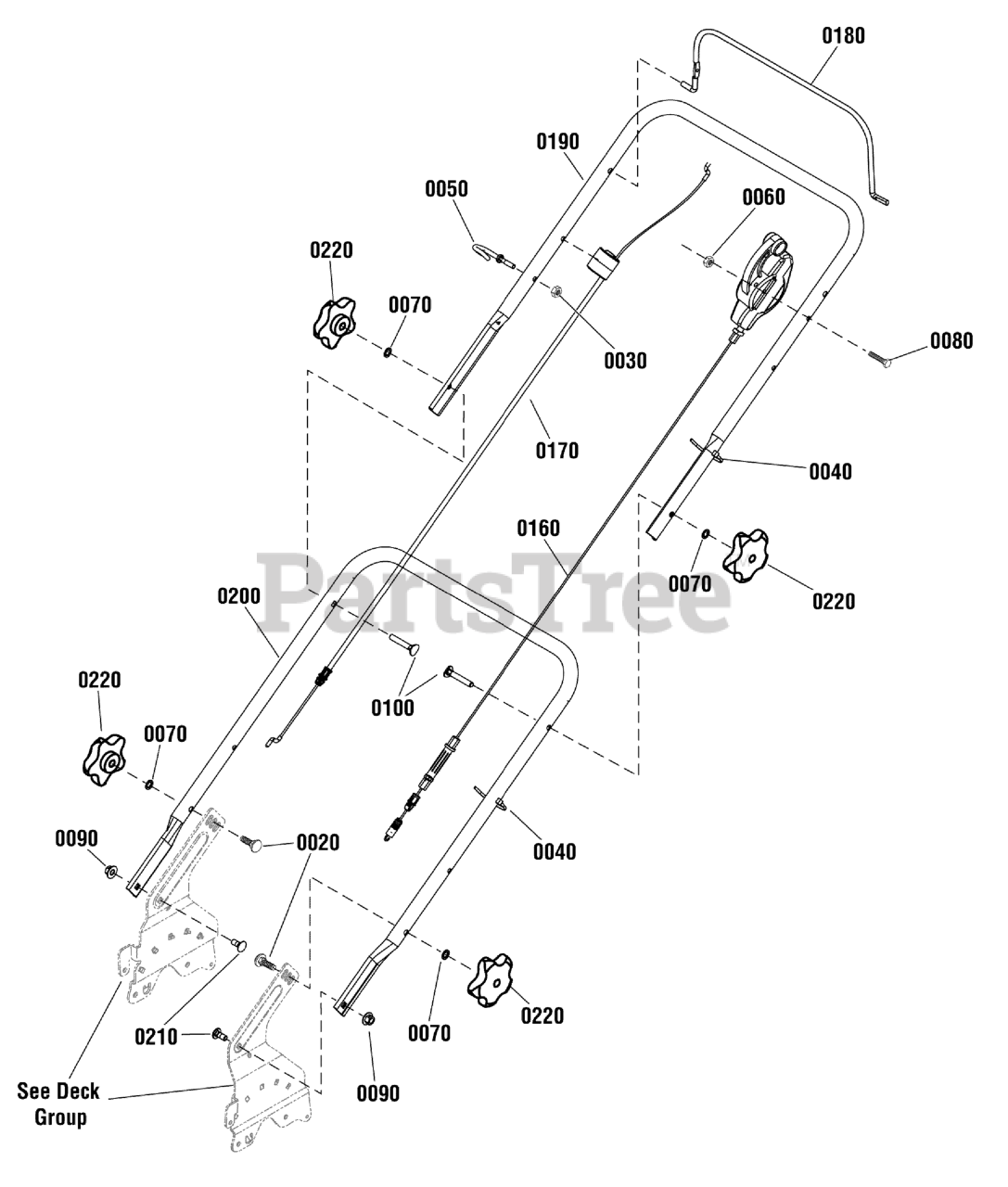

Handles Group (7501636) Parts Diagram

  • Title

0020

Murray 1931337SM

BOLT, Carriage, Short Neck, 5/16-18 x 1-1/2, G5
(Superseded to 703296)

$4.49

$

In Stock, only 3 left!

0

0030

Murray 2860694SM

NUT, Hex Flange, ESNA, 1/4-20
(Superseded to 5025391FS)

$4.49

$

In Stock, only 3 left!

0

0040

Murray 7024649YP

TIE, Self Lock

$5.49

$

Usually ships in 2-12 days

0

0050

Murray 7028488MA

GUIDE, Rope

$6.99

$

In Stock, only 3 left!

0

0060

Murray 7076978SM

NUT, Hex Lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0070

Murray 7090391SM

WASHER, Internal Tooth, 5/16
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

0080

Murray 7090892YP

CAPSCREW, Hex head, 1/4-20 x 2-1/4, G5
(Superseded to 5025010X18SM)

$3.49

$

In Stock, only 3 left!

0

0090

Murray 7090951SM

NUT, Hex Centerlock, 5/16-18
(Superseded to 704001)

$4.49

$

In Stock, only 4 left!

0

0100

Murray 7091189YP

BOLT. Carriage, Curved Head, 5/16-18 x 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 12

0

0160

Murray 1101670MA

CABLE, Drive

$58.99

$

In Stock, only 3 left!

0

0170

Murray 7103977YP

CABLE, Stop

$43.99

$

In Stock, only 4 left!

0

0180

Murray 7103491AYP

BAIL

$82.99

$

In Stock, only 1 left!

0

0190

Murray 7103492AYP

HANDLE, Upper

$56.99

$

Usually ships in 2-12 days

0

0200

Murray 7300592AMA

HANDLE, Lower
(Superseded to 7301182AYP)

$93.99

$

In Stock, only 1 left!

0

0210

Murray 340720MA

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

0220

Murray 7105085YP

KNOB, Handle

$3.99

$

In Stock, Qty 16

0
