7800907 (CE 22675 HW FC) - Canadiana 22" Walk-Behind Mower, Canada (2012) Wheel Group, Hi-Wheel, 4 Point HOC Parts Diagram

22" Walk-Behind Mower, Canada

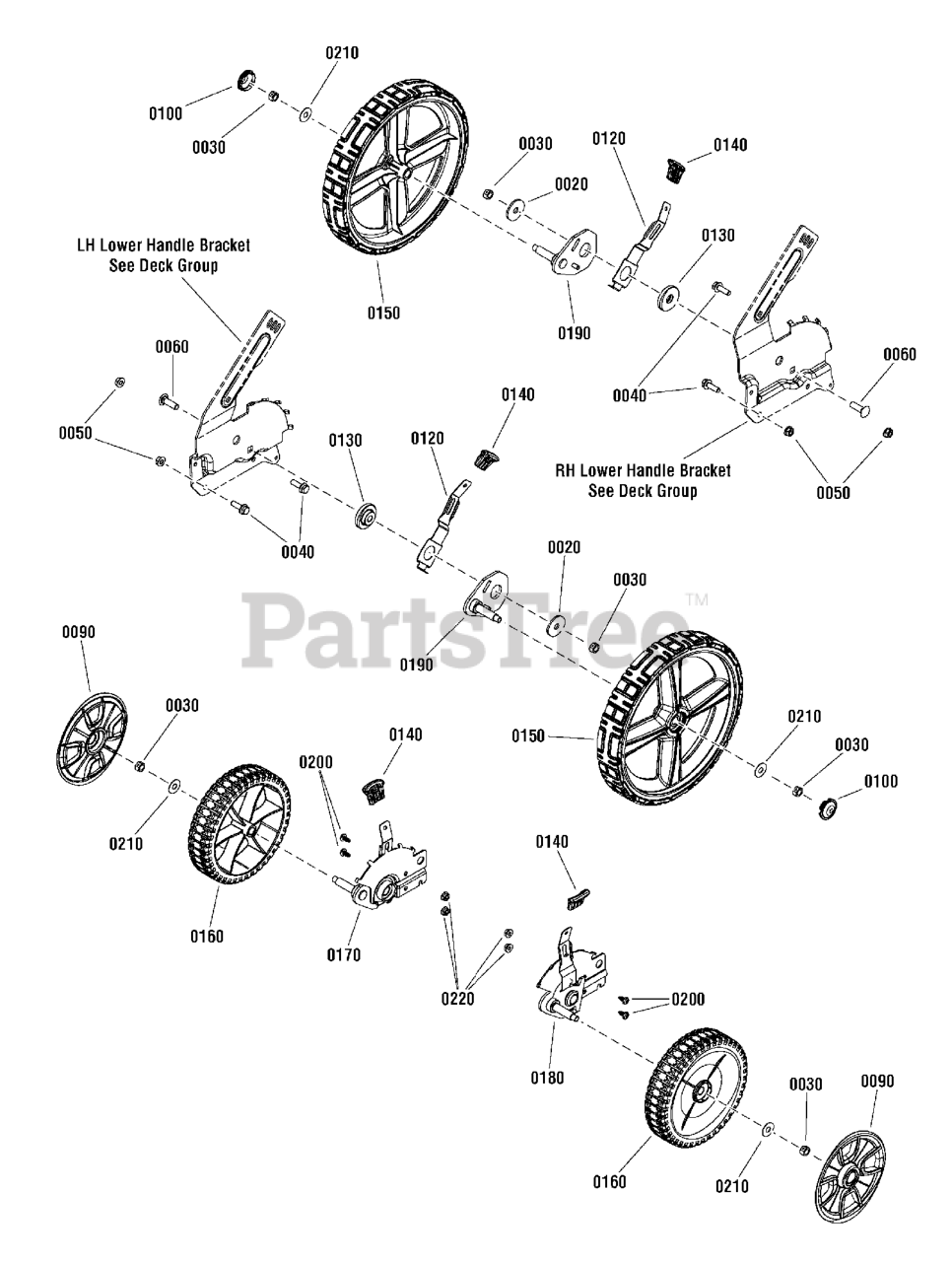

Wheel Group, Hi-Wheel, 4 Point HOC Parts Diagram

  • Title

0020

Murray 7091331SM

WASHER, .406 x 1.5 x .120 Flat, YZ
(Superseded to 703591)

$5.49

$

In Stock, Qty 15

0

0030

Murray 7091585SM

NUT, 3/8-16 Hex Center Lock, GR 5 YZ
(Superseded to 703347)

$4.99

$

In Stock, Qty 17

0

0040

Murray 7091591SM

BOLT, 5/16-18 x 1" Hex Flange Lock, GR 5
(Superseded to 703410)

$4.49

$

In Stock, Qty 8

0

0050

Murray 7091601SM

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0060

Murray 7091790YP

BOLT, 3/8-16 x 1-1/4 Round Head Square Neck, GR 5
(Superseded to 703130)

$3.99

$

In Stock, Qty 15

0

0090

Murray 7102507YP

HUBCAP, 8" & 9" Wheel Spoked, Cool Gray

$3.99

$

In Stock, Qty 15

0

0100

Murray 7101393YP

HUBCAP, 12" Wheel, Cool Gray, Pantone 6M

$4.49

$

Usually ships in 2-12 days

0

0120

Murray 7105156YP

LEVER, Front, Height-Of-Cut, 22"

$27.99

$

Usually ships in 2-12 days

0

0130

Murray 7103511YP

BUSHING, Pivot, High-Wheel, Rear

$5.49

$

Usually ships in 2-12 days

0

0140

Murray 7103793YP

GRIP, Height Latch, Black

$4.49

$

In Stock, Qty 9

0

0150

Murray 7104181YP

WHEEL, 12" x 2"
(Superseded to 7105710YP)

$79.99

$

In Stock, only 4 left!

0

0160

Murray 7103541YP

WHEEL, 8" x 2"

$40.99

$

Usually ships in 2-12 days

0

0170

Murray 7600189YP

ASSEMBLY, Height-Of-Cut, Right Front, Push

$26.99

$

Usually ships in 2-12 days

0

0180

Murray 7600190YP

ASSEMBLY, Height-Of-Cut, Left Front, Push

$35.99

$

Usually ships in 2-12 days

0

0190

Murray 7501639YP

ASSEMBLY, Wheel Bracket, Rear, Hi-Wheel

$

$

Not available

0200

Murray 7900067YP

SCREW, 1/4-20 x .550" Pan Head Self-Tap, Torx

$4.49

$

In Stock, Qty 20+

0

0210

Murray 17X169MA

WASHER, Flat, 3/8
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

0220

Murray 7091584SM

NUT, 1/4-20 Hex Flange Lock, YZ
(Superseded to 703233)

$4.49

$

In Stock, only 2 left!

0
