7800908 (CESPV 22675 FC) - Canadiana Elite 22" Walk-Behind Mower, Canada (2012) Deck Group, FWD, Wash Port Parts Diagram

Elite 22" Walk-Behind Mower, Canada

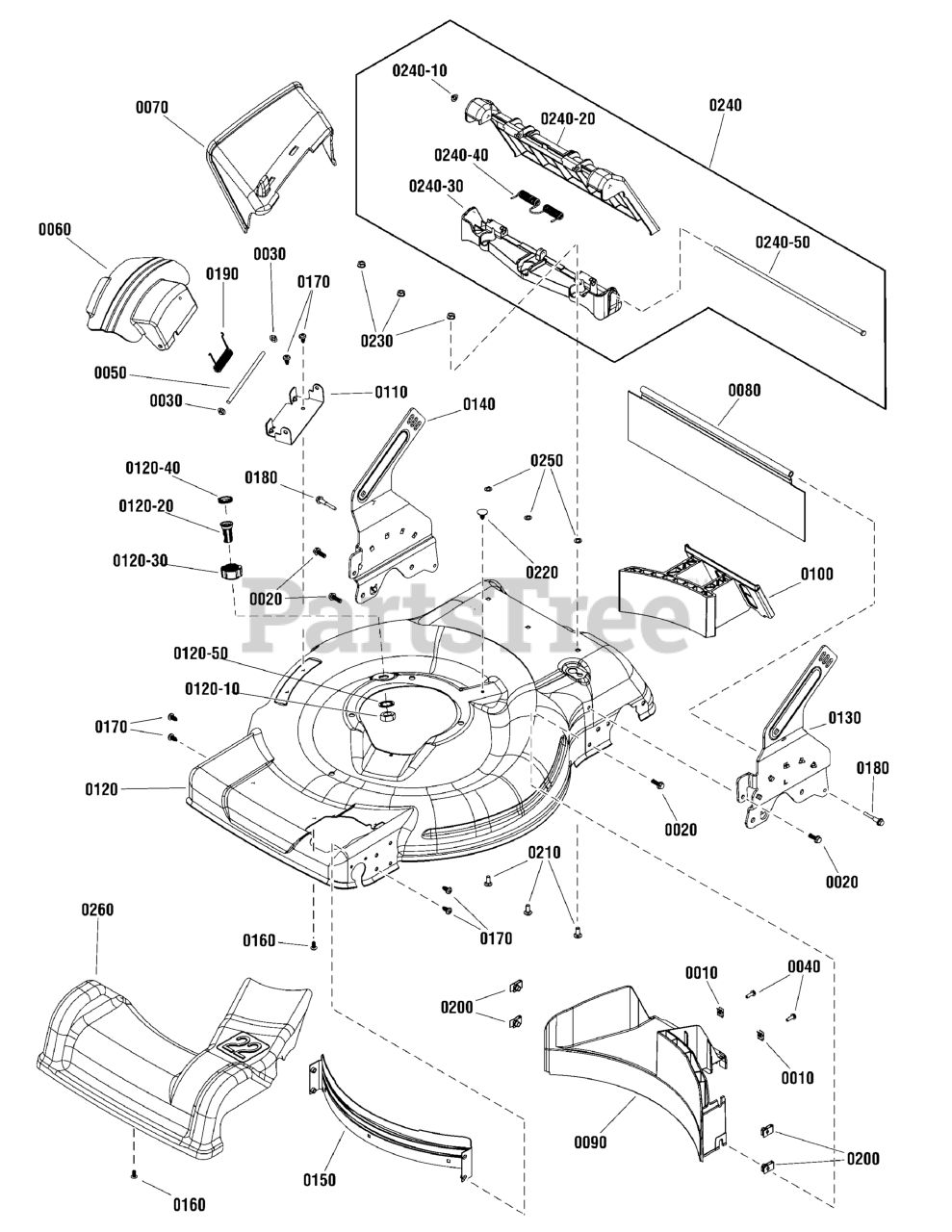

Deck Group, FWD, Wash Port Parts Diagram

  • Title

0010

Murray 1960593SM

NUT, Speed Retainer #10-24 w/Extrusion

$4.99

$

Usually ships in 2-12 days

0

0020

Murray 7090699YP

BOLT, 1/4-20 x 3/4" Hex Flange Lock, GR 5 ZP

$3.99

$

Usually ships in 2-12 days

0

0030

Murray 7091020YP

PUSH NUT, 1/4 BZ
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

0040

Murray 7091075SM

SCREW, #10-24 x 5/8" Hex Washer Self-Tap, GR 5 BZ

$4.49

$

In Stock, Qty 9

0

0050

Murray 7101067YP

ROD, Pivot, Clear Zinc

$6.99

$

Usually ships in 2-12 days

0

0060

Murray 7103298YP

COVER, Mulching

$

$

Not available

0070

Murray 7103299YP

CHUTE, Side Discharge, WBM, 22"

$35.99

$

In Stock, Qty 8

0

0080

Murray 7103323YP

GUARD, Rear, 22"

$9.49

$

In Stock, only 2 left!

0

0090

Murray 7103452YP

BAFFLE, Rear, Front Wheel Drive, WBM

$51.99

$

Usually ships in 2-12 days

0

0100

Murray 7103453YP

PLUG, Mulching, 22" Deck

$32.99

$

In Stock, Qty 7

0

0110

Murray 7300855BMYP

BRACKET, Chute

$9.99

$

Usually ships in 2-12 days

0

0120

Murray 7301188BRYP

DECK, 22" FWD, Washout

$199.99

$

Usually ships in 2-12 days

0

0120-10

Murray 1960716SM

NUT, 5/8-11 NC-2B Hex Jam, Black

$3.49

$

Usually ships in 2-12 days

0

0120-20

Murray 7103804YP

ADAPTOR, Washout Port, WBM

$6.49

$

Usually ships in 2-12 days

0

0120-30

Murray 7103919YP

COUPLING, Hose

$4.49

$

Usually ships in 2-12 days

0

0120-40

Murray 7103957YP

WASHER, Hose

$3.99

$

Usually ships in 2-12 days

0

0120-50

Murray 7090880YP

WASHER, 5/8 Internal Tooth Lock

$4.49

$

Usually ships in 2-12 days

0

0130

Murray 7301089AYP

BRACKET, Lower Handle, LH, 22 WBM

$21.99

$

Usually ships in 2-12 days

0

0140

Murray 7301088AYP

BRACKET, Lower Handle, RH, 22 WBM

$21.99

$

Usually ships in 2-12 days

0

0150

Murray 7301020YP

BAFFLE, Front, Galvanized

$50.99

$

Usually ships in 2-12 days

0

0160

Murray 7900018YP

SCREW, Round, Washer Head, Torx, 4.8 Hi-Lo Thread
(Superseded to 703834)

$4.49

$

In Stock, only 4 left!

0

0170

Murray 7900067YP

SCREW, 1/4-20 x .550" Pan Head Self-Tap, Torx

$4.49

$

In Stock, Qty 20+

0

0180

Murray 7900073YP

SHOULDER BOLT, 1/4 - 20 x 1-1/2"

$3.49

$

Usually ships in 2-12 days

0

0190

Murray 166X38MA

SPRING, Torsion

$4.99

$

In Stock, only 2 left!

0

0200

Murray 7023295SM

U-NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, only 4 left!

0

0210

Murray 7090803YP

BOLT, 1/4-20 x 5/8", Flat Head Square Neck, GR 5 BZ
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

0220

Murray 166X38MA

PLUG, Panel, .25 x .61 L, Black

$4.99

$

In Stock, only 2 left!

0

0230

Murray 15X143MA

NUT, 1/4-20 Flange Lock

$4.99

$

In Stock, only 4 left!

0

0240

Murray 7501541YP

ASSEMBLY, Door

$45.99

$

Usually ships in 2-12 days

0

0240-10

Murray 7091020YP

PUSH NUT, 1/4 BZ
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

0240-20

Murray 7103291YP

DOOR, Rear Discharge
(Superseded to 7501541YP)

$45.99

$

Usually ships in 2-12 days

0

0240-30

Murray 7103292YP

HINGE, Door, Rear Discharge

$19.99

$

Usually ships in 2-12 days

0

0240-40

Murray 7103309YP

SPRING, Torsion, Rear Door

$5.49

$

Usually ships in 2-12 days

0

0240-50

Murray 7103322YP

ROD, Pivot, Rear Door, Clear Zinc

$3.99

$

Usually ships in 2-12 days

0

0250

Murray 1960518SM

PUSH NUT, for .250 Dia Stud
(Superseded to 703826)

$3.49

$

In Stock, Qty 17

0

0260

Murray 7502993YP

ASSEMBLY, Belt Cover w/Heat Patch

$

$

Currently unavailable
