7800908 (CESPV 22675 FC) - Canadiana Elite 22" Walk-Behind Mower, Canada (2012) Wheels Group, 4 Point Height-Of-Cut Parts Diagram

Elite 22" Walk-Behind Mower, Canada

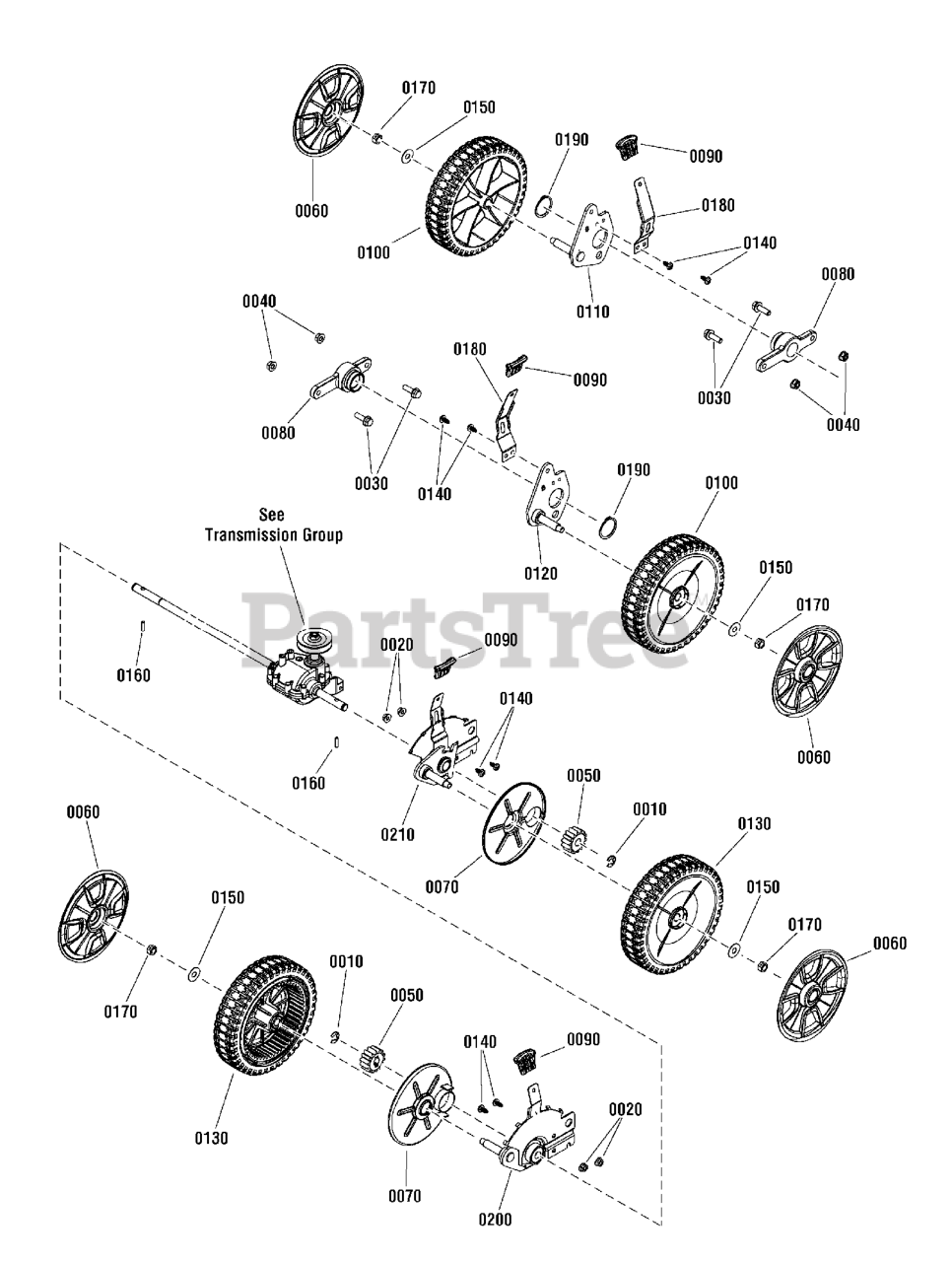

Wheels Group, 4 Point Height-Of-Cut Parts Diagram

  • Title

0010

Murray 7014341YP

RING, External Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

0020

Murray 7091584SM

NUT, 1/4-20 Hex Flange Lock, YZ
(Superseded to 703233)

$4.49

$

In Stock, Qty 10

0

0030

Murray 7091591SM

BOLT, 5/16-18 x 1" Hex Flange Lock, GR 5
(Superseded to 703410)

$4.49

$

In Stock, only 2 left!

0

0040

Murray 7091601SM

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

0050

Murray 7101207YP

GEAR, Pinion, 22" WBM, Front Wheel Drive

$8.99

$

In Stock, only 3 left!

0

0060

Murray 7102507YP

HUBCAP, 8" & 9" Wheel Spoked, Cool Gray

$3.99

$

In Stock, Qty 15

0

0070

Murray 7101402YP

DUST SHIELD, 22" Walk-Behind-Mower, FWD

$7.99

$

In Stock, only 2 left!

0

0080

Murray 7103290YP

HOLDER, Bearing

$14.99

$

Usually ships in 2-12 days

0

0090

Murray 7103793YP

GRIP, Height Latch, Black

$4.49

$

In Stock, Qty 20+

0

0100

Murray 7103541YP

WHEEL, 8" X 2" Idle

$41.99

$

Usually ships in 2-12 days

0

0110

Murray 7501516YP

ASSEMBLY, Rear Axle, RH

$13.99

$

Usually ships in 2-12 days

0

0120

Murray 7501518YP

ASSEMBLY, Rear Axle, LH

$14.99

$

Usually ships in 2-12 days

0

0130

Murray 7103500YP

WHEEL, 8" x 2" Drive

$34.99

$

In Stock, Qty 8

0

0140

Murray 7900067YP

SCREW, 1/4-20 x .550" Pan Head Self-Tap, Torx

$4.49

$

In Stock, Qty 18

0

0150

Murray 17X169MA

WASHER, Flat, 3/8
(Superseded to 703966)

$4.49

$

In Stock, Qty 6

0

0160

Murray 7101270YP

PIN, Drive, 22" WBM, FWD

$5.49

$

Usually ships in 2-12 days

0

0170

Murray 7091585SM

NUT, 3/8-16 Hex Center Lock, GR 5 YZ
(Superseded to 703347)

$4.99

$

In Stock, Qty 11

0

0180

Murray 7103550YP

LEVER, Rear, 4 Point Height-of-Cut

$8.99

$

Usually ships in 2-12 days

0

0190

Murray 7900010YP

SNAP RING, 1-3/8, HD (TruArc# 5100-137)

$4.49

$

In Stock, only 1 left!

0

0200

Murray 7600104YP

ASSEMBLY, Height-Of-Cut, RF, 22" WBM, Propelled

$

$

Not available

0210

Murray 7600105YP

ASSEMBLY, Height-Of-Cut, LF, 22" WBM, Propelled

$87.99

$

Usually ships in 2-12 days

0
