7800909 (CESPV 22675 FC) - Canadiana 22" Walk-Behind Mower, Canada (2012) Wheels Group, RWD, Single Point Height-Of-Cut Parts Diagram

22" Walk-Behind Mower, Canada

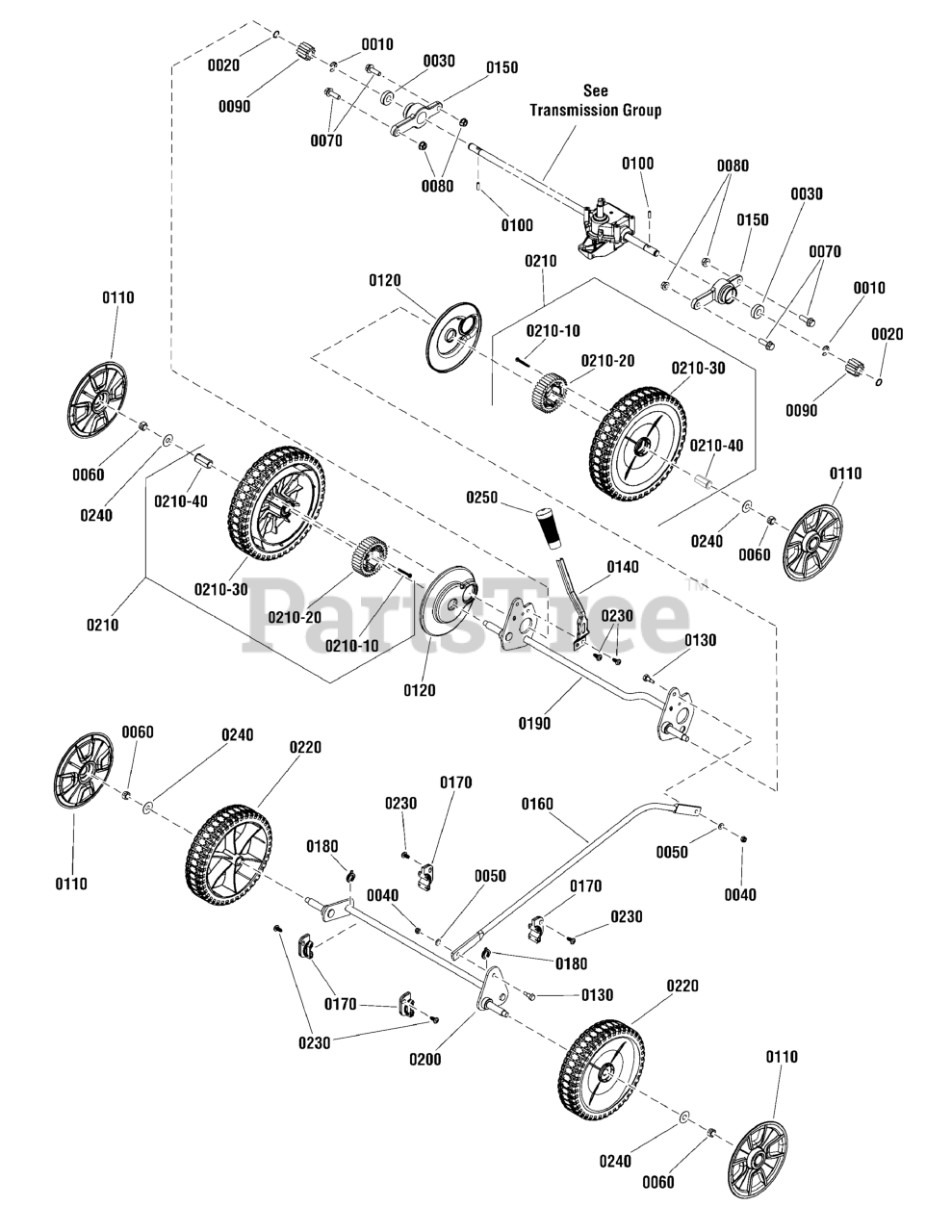

Wheels Group, RWD, Single Point Height-Of-Cut Parts Diagram

  • Title

0010

Murray 7014341YP

RING, External Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

0020

Murray 7027999YP

RETAINING RING

$4.49

$

In Stock, Qty 7

0

0030

Murray 7078243YP

BEARING, Ball

$10.99

$

In Stock, only 4 left!

0

0040

Murray 7091290SM

NUT, #10-24 Hex Lock (Nyloc)
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

0050

Murray 7091552SM

WASHER, .219 x 1/2" x .049 Flat

$3.99

$

In Stock, only 4 left!

0

0060

Murray 7091585SM

NUT, 3/8-16 Hex Center Lock, GR 5 YZ
(Superseded to 703347)

$4.99

$

In Stock, Qty 17

0

0070

Murray 7091591SM

BOLT, 5/16-18 x 1" Hex Flange Lock, GR 5
(Superseded to 703410)

$4.49

$

In Stock, Qty 8

0

0080

Murray 7091601SM

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0090

Murray 7100820YP

GEAR, Pinion

$6.49

$

Usually ships in 2-12 days

0

0100

Murray 7100861YP

PIN, Axle

$4.99

$

In Stock, only 1 left!

0

0110

Murray 7102507YP

HUBCAP, 8" & 9" Wheel Spoked, Cool Gray

$3.99

$

In Stock, Qty 15

0

0120

Murray 7101367YP

SHIELD, Dust, 21" Walk Behind Mower, RD

$7.49

$

In Stock, only 2 left!

0

0130

Murray 7101774YP

SHOULDER BOLT, #10-24

$8.49

$

In Stock, only 4 left!

0

0140

Murray 7103289YP

LEVER, Spring, Height-Of-Cut

$11.99

$

In Stock, Qty 5

0

0150

Murray 7103290YP

HOLDER, Bearing, RWD

$13.99

$

Usually ships in 2-12 days

0

0160

Murray 7103306BRYP

ROD, Lifter Link, WBM
(Superseded to 7103306BMYP)

$40.99

$

Usually ships in 2-12 days

0

0170

Murray 7104518YP

BUSHING, Bearing, Rear Wheel Drive

$4.49

$

In Stock, Qty 15

0

0180

Murray 7104525YP

SPACER, Shaft, 1/2"

$4.49

$

In Stock, only 1 left!

0

0190

Murray 7400259YP

WELDMENT, Rear Crossbar, RWD

$152.99

$

In Stock, only 1 left!

0

0200

Murray 7400306YP

WELDMENT, Front Axle

$60.99

$

In Stock, only 3 left!

0

0210

Murray 7502603YP

WHEEL ASSEMBLY, 9 x 2, External Gear

Note: (Incl. Ref. No. 0210-10, 0210-20, 0210-30 & 0210-40)

$49.99

$

Usually ships in 2-12 days

0

0210-10

Murray 7091196SM

SCREW, #8 x 1-1/4" Hex Washer Self-Tap, Hi-Lo Thread

Note: (Included with Ref. No. 0210)

$4.99

$

Usually ships in 2-12 days

0

0210-20

Murray 7100914YP

GEAR, External Wheel

Note: (Included with Ref. No. 0210)

$10.99

$

In Stock, only 2 left!

0

0210-30

Murray 7502543YP

WHEEL ASSEMBLY, 9 x 2

Note: (Included with Ref. No. 0210)

$50.99

$

In Stock, only 1 left!

0

0210-40

Murray 7073618YP

WHEEL BUSHING

Note: (Included with Ref. No. 0210)

$7.99

$

Usually ships in 2-12 days

0

0220

Murray 7103541YP

WHEEL ASSEMBLY, 8 x 2

$40.99

$

Usually ships in 2-12 days

0

0230

Murray 7900067YP

SCREW, 1/4-20 x .550 Pan Head Torx (T-30)

$4.49

$

In Stock, Qty 20+

0

0240

Murray 17X169MA

WASHER, Flat, 3/8
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

0250

Murray 671297MA

GRIP, Height-Of-Cut

$6.49

$

In Stock, only 1 left!

0
