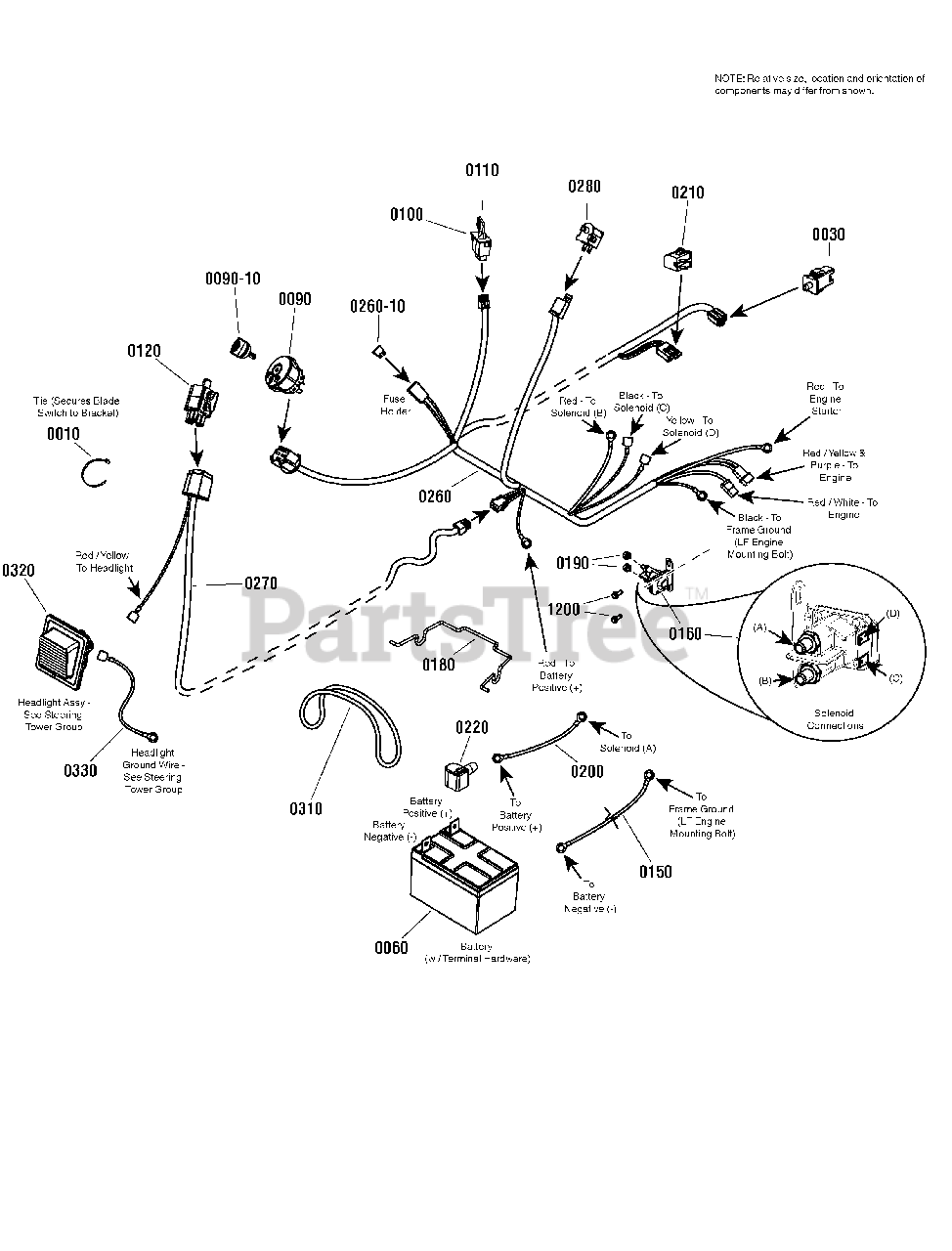

7800933 - Simplicity Coronet 33" Rear-Engine Riding Mower, 14.5hp Electrical Group (7503082) Parts Diagram

Coronet 33" Rear-Engine Riding Mower, 14.5hp

Electrical Group (7503082) Parts Diagram

  • Title

0010

Simplicity 703586

TIE, 7, Self Locking

$4.99

$

Usually ships in 2-12 days

0

0030

Simplicity 7022886YP

SWITCH, DP, NO/NC, Snap-In

$15.99

$

In Stock, Qty 20+

0

0060

Simplicity 7600188YP

BATTERY, 12V 20HR, 190CCA

$132.99

$

In Stock, only 2 left!

0

0090

Simplicity 1737959YP

SWITCH, Ignition (Trombetta)
(Superseded to 7600215YP)

$67.99

$

In Stock, only 2 left!

0

0090-10

Simplicity 1750464YP

KEY, Ignition Switch, Trombetta Snap-in Switch (Blister Pack contains 2 keys)

$23.99

$

Usually ships in 2-12 days

0

0100

Simplicity 1726556SM

SWITCH, Reverse Mow Option Module (Without Key)
(Superseded to 1761897YP)

$30.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1726557SM

KEY, RMO Module (Yellow Plastic)

$5.49

$

Usually ships in 2-12 days

0

0120

Simplicity 1751449YP

SWITCH, Plunger, Snap In (NO/NC/NC)

$26.99

$

In Stock, only 4 left!

0

0150

Simplicity 7100636SM

CABLE, Battery, 8 Gauge, Black, 20, 1/4 & 5/16 Terminals

$9.49

$

Usually ships in 2-12 days

0

0160

Simplicity 1755381YP

SOLENOID, 12V, L-Bracket, 2-Spade

$24.99

$

In Stock, Qty 20+

0

0180

Simplicity 7105788YP

BRACE, Battery

$11.99

$

In Stock, only 1 left!

0

0190

Simplicity 2860750SM

NUT, 5/16-24 Hex Lock, Keps, YZ

$2.99

$

Usually ships in 2-12 days

0

0200

Simplicity 7105876YP

WIRE, Positive, 8GA X 10, Red

$10.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1732004SM

SWITCH, Push Button, (NO, Black)

$9.49

$

In Stock, Qty 9

0

0220

Simplicity 7105082YP

BOOT, Insulator

$5.49

$

Usually ships in 2-12 days

0

0260

Simplicity 7105846YP

HARNESS, Wire, 14.5 HP RER

$106.99

$

Usually ships in 2-12 days

0

0260-10

Simplicity 7023653YP

FUSE, 20 Amp

$3.49

$

Usually ships in 2-12 days

0

0270

Simplicity 7105697YP

HARNESS, Solenoid, 41"

$44.99

$

Usually ships in 2-12 days

0

0280

Simplicity 7023354YP

SWITCH, Seat, Push Button (NC - Gray)

$12.99

$

In Stock, Qty 20+

0

0310

Simplicity 1665872SM

STRAP, Rubber Battery, .19 SQ, 7.88 OD, Black

$11.99

$

In Stock, only 4 left!

0

0320

Simplicity 7105923YP

ASSEMBLY, Head Light

$73.99

$

Usually ships in 2-12 days

0

0320-30

* LAMP, 12VAC 25-30 Lumen LED (1156 Socket)

$

$

Not available

0330

Simplicity 7106051YP

WIRE, RER Head Light Ground

$6.49

$

Usually ships in 2-12 days

0

1200

Simplicity 703054

SCREW, 1/4-20 x 5/8, Hex Washer Head, Thread Roll, Zinc/Clear

$4.49

$

In Stock, Qty 11
